Description

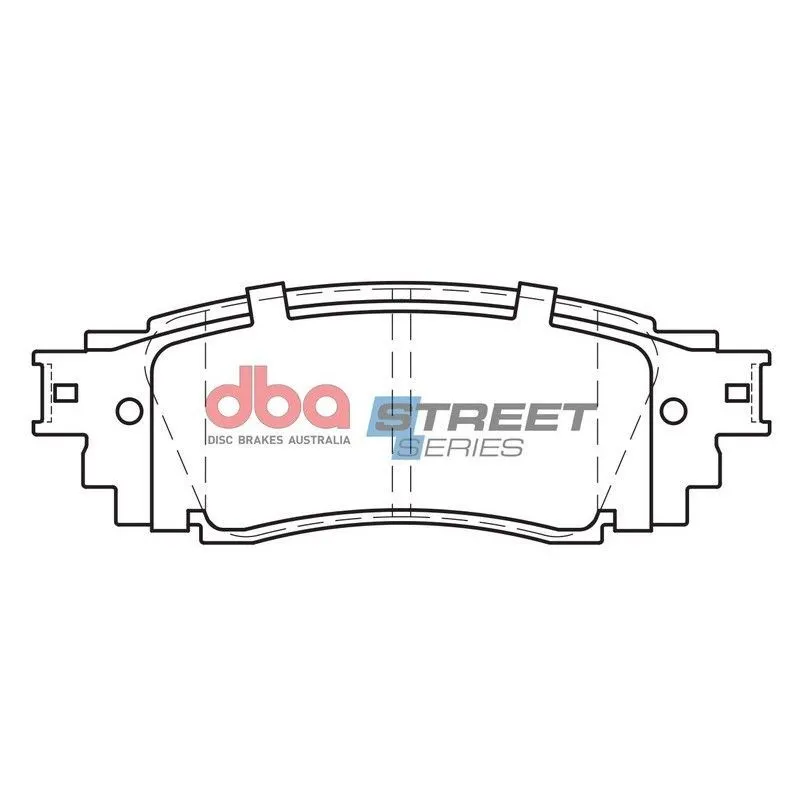

The DB2469SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
4 Pads121.142.813.9

Specifications

Brake Type:Disc Brake
Length 1 [mm]:121,1
Thickness 1 [mm]:13,9
Width 1 [mm]:42,8

Compatibility

  • 2014 - 2017 > LEXUS > NX > Petrol Engine 200t (AGZ10R) _Z1_ SUV 175KW
  • 2014 - 2017 > LEXUS > NX > Petrol Engine 200t AWD (AGZ15R) _Z1_ SUV 175KW
  • 2017 - 2021 > LEXUS > NX > Petrol Engine 300 AWD (AGZ15R) _Z1_ SUV 175KW
  • 2017 - 2021 > LEXUS > NX > Petrol Engine 300 (AGZ10R) _Z1_ SUV 175KW
  • 2015 - 2017 > LEXUS > RX > Petrol Engine 200t (AGL20R, AGL20_) _L2_ SUV 175KW
  • 2015 - 2022 > LEXUS > RX > Full Hybrid 450h AWD (GYL25R, GYL26R) _L2_ SUV 230KW
  • 2015 - 2022 > LEXUS > RX > Petrol Engine 350 4WD (GGL25R, GGL26R) _L2_ SUV 221KW
  • 2017 - 2022 > LEXUS > RX > Petrol Engine 300 (AGL20R) _L2_ SUV 175KW
  • 2017 - 2022 > LEXUS > RX > Petrol Engine 350L 4WD (GGL25, GGL26) _L2_ SUV 216KW
  • 2018 - 2025 > LEXUS > UX > Petrol Engine 200 (MZAA10) _AA1_,_AH1_,_MA1_ SUV 126KW
  • 2018 - 2025 > LEXUS > UX > Full Hybrid 250h E-Four (MZAH15) _AA1_,_AH1_,_MA1_ SUV 131KW
  • 2018 - 2025 > LEXUS > UX > Full Hybrid 250h (MZAH10) _AA1_,_AH1_,_MA1_ SUV 131KW
  • 2024 - 2025 > LEXUS > UX > Full Hybrid 300h E-Four (MZAH16) _AA1_,_AH1_,_MA1_ SUV 146KW
  • 2018 - 2025 > LEXUS > ES > Full Hybrid 300h (AXZH10, AXZH11) _Z10_,_A10_,_H10_ Sedan 160KW
  • 2017 - 2023 > TOYOTA > C-HR > Petrol Engine 1.2 (NGX10R) _X1_ SUV 85KW
  • 2017 - 2023 > TOYOTA > C-HR > Petrol Engine 1.2 4WD (NGX50R) _X1_ SUV 85KW
  • 2016 - 2023 > TOYOTA > C-HR > Full Hybrid 1.8 Hybrid (ZYX10R, ZYX11R) _X1_ SUV 90KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Full Hybrid 2.5 Hybrid (AYH30W) _H3_ MPV 112KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Petrol Engine 3.5 All-wheel Drive (GGH35W) _H3_ MPV 206KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Petrol Engine 2.5 (AGH30W) _H3_ MPV 134KW
  • 2017 - 2021 > TOYOTA > CAMRY > Petrol Engine 2.5 (ASV70R) _V7_,_VA7_,_VH7_ Sedan 133KW
  • 2017 - 2024 > TOYOTA > CAMRY > Full Hybrid 2.5 Hybrid (AXVH71R) _V7_,_VA7_,_VH7_ Sedan 160KW
  • 2018 - 2021 > TOYOTA > CAMRY > Petrol Engine 3.5 (GSV70R) _V7_,_VA7_,_VH7_ Sedan 224KW
  • 2021 - 2024 > TOYOTA > CAMRY > Petrol Engine 2.5 _V7_,_VA7_,_VH7_ Sedan 152KW
  • 2017 - 2021 > TOYOTA > CAMRY > Petrol Engine 2.5 (ASV70R) _V7_,_VA7_,_VH7_ Sedan 135KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Full Hybrid 2.5 Hybrid (AXAH52) _A5_,_H5_ SUV 160KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Petrol Engine 2.0 VVTi (MXAA52) _A5_,_H5_ SUV 127KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Petrol Engine 2.5 VVTi AWD (AXAA54) _A5_,_H5_ SUV 152KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Full Hybrid 2.5 Hybrid AWD (AXAH54, AXAL54) _A5_,_H5_ SUV 163KW
  • 2022 - 2025 > TOYOTA > COROLLA CROSS > Full Hybrid 2.0 VVTi Hybrid AWD (MXGH15) ZVG1_,ZSG1_,MXGH1_,MXGA1_ SUV 144KW
  • 2021 - 2025 > TOYOTA > COROLLA CROSS > Petrol Engine 2.0 (MXGA10) ZVG1_,ZSG1_,MXGH1_,MXGA1_ SUV 126KW

The DB2469SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
4 Pads121.142.813.9
Brake Type:Disc Brake
Length 1 [mm]:121,1
Thickness 1 [mm]:13,9
Width 1 [mm]:42,8
  • 2014 - 2017 > LEXUS > NX > Petrol Engine 200t (AGZ10R) _Z1_ SUV 175KW
  • 2014 - 2017 > LEXUS > NX > Petrol Engine 200t AWD (AGZ15R) _Z1_ SUV 175KW
  • 2017 - 2021 > LEXUS > NX > Petrol Engine 300 AWD (AGZ15R) _Z1_ SUV 175KW
  • 2017 - 2021 > LEXUS > NX > Petrol Engine 300 (AGZ10R) _Z1_ SUV 175KW
  • 2015 - 2017 > LEXUS > RX > Petrol Engine 200t (AGL20R, AGL20_) _L2_ SUV 175KW
  • 2015 - 2022 > LEXUS > RX > Full Hybrid 450h AWD (GYL25R, GYL26R) _L2_ SUV 230KW
  • 2015 - 2022 > LEXUS > RX > Petrol Engine 350 4WD (GGL25R, GGL26R) _L2_ SUV 221KW
  • 2017 - 2022 > LEXUS > RX > Petrol Engine 300 (AGL20R) _L2_ SUV 175KW
  • 2017 - 2022 > LEXUS > RX > Petrol Engine 350L 4WD (GGL25, GGL26) _L2_ SUV 216KW
  • 2018 - 2025 > LEXUS > UX > Petrol Engine 200 (MZAA10) _AA1_,_AH1_,_MA1_ SUV 126KW
  • 2018 - 2025 > LEXUS > UX > Full Hybrid 250h E-Four (MZAH15) _AA1_,_AH1_,_MA1_ SUV 131KW
  • 2018 - 2025 > LEXUS > UX > Full Hybrid 250h (MZAH10) _AA1_,_AH1_,_MA1_ SUV 131KW
  • 2024 - 2025 > LEXUS > UX > Full Hybrid 300h E-Four (MZAH16) _AA1_,_AH1_,_MA1_ SUV 146KW
  • 2018 - 2025 > LEXUS > ES > Full Hybrid 300h (AXZH10, AXZH11) _Z10_,_A10_,_H10_ Sedan 160KW
  • 2017 - 2023 > TOYOTA > C-HR > Petrol Engine 1.2 (NGX10R) _X1_ SUV 85KW
  • 2017 - 2023 > TOYOTA > C-HR > Petrol Engine 1.2 4WD (NGX50R) _X1_ SUV 85KW
  • 2016 - 2023 > TOYOTA > C-HR > Full Hybrid 1.8 Hybrid (ZYX10R, ZYX11R) _X1_ SUV 90KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Full Hybrid 2.5 Hybrid (AYH30W) _H3_ MPV 112KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Petrol Engine 3.5 All-wheel Drive (GGH35W) _H3_ MPV 206KW
  • 2015 - 2023 > TOYOTA > ALPHARD / VELLFIRE > Petrol Engine 2.5 (AGH30W) _H3_ MPV 134KW
  • 2017 - 2021 > TOYOTA > CAMRY > Petrol Engine 2.5 (ASV70R) _V7_,_VA7_,_VH7_ Sedan 133KW
  • 2017 - 2024 > TOYOTA > CAMRY > Full Hybrid 2.5 Hybrid (AXVH71R) _V7_,_VA7_,_VH7_ Sedan 160KW
  • 2018 - 2021 > TOYOTA > CAMRY > Petrol Engine 3.5 (GSV70R) _V7_,_VA7_,_VH7_ Sedan 224KW
  • 2021 - 2024 > TOYOTA > CAMRY > Petrol Engine 2.5 _V7_,_VA7_,_VH7_ Sedan 152KW
  • 2017 - 2021 > TOYOTA > CAMRY > Petrol Engine 2.5 (ASV70R) _V7_,_VA7_,_VH7_ Sedan 135KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Full Hybrid 2.5 Hybrid (AXAH52) _A5_,_H5_ SUV 160KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Petrol Engine 2.0 VVTi (MXAA52) _A5_,_H5_ SUV 127KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Petrol Engine 2.5 VVTi AWD (AXAA54) _A5_,_H5_ SUV 152KW
  • 2018 - 2025 > TOYOTA > RAV 4 > Full Hybrid 2.5 Hybrid AWD (AXAH54, AXAL54) _A5_,_H5_ SUV 163KW
  • 2022 - 2025 > TOYOTA > COROLLA CROSS > Full Hybrid 2.0 VVTi Hybrid AWD (MXGH15) ZVG1_,ZSG1_,MXGH1_,MXGA1_ SUV 144KW
  • 2021 - 2025 > TOYOTA > COROLLA CROSS > Petrol Engine 2.0 (MXGA10) ZVG1_,ZSG1_,MXGH1_,MXGA1_ SUV 126KW
