Description

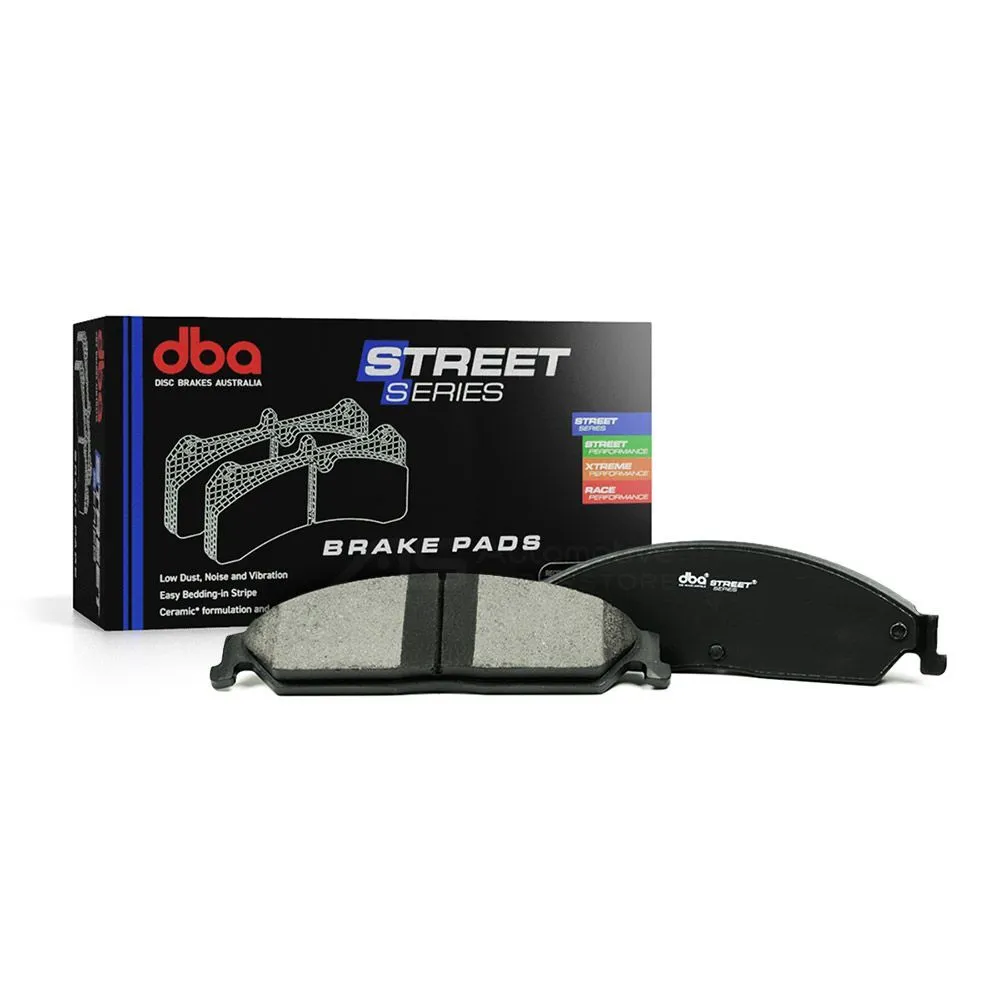

The DB2330SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors

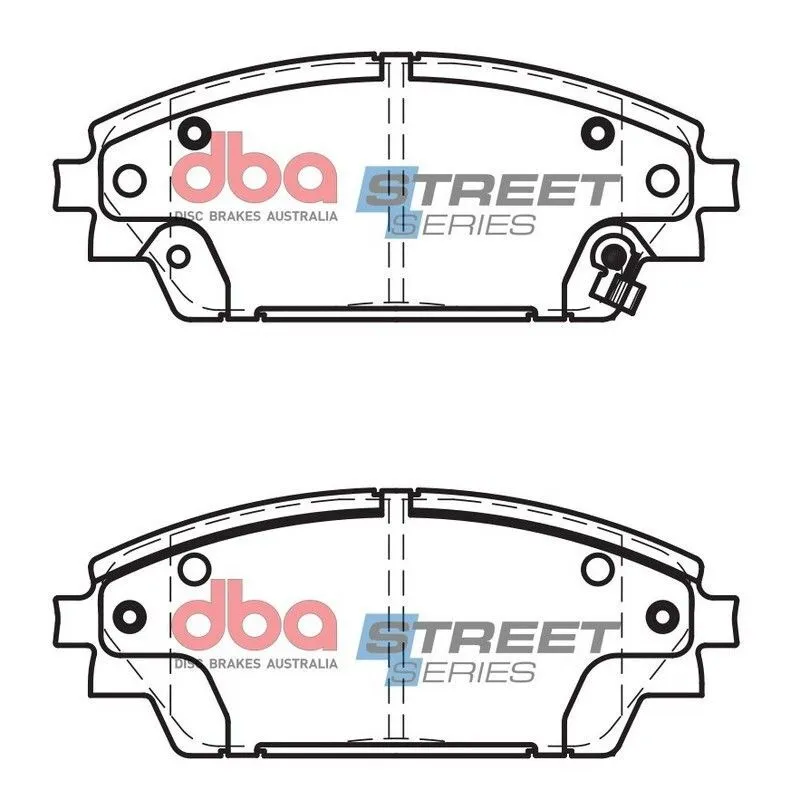

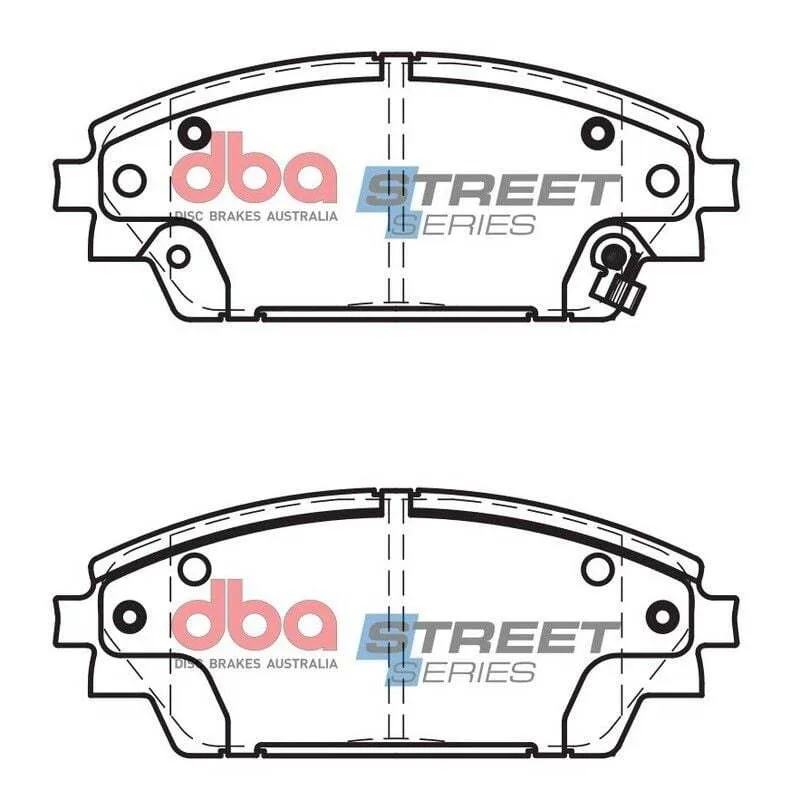

Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads141.955.315.5

Specifications

Brake Type:Disc Brake
Length 1 [mm]:141,9
Thickness 1 [mm]:15,5
Width 1 [mm]:55,3

Compatibility

  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BM543, BN543) BM,BN Hatchback 138KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.0 (BMEFS, BM547, BN547) BM,BN Hatchback 114KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.0 (BMEFP, BM527, BN527) BM_,BN_ Sedan 114KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BM523, BN523) BM_,BN_ Sedan 138KW
  • 2014 - 2019 > MAZDA > 3 > Diesel 2.2 D (BM2FS, BM542) BM,BN Hatchback 129KW
  • 2014 - 2019 > MAZDA > 3 > Full Hybrid 2.0 Hybrid (BYEFP) BM_,BN_ Sedan 100KW
  • 2015 - 2018 > MAZDA > CX-3 > Diesel 1.5 SKYACTIV-D (DK2WS, DK5FW) DK SUV 77KW
  • 2015 - 2025 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G AWD (DK4W7, DKEAW) DK SUV 110KW
  • 2015 - 2018 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G (DK2W7, DKEFW) DK SUV 109KW
  • 2015 - 2018 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G AWD (DK4W7, DKEAW) DK SUV 109KW
  • 2018 - 2019 > MAZDA > CX-3 > Diesel 1.8 SKYACTIV-D AWD (DK2WS) DK SUV 85KW
  • 2018 - 2019 > MAZDA > CX-3 > Diesel 1.8 SKYACTIV-D (DK4WS) DK SUV 85KW
  • 2018 - 2025 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G (DK2W7, DKEFW) DK SUV 110KW

The DB2330SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads141.955.315.5
Brake Type:Disc Brake
Length 1 [mm]:141,9
Thickness 1 [mm]:15,5
Width 1 [mm]:55,3
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BM543, BN543) BM,BN Hatchback 138KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.0 (BMEFS, BM547, BN547) BM,BN Hatchback 114KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.0 (BMEFP, BM527, BN527) BM_,BN_ Sedan 114KW
  • 2013 - 2019 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BM523, BN523) BM_,BN_ Sedan 138KW
  • 2014 - 2019 > MAZDA > 3 > Diesel 2.2 D (BM2FS, BM542) BM,BN Hatchback 129KW
  • 2014 - 2019 > MAZDA > 3 > Full Hybrid 2.0 Hybrid (BYEFP) BM_,BN_ Sedan 100KW
  • 2015 - 2018 > MAZDA > CX-3 > Diesel 1.5 SKYACTIV-D (DK2WS, DK5FW) DK SUV 77KW
  • 2015 - 2025 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G AWD (DK4W7, DKEAW) DK SUV 110KW
  • 2015 - 2018 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G (DK2W7, DKEFW) DK SUV 109KW
  • 2015 - 2018 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G AWD (DK4W7, DKEAW) DK SUV 109KW
  • 2018 - 2019 > MAZDA > CX-3 > Diesel 1.8 SKYACTIV-D AWD (DK2WS) DK SUV 85KW
  • 2018 - 2019 > MAZDA > CX-3 > Diesel 1.8 SKYACTIV-D (DK4WS) DK SUV 85KW
  • 2018 - 2025 > MAZDA > CX-3 > Petrol Engine 2.0 SKYACTIV-G (DK2W7, DKEFW) DK SUV 110KW
