Description

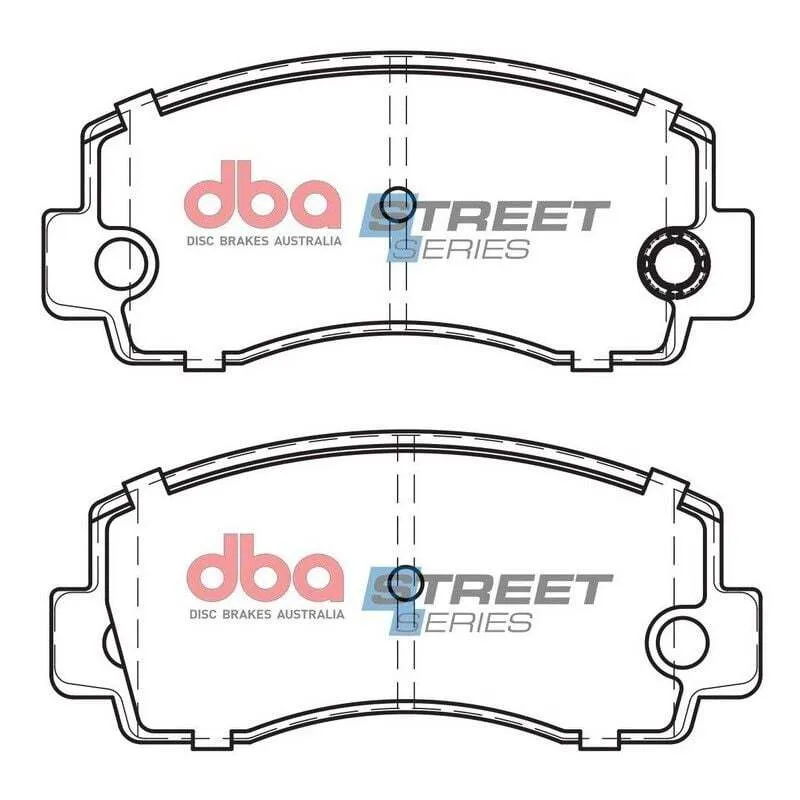

The DB170SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads128.156.214.6

Specifications

Brake Type:Disc Brake
Length 1 [mm]:128,1
Thickness 1 [mm]:14,6
Width 1 [mm]:56,2

Compatibility

  • 1983 - 1986 > MITSUBISHI > PAJERO > Diesel 2.3 TD All-wheel Drive (L043G, L048G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1986 - 1989 > MITSUBISHI > PAJERO > Diesel 2.5 TD 4WD (L049G, L149G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1983 - 1987 > MITSUBISHI > PAJERO > Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 76KW
  • 1986 - 1991 > MITSUBISHI > PAJERO > Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 79KW
  • 1982 - 1986 > MITSUBISHI > L200 Express > Diesel 2.3 D 4WD MA,MB,MC,MD Ute 50KW
  • 1982 - 1984 > MITSUBISHI > L200 Express > Diesel 2.3 D MA,MB,MC,MD Ute 50KW
  • 1981 - 1982 > MITSUBISHI > L200 Express > Petrol Engine 2.0 MA,MB,MC,MD Ute 66KW
  • 1980 - 1982 > MITSUBISHI > L200 Express > Petrol Engine 2.0 4WD MA,MB,MC,MD Ute 66KW
  • 1982 - 1984 > MITSUBISHI > L200 Express > Petrol Engine MC MC Ute
  • 1984 - 1986 > MITSUBISHI > L200 Express > Petrol Engine MD MD Ute
  • 1982 - 1982 > MITSUBISHI > SIGMA SCORPION > Petrol Engine 2.6 GK Coupe 78KW
  • 1973 - 1977 > TOYOTA > CELICA > Petrol Engine 2.0 (RA28, RA23) _A2_ Coupe 72KW
  • 1977 - 1981 > TOYOTA > CELICA > Petrol Engine 2.0 LT (RA40) _A4_ Coupe 66KW

The DB170SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads128.156.214.6
Brake Type:Disc Brake
Length 1 [mm]:128,1
Thickness 1 [mm]:14,6
Width 1 [mm]:56,2
  • 1983 - 1986 > MITSUBISHI > PAJERO > Diesel 2.3 TD All-wheel Drive (L043G, L048G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1986 - 1989 > MITSUBISHI > PAJERO > Diesel 2.5 TD 4WD (L049G, L149G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1983 - 1987 > MITSUBISHI > PAJERO > Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 76KW
  • 1986 - 1991 > MITSUBISHI > PAJERO > Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 79KW
  • 1982 - 1986 > MITSUBISHI > L200 Express > Diesel 2.3 D 4WD MA,MB,MC,MD Ute 50KW
  • 1982 - 1984 > MITSUBISHI > L200 Express > Diesel 2.3 D MA,MB,MC,MD Ute 50KW
  • 1981 - 1982 > MITSUBISHI > L200 Express > Petrol Engine 2.0 MA,MB,MC,MD Ute 66KW
  • 1980 - 1982 > MITSUBISHI > L200 Express > Petrol Engine 2.0 4WD MA,MB,MC,MD Ute 66KW
  • 1982 - 1984 > MITSUBISHI > L200 Express > Petrol Engine MC MC Ute
  • 1984 - 1986 > MITSUBISHI > L200 Express > Petrol Engine MD MD Ute
  • 1982 - 1982 > MITSUBISHI > SIGMA SCORPION > Petrol Engine 2.6 GK Coupe 78KW
  • 1973 - 1977 > TOYOTA > CELICA > Petrol Engine 2.0 (RA28, RA23) _A2_ Coupe 72KW
  • 1977 - 1981 > TOYOTA > CELICA > Petrol Engine 2.0 LT (RA40) _A4_ Coupe 66KW
