Description

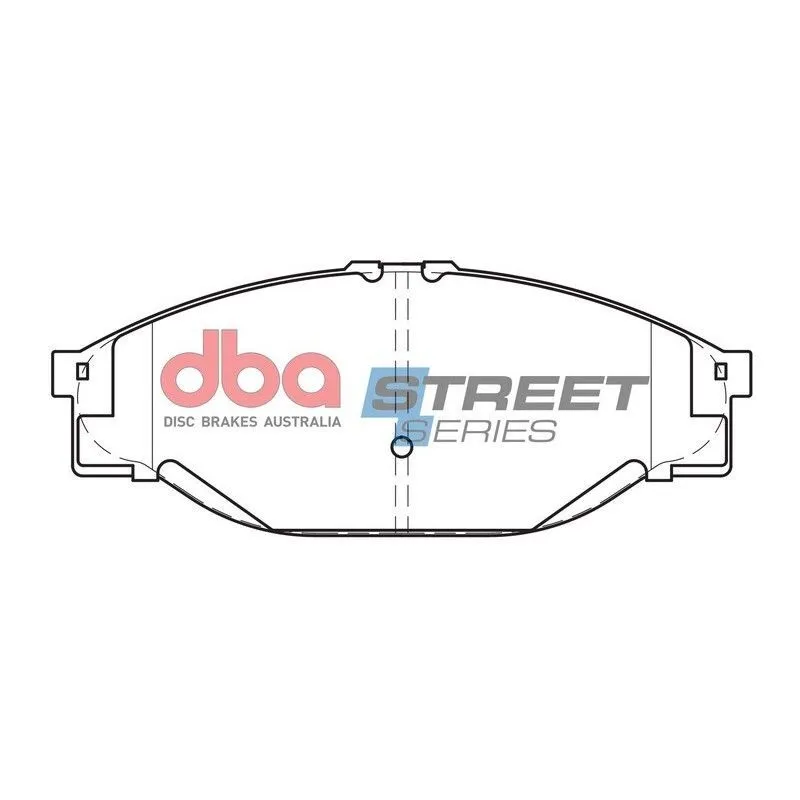

The DB1205SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
4 Pads1405514.9

Specifications

Brake Type:Disc Brake
Length 1 [mm]:140
Thickness 1 [mm]:14,9
Width 1 [mm]:55

Compatibility

  • 2009 - 2010 > GREAT WALL > SA220 > Petrol Engine 2.2 Ute 78KW
  • 1985 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) H5G Bus 65KW
  • 1989 - 2003 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH183, RZH113, RZH115) _H1_ Bus 88KW
  • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 2.0 (RH32) RH25-32 Van 65KW
  • 1979 - 1983 > TOYOTA > HIACE > Diesel 2.2 D (LH20, LH30) _H11,_H2_,_H3_,_H4_ Van 49KW
  • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 1.6 (RH30) RH20-30 Van 49KW
  • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) _H5_,_H6_,_H7_,_H8_,_H9_ Van 65KW
  • 1998 - 2004 > TOYOTA > HIACE > Diesel 3.0 D (LH174) LH18 Bus 65KW
  • 1998 - 2005 > TOYOTA > HIACE > Diesel 3.0 D (LH162, LH172, LH182) LH16,LH17 Van 65KW
  • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH73) _H5_,_H6_,_H7_,_H8_,_H9_ Bus 69KW
  • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH53, YH63) _H5_,_H6_,_H7_,_H8_,_H9_ Van 69KW
  • 1989 - 2000 > TOYOTA > HIACE > Diesel 2.8 D (LH105, LH125) _H1_ Bus 61KW
  • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH125) _H1_ Bus 85KW
  • 1989 - 2000 > TOYOTA > HIACE > Diesel 2.8 D (LH105, LH103, LH113) LH10,LN11 Van 61KW
  • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 1.8 (YH50, YH60) _H5_,_H6_,_H7_,_H8_,_H9_ Van 58KW
  • 1983 - 1989 > TOYOTA > HIACE > Diesel 2.4 D (LH61, LH51) LH5,LH6,LH7 Van 55KW
  • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH103, RZH113) _H1_ Van 85KW
  • 1989 - 1998 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103, RZH113) _H1_ Van 85KW
  • 1995 - 2003 > TOYOTA > HIACE SBV > Petrol Engine 2.4 SBV (RCH12, RCH22) __H1_,__H2_ Van 85KW
  • 1995 - 2004 > TOYOTA > HIACE SBV > Petrol Engine 2.4 (RZH10) RCH12,RCH22 Van 88KW
  • 2001 - 2005 > TOYOTA > HILUX > Petrol Engine 3.4 EFI 4WD (VZN167, VZN172) _N1_ Ute 131KW
  • 2000 - 2005 > TOYOTA > HILUX > Diesel 3.0 D (LN147, LN152) _N1_ Ute 71KW
  • 1998 - 2005 > TOYOTA > HILUX > Diesel 3.0 D 4WD (LN167, LN172) _N1_ Ute 71KW
  • 1999 - 2005 > TOYOTA > HILUX > Diesel 3.0 TDi 4WD (KZN165) _N1_ Ute 85KW

The DB1205SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
4 Pads1405514.9
Brake Type:Disc Brake
Length 1 [mm]:140
Thickness 1 [mm]:14,9
Width 1 [mm]:55
  • 2009 - 2010 > GREAT WALL > SA220 > Petrol Engine 2.2 Ute 78KW
  • 1985 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) H5G Bus 65KW
  • 1989 - 2003 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH183, RZH113, RZH115) _H1_ Bus 88KW
  • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 2.0 (RH32) RH25-32 Van 65KW
  • 1979 - 1983 > TOYOTA > HIACE > Diesel 2.2 D (LH20, LH30) _H11,_H2_,_H3_,_H4_ Van 49KW
  • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 1.6 (RH30) RH20-30 Van 49KW
  • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) _H5_,_H6_,_H7_,_H8_,_H9_ Van 65KW
  • 1998 - 2004 > TOYOTA > HIACE > Diesel 3.0 D (LH174) LH18 Bus 65KW
  • 1998 - 2005 > TOYOTA > HIACE > Diesel 3.0 D (LH162, LH172, LH182) LH16,LH17 Van 65KW
  • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH73) _H5_,_H6_,_H7_,_H8_,_H9_ Bus 69KW
  • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH53, YH63) _H5_,_H6_,_H7_,_H8_,_H9_ Van 69KW
  • 1989 - 2000 > TOYOTA > HIACE > Diesel 2.8 D (LH105, LH125) _H1_ Bus 61KW
  • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH125) _H1_ Bus 85KW
  • 1989 - 2000 > TOYOTA > HIACE > Diesel 2.8 D (LH105, LH103, LH113) LH10,LN11 Van 61KW
  • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 1.8 (YH50, YH60) _H5_,_H6_,_H7_,_H8_,_H9_ Van 58KW
  • 1983 - 1989 > TOYOTA > HIACE > Diesel 2.4 D (LH61, LH51) LH5,LH6,LH7 Van 55KW
  • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH103, RZH113) _H1_ Van 85KW
  • 1989 - 1998 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103, RZH113) _H1_ Van 85KW
  • 1995 - 2003 > TOYOTA > HIACE SBV > Petrol Engine 2.4 SBV (RCH12, RCH22) __H1_,__H2_ Van 85KW
  • 1995 - 2004 > TOYOTA > HIACE SBV > Petrol Engine 2.4 (RZH10) RCH12,RCH22 Van 88KW
  • 2001 - 2005 > TOYOTA > HILUX > Petrol Engine 3.4 EFI 4WD (VZN167, VZN172) _N1_ Ute 131KW
  • 2000 - 2005 > TOYOTA > HILUX > Diesel 3.0 D (LN147, LN152) _N1_ Ute 71KW
  • 1998 - 2005 > TOYOTA > HILUX > Diesel 3.0 D 4WD (LN167, LN172) _N1_ Ute 71KW
  • 1999 - 2005 > TOYOTA > HILUX > Diesel 3.0 TDi 4WD (KZN165) _N1_ Ute 85KW
