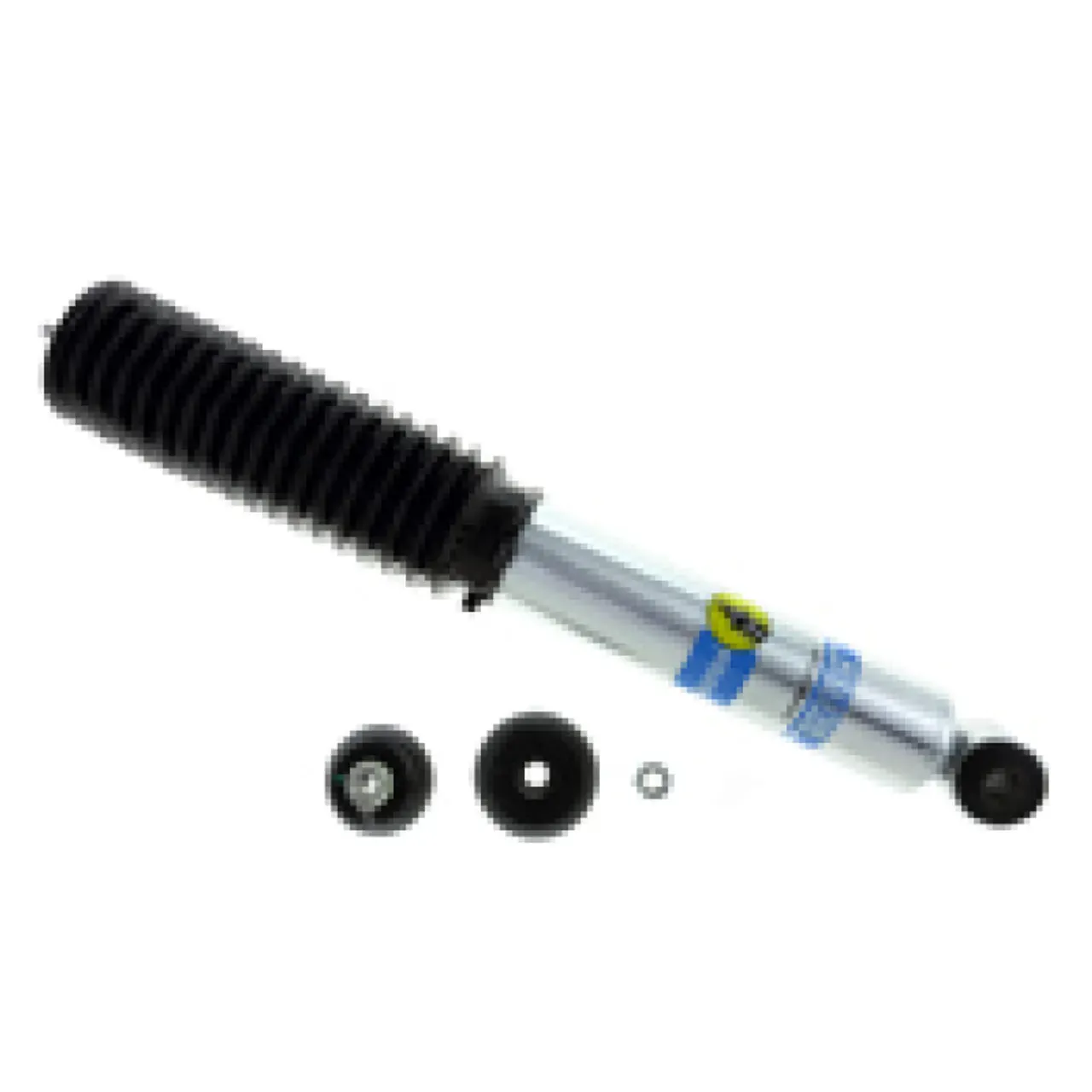

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Front - GM Fullsize SUV / Truck 1999-2010 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Extended Length (MM): 400.2

Collapsed Length (IN): 11.30

Finish: Zinc Plated

Stroke/Travel Length (mm): 113.3

Adjustable Damping: Non-Adjustable

Collapsed Length (MM): 287.0

Reservoir: No

Piston Diameter: 46mm

Shaft Diameter: 11mm

Segment: Light Truck

Extended Length (IN): 15.76

Stroke/Travel Length (IN): 4.46

Lower Mount Type: Eye 14.1mm

Upper Mount Type: Stem

Internal Design: Monotube

Series: B8 5100

PartType: Shocks / Struts

Spring Seat Included: No

Boot Included: Black Bellows

Body Design: Smooth Body (Non-Coilover)
