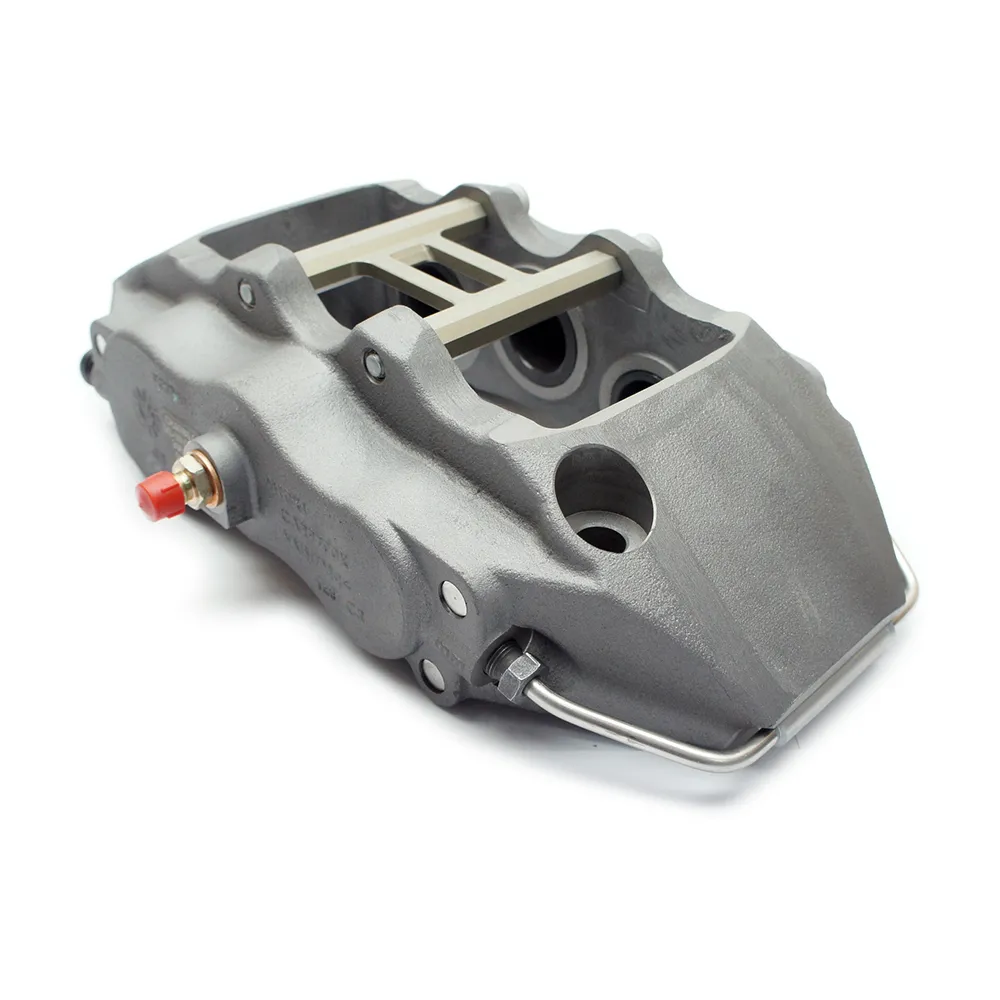

Description

Key features and benefits

  • Radial mount for maximum rigidity and firm,
  • Consistent pedal Differential piston diameters to minimise pad taper wear
  • Aluminium pistons as standard
  • Stainless steel pistons available as an option to reduce heat transfer to brake fluid
  • 2kg anti-knock back springs
  • Hard stainless steel wear plates
  • Hard stainless steel pad support and abutment pins
  • Fixed pad retainer bars to increase stiffness, remove caliper to change pads

Specifications

Specifications:

  • Disc diameter range Ø343 – 380mm
  • Disc thickness range 30 – 32mm
  • Fluid inlet 3/8-24 UNF (-3) male
  • Dry weight 3,50kg excluding pads Alcon pad reference 4497
  • 18mm thick, 152mm long, 50.8mm deep
  • area 148cm2 per calliper

Compatibility

  • Universal Part

Key features and benefits

  • Radial mount for maximum rigidity and firm,
  • Consistent pedal Differential piston diameters to minimise pad taper wear
  • Aluminium pistons as standard
  • Stainless steel pistons available as an option to reduce heat transfer to brake fluid
  • 2kg anti-knock back springs
  • Hard stainless steel wear plates
  • Hard stainless steel pad support and abutment pins
  • Fixed pad retainer bars to increase stiffness, remove caliper to change pads

Specifications:

  • Disc diameter range Ø343 – 380mm
  • Disc thickness range 30 – 32mm
  • Fluid inlet 3/8-24 UNF (-3) male
  • Dry weight 3,50kg excluding pads Alcon pad reference 4497
  • 18mm thick, 152mm long, 50.8mm deep
  • area 148cm2 per calliper
  • Universal Part
