Description

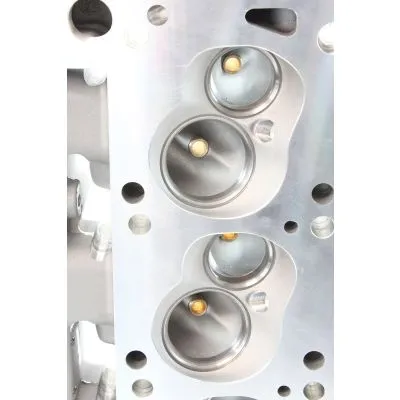

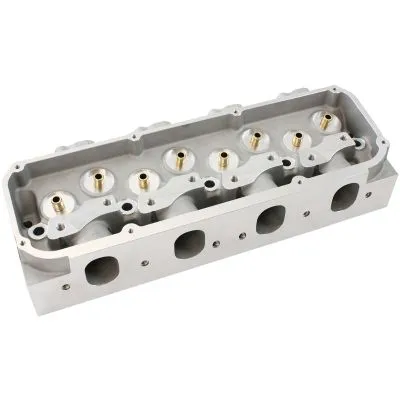

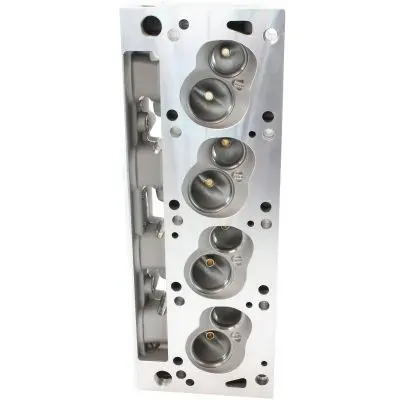

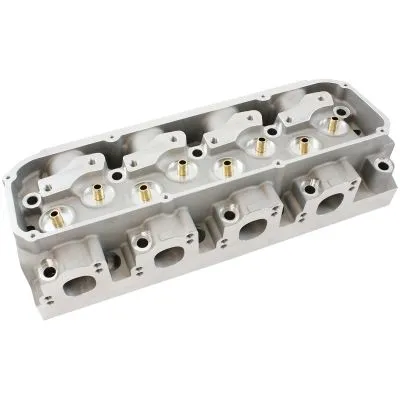

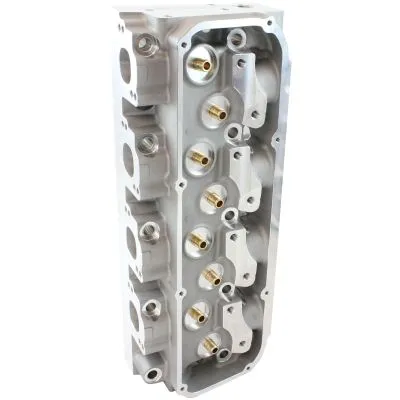

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These Ford Cleveland cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price.
These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. Diamond-honed bronze guides and hand bowl blending to help outperform some of the best brands in the business.

Specifications

Head Specifications

Material: A356 Aluminium
Chamber:  64cc
Intake Port Volume: 235cc
Intake Port Dimension: 2.05" x 1.60"
Exhaust Port Volume:  125cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust Port Location:  Raised .080"
Spark Plug Location:  OEM
Intake Valve Diameter: 2.100"
Intake Valve Length: 5.275"
Intake Valve Tip: 0.250"
Exhaust Valve Diameter: 1.65"
Exhaust Valve Length: 5.060"
Intake Valve Tip: 0.250"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.570"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530 Valve Stem Seal
Rocker Stud Thread Size: 7/16" x 14
Valve Angle:¬†10¬?
Deck Thickness:  .750"

Compatibility

  • Ford 302-351 Cleveland

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These Ford Cleveland cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price.
These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. Diamond-honed bronze guides and hand bowl blending to help outperform some of the best brands in the business.

Head Specifications

Material: A356 Aluminium
Chamber:  64cc
Intake Port Volume: 235cc
Intake Port Dimension: 2.05" x 1.60"
Exhaust Port Volume:  125cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust Port Location:  Raised .080"
Spark Plug Location:  OEM
Intake Valve Diameter: 2.100"
Intake Valve Length: 5.275"
Intake Valve Tip: 0.250"
Exhaust Valve Diameter: 1.65"
Exhaust Valve Length: 5.060"
Intake Valve Tip: 0.250"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.570"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530 Valve Stem Seal
Rocker Stud Thread Size: 7/16" x 14
Valve Angle:¬†10¬?
Deck Thickness:  .750"
  • Ford 302-351 Cleveland
