Description

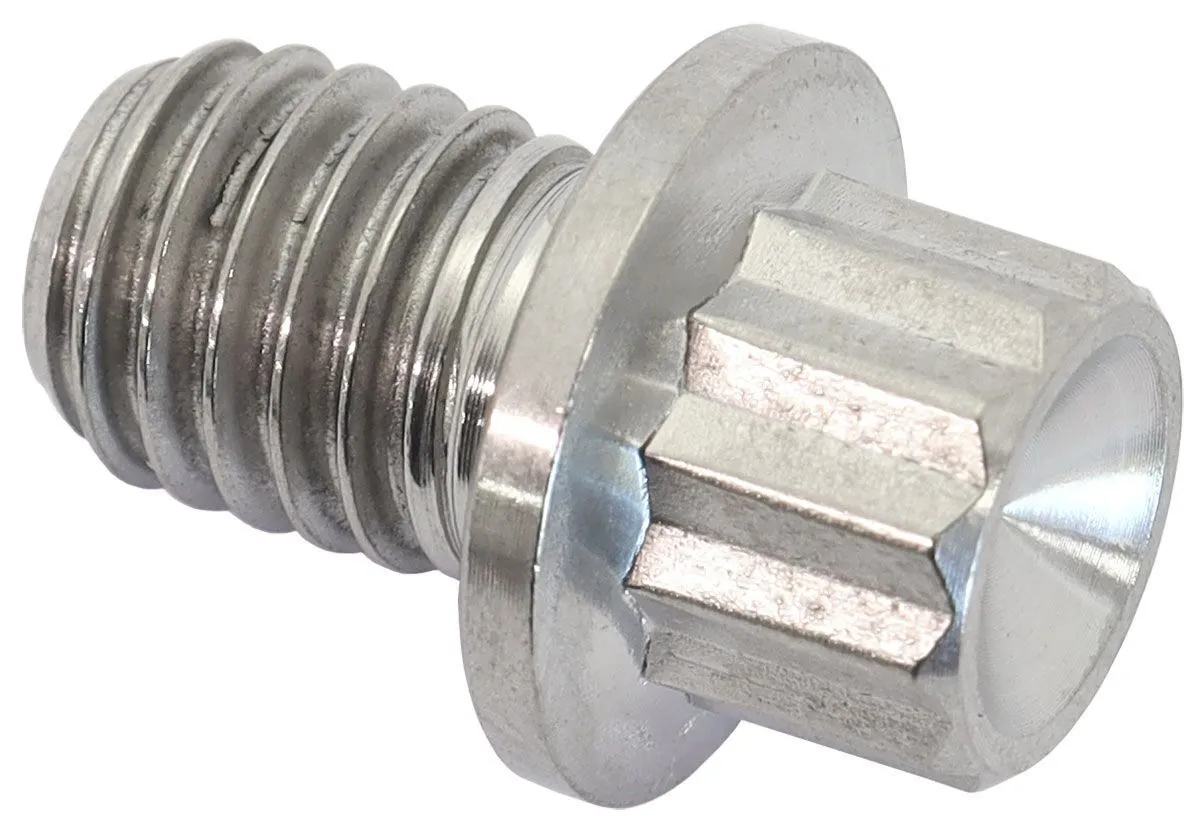

Aeroflow Performance Titanium 12 Point Head bolts, studs and nuts are machined from 6AL-4V grade 5 Titanium and the small head design is ideal when fitting into a recess or tight areas to give maximum clearance. These titanium bolts are the favoured material for a fastener due to the attractive property of being a low-density metal, which has a higher tensile strength than many other materials, even in higher temperatures. Given this strength, titanium is remarkably light. When compared to steel in a strength-to-weight ratio, titanium is far superior, as it is as strong as steel but 45% lighter. In fact, titanium has the highest strength-to-weight ratio of all known metals. The pairing of their high strength to weight ratio, excellent resistance to stress corrosion cracking, high corrosion resistance and good fatigue strength make it the best choice to have in your race car. Each bolt is sold individually and available in a variety of threads and lengths to choose from.

Specifications

BOOSTED 7375 T4 Turbocharger Specifications
  • Recommended horsepower rating: 475-1200HP
  • Recommended engine displacement: 2.0L to 7.0L
  • Dual ceramic ball bearing
  • Point Milled 7075 billet compressor wheel
  • Ported shroud compressor cover
  • Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
  • 1/8" NPT boost reference port
  • External wastegate sold separately
  • Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
  • T4 twin entry turbine inlet flange
  • 9 blade turbine wheel
  • SiMo-nodular cast iron rear housing
  • V-Band turbine outlet flange
  • M14 x 1.5mm coolant port thread
  • 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
  • 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
  • Compressor Specifications

  • Inducer: 73mm
  • Exducer: 91mm
  • Extended Tip: 96mm
  • A/R: 0.90
  • Compressor Inlet: 4" Slip fit
  • Compressor Outlet: 3" Slip fit
  • Turbine Specifications

  • Inducer: 82mm
  • Exducer: 75mm
  • A/R: 1.01
  • Turbine Inlet Flange: T4
  • Turbine Outlet Flange: V-Band (AF8080-1020)
  • Wastegate

  • External wastegate
  • Compatibility

    • Universal Part

    Aeroflow Performance Titanium 12 Point Head bolts, studs and nuts are machined from 6AL-4V grade 5 Titanium and the small head design is ideal when fitting into a recess or tight areas to give maximum clearance. These titanium bolts are the favoured material for a fastener due to the attractive property of being a low-density metal, which has a higher tensile strength than many other materials, even in higher temperatures. Given this strength, titanium is remarkably light. When compared to steel in a strength-to-weight ratio, titanium is far superior, as it is as strong as steel but 45% lighter. In fact, titanium has the highest strength-to-weight ratio of all known metals. The pairing of their high strength to weight ratio, excellent resistance to stress corrosion cracking, high corrosion resistance and good fatigue strength make it the best choice to have in your race car. Each bolt is sold individually and available in a variety of threads and lengths to choose from.

    BOOSTED 7375 T4 Turbocharger Specifications
  • Recommended horsepower rating: 475-1200HP
  • Recommended engine displacement: 2.0L to 7.0L
  • Dual ceramic ball bearing
  • Point Milled 7075 billet compressor wheel
  • Ported shroud compressor cover
  • Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
  • 1/8" NPT boost reference port
  • External wastegate sold separately
  • Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
  • T4 twin entry turbine inlet flange
  • 9 blade turbine wheel
  • SiMo-nodular cast iron rear housing
  • V-Band turbine outlet flange
  • M14 x 1.5mm coolant port thread
  • 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
  • 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
  • Compressor Specifications

  • Inducer: 73mm
  • Exducer: 91mm
  • Extended Tip: 96mm
  • A/R: 0.90
  • Compressor Inlet: 4" Slip fit
  • Compressor Outlet: 3" Slip fit
  • Turbine Specifications

  • Inducer: 82mm
  • Exducer: 75mm
  • A/R: 1.01
  • Turbine Inlet Flange: T4
  • Turbine Outlet Flange: V-Band (AF8080-1020)
  • Wastegate

  • External wastegate
    • Universal Part
