Description

At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

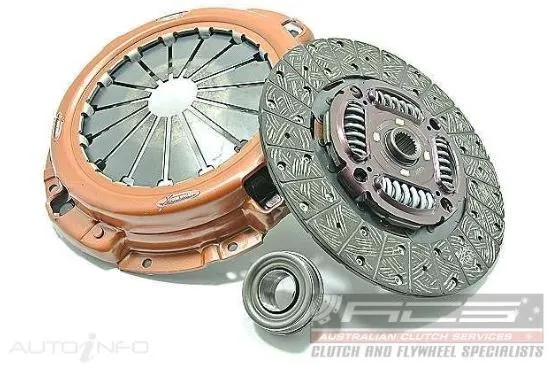

The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications

  • Flywheel Step: Flat
  • Clutch Disc Diameter: 275mm
  • Clutch Disc Spline Count: 23
  • Clutch Disc Spline Diameter: 26.3mm
  • Clutch Disc Type: Sprung Organic
  • Stage 1 Torque (Nm/ftlbs) INC FOS: 380 / 280
  • Clamp Load % Increase: 10.0%
  • Weight: 12kg

Compatibility

  • MITSUBISHI TRITON GLX ML (2 Door Cab Chassis) 2006-2009 3.2LM41T L4 16V DOHC
  • MITSUBISHI TRITON GLX, GLX-R/VR ML (4 Door Wellside) 2008-2009 3.2L 4M41T L4 16V DOHC
  • MITSUBISHI TRITON GLX, GLX-R/VR, GLS, ML (4 Door Wellside) 2006-2008 3.2L 4M41T L4 DOHC

At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

  • Flywheel Step: Flat
  • Clutch Disc Diameter: 275mm
  • Clutch Disc Spline Count: 23
  • Clutch Disc Spline Diameter: 26.3mm
  • Clutch Disc Type: Sprung Organic
  • Stage 1 Torque (Nm/ftlbs) INC FOS: 380 / 280
  • Clamp Load % Increase: 10.0%
  • Weight: 12kg
  • MITSUBISHI TRITON GLX ML (2 Door Cab Chassis) 2006-2009 3.2LM41T L4 16V DOHC
  • MITSUBISHI TRITON GLX, GLX-R/VR ML (4 Door Wellside) 2008-2009 3.2L 4M41T L4 16V DOHC
  • MITSUBISHI TRITON GLX, GLX-R/VR, GLS, ML (4 Door Wellside) 2006-2008 3.2L 4M41T L4 DOHC
