Description

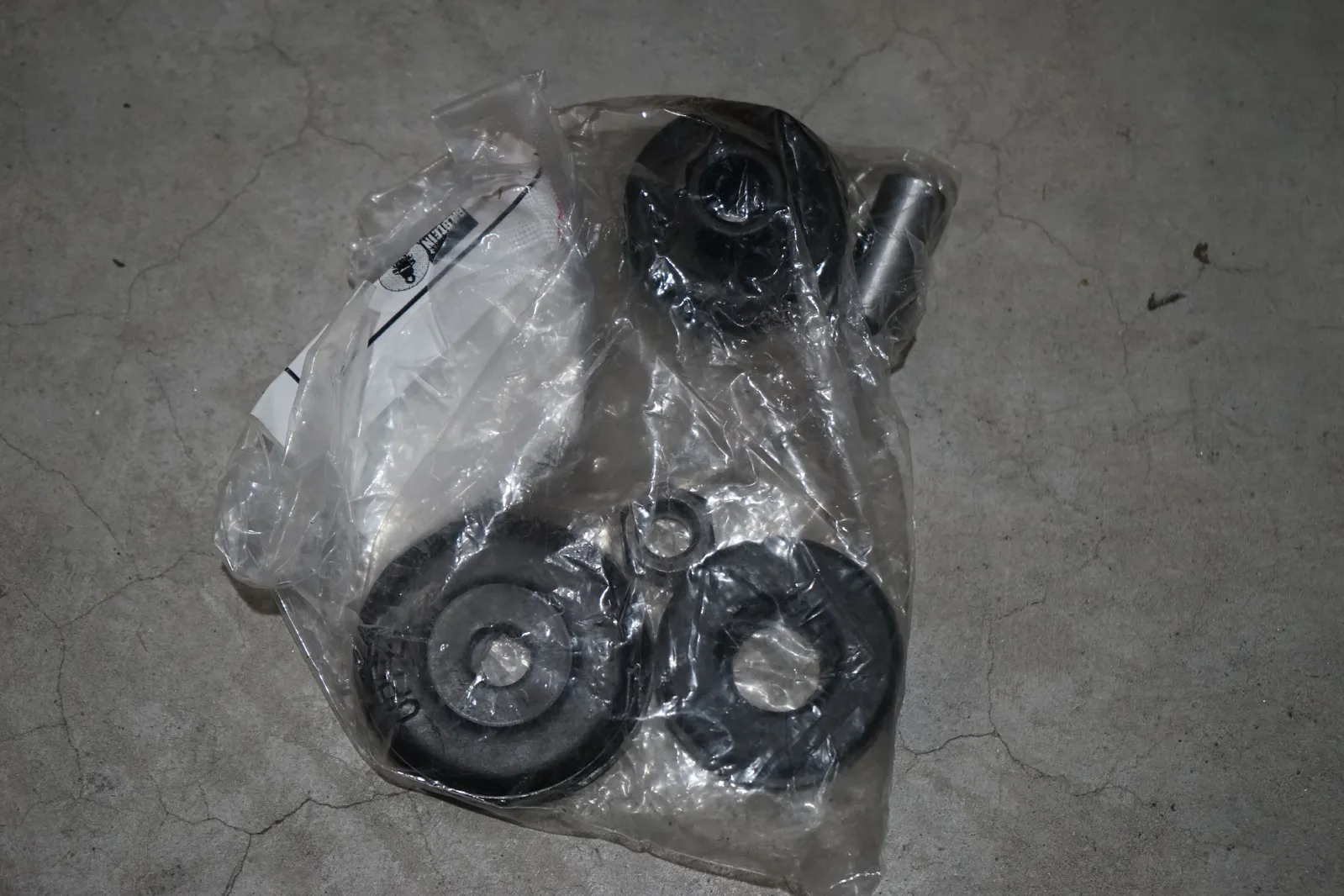

*SCRATCH AND DENT CLEARANCE ITEM* - please choose carefully when selecting any items in scratch and dent clearance as these items are blemished or opened items that are being sold as is where is at a discounted price. Most have minor cosmetic issues or could be missing basic hardware for installation which would need to be sourced. Scratch and dent items are not eligible for return once purchased so choose carefully before purchase.

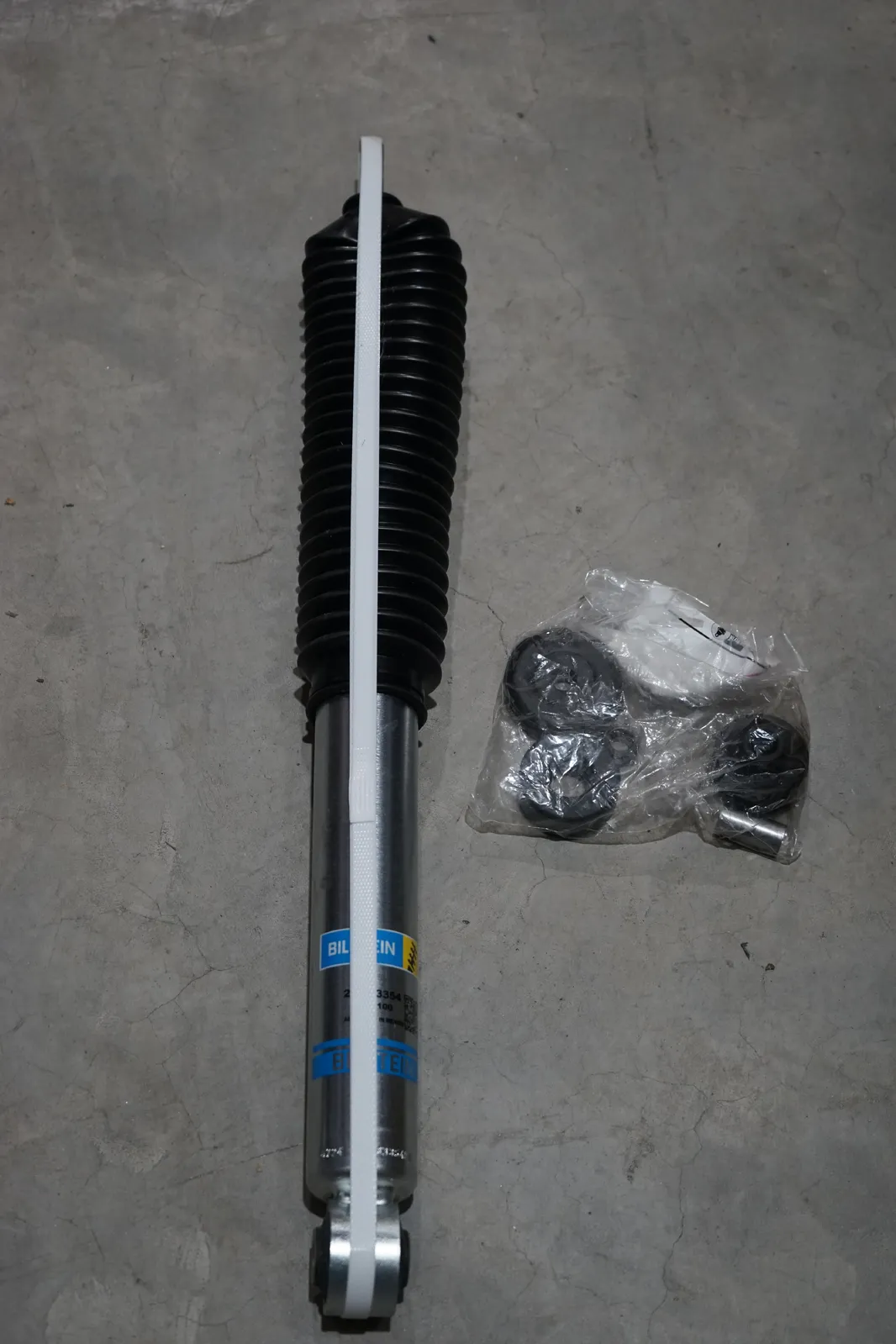

Box Damaged.

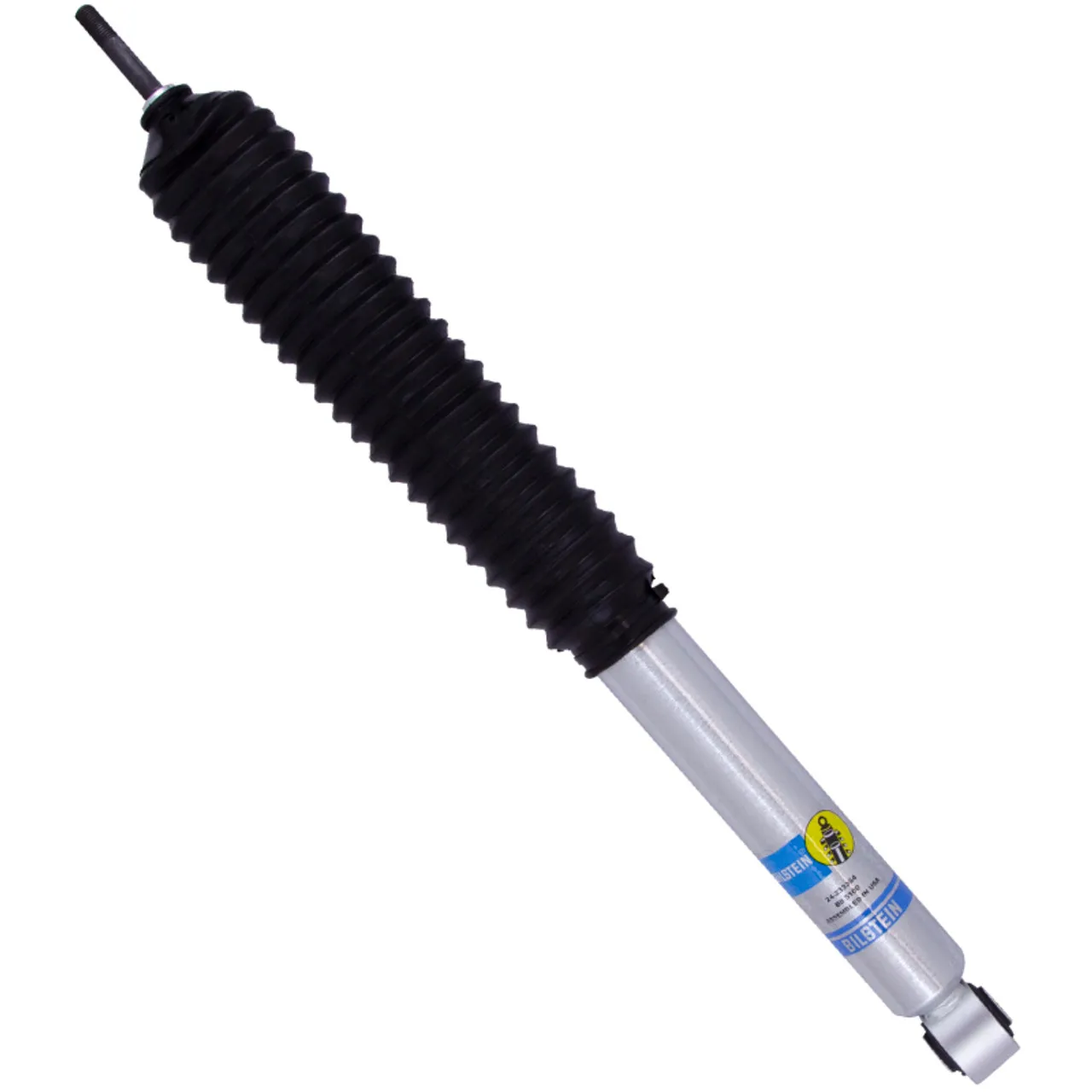

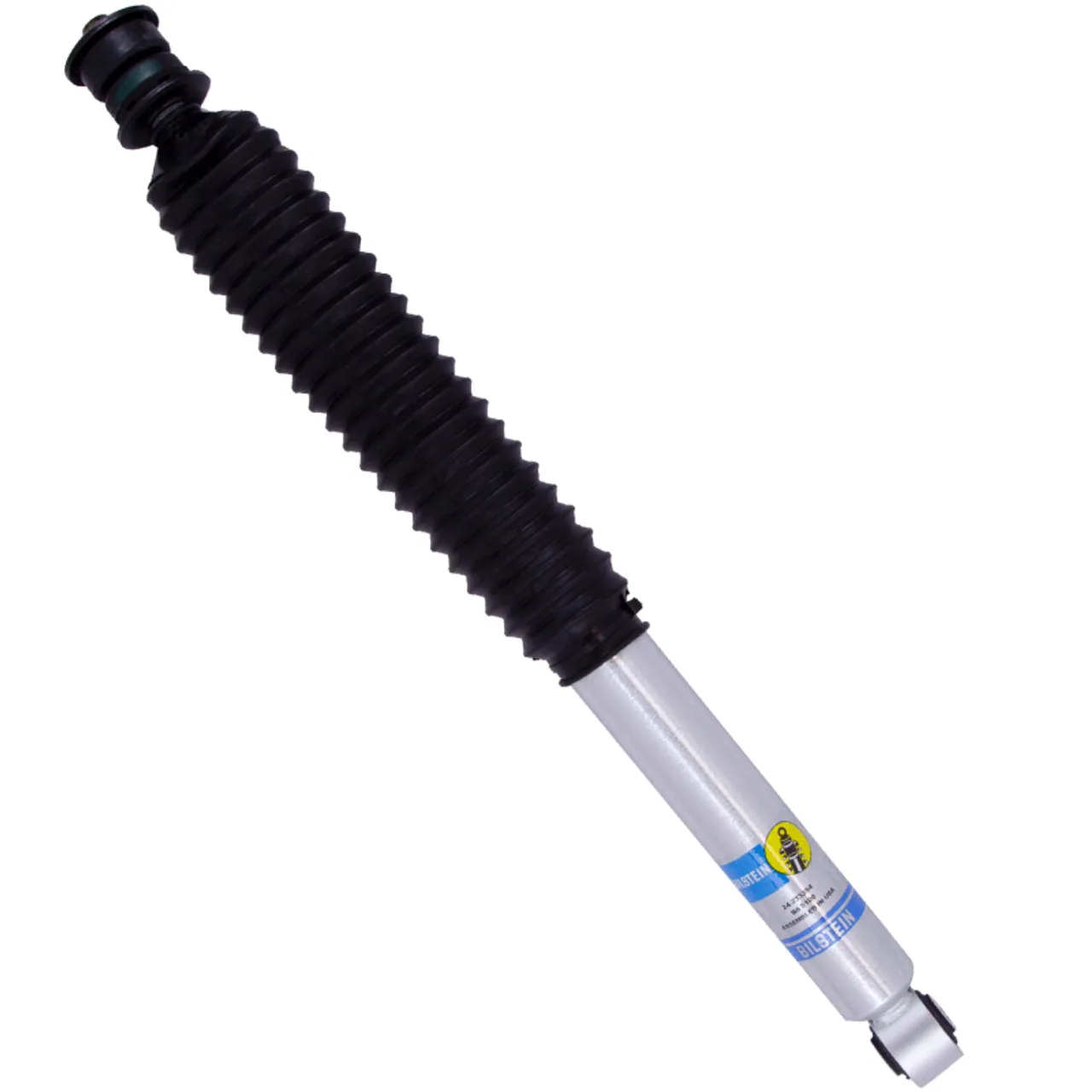

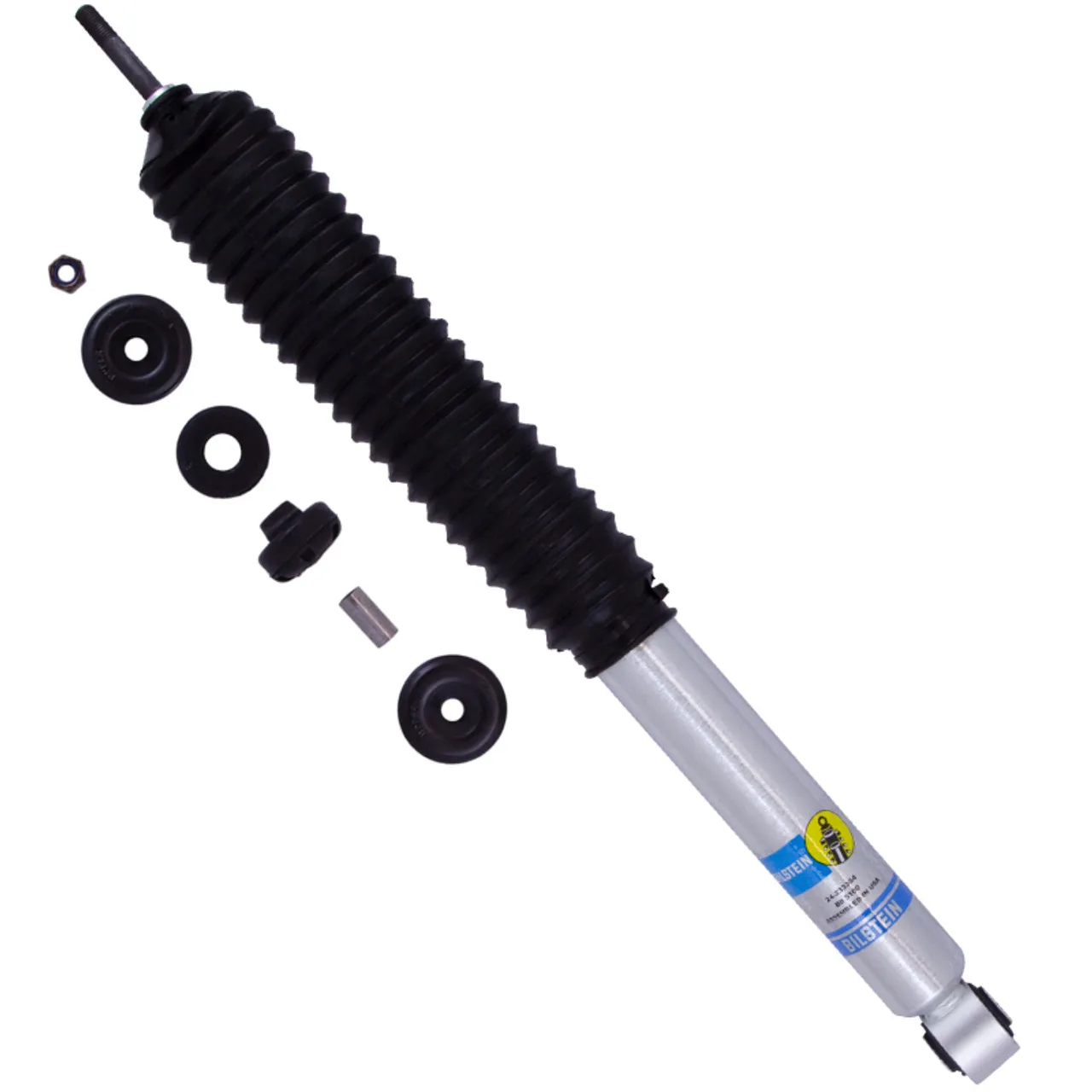

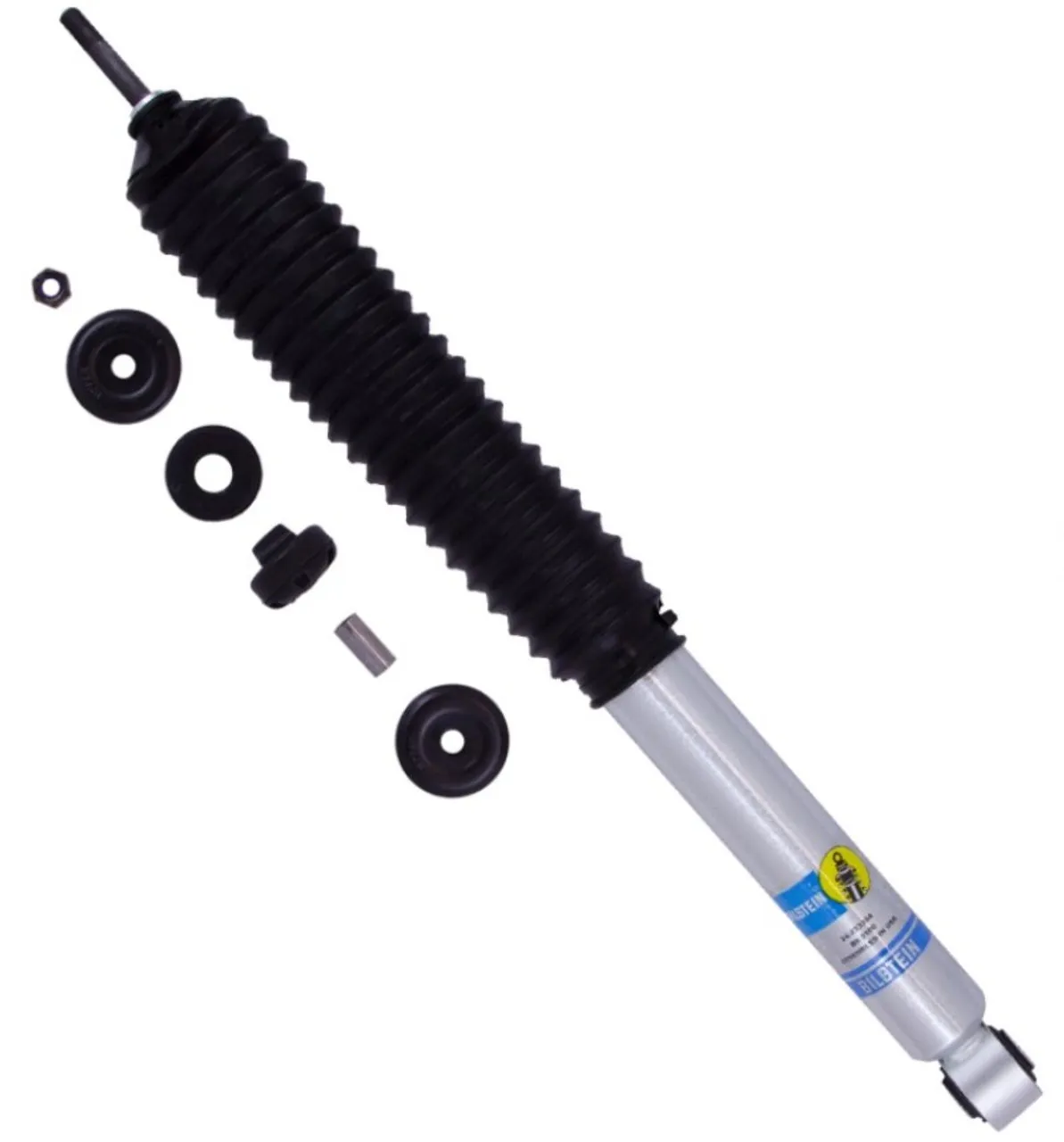

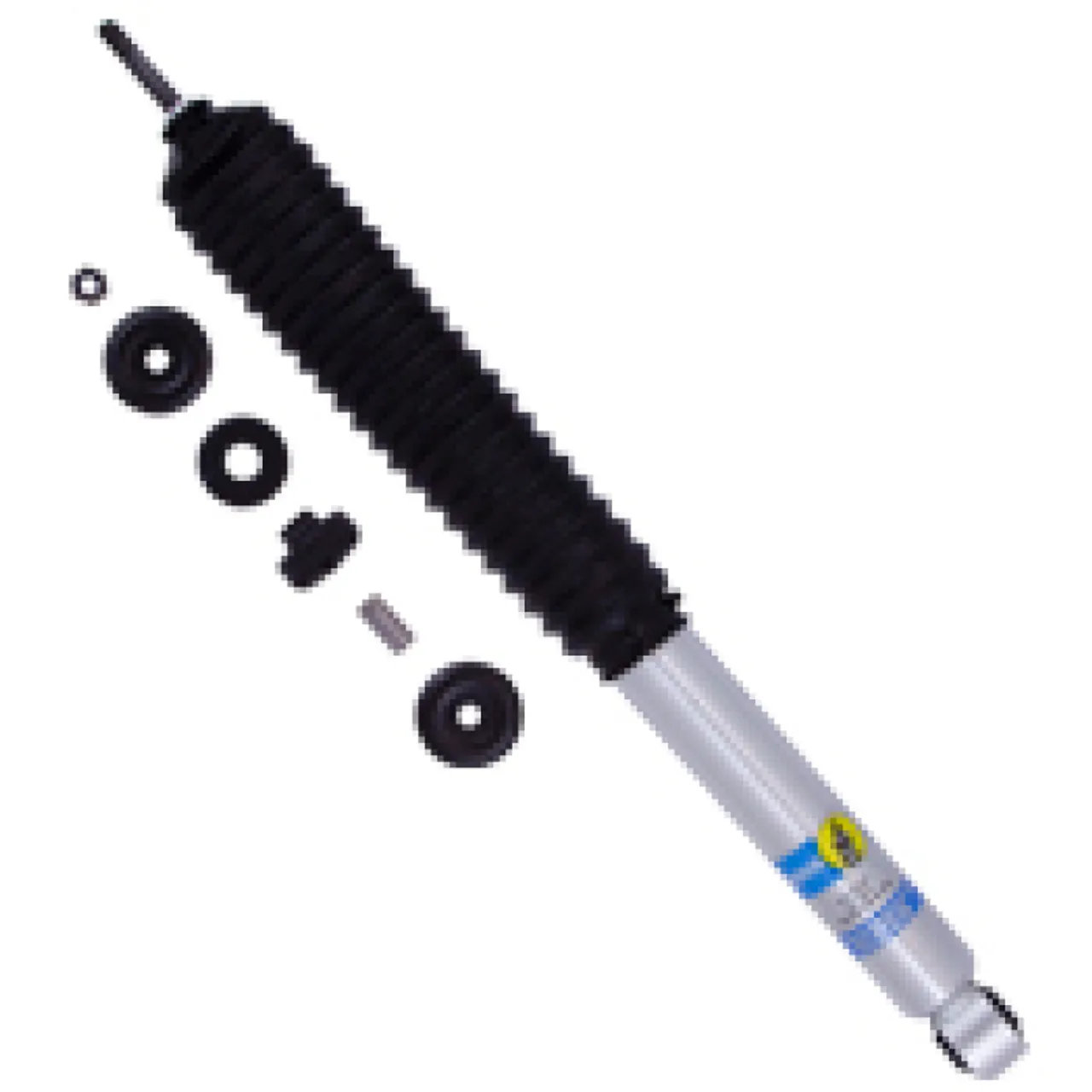

Bilstein - 24-233354

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.



Collapsed Length (MM): 403.5
Spring Seat Included: No
Extended Length (IN): 25.43
Body Design: Smooth Body (Non-coilover)
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Reservoir: No

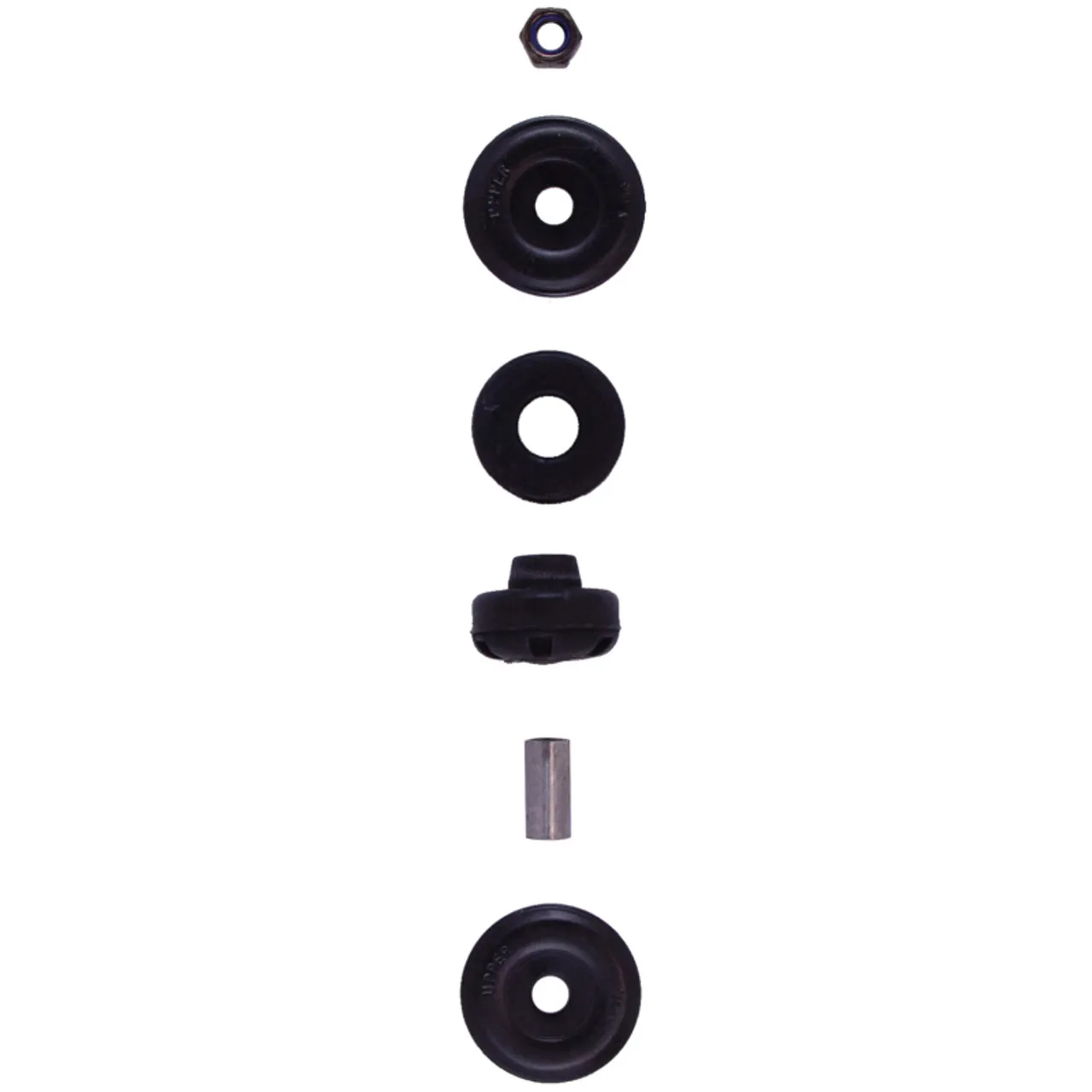

Upper Mount Type: Stem
Series: B8 5100
Finish: Zinc Plated
Extended Length (MM): 645.9
Internal Design: Monotube

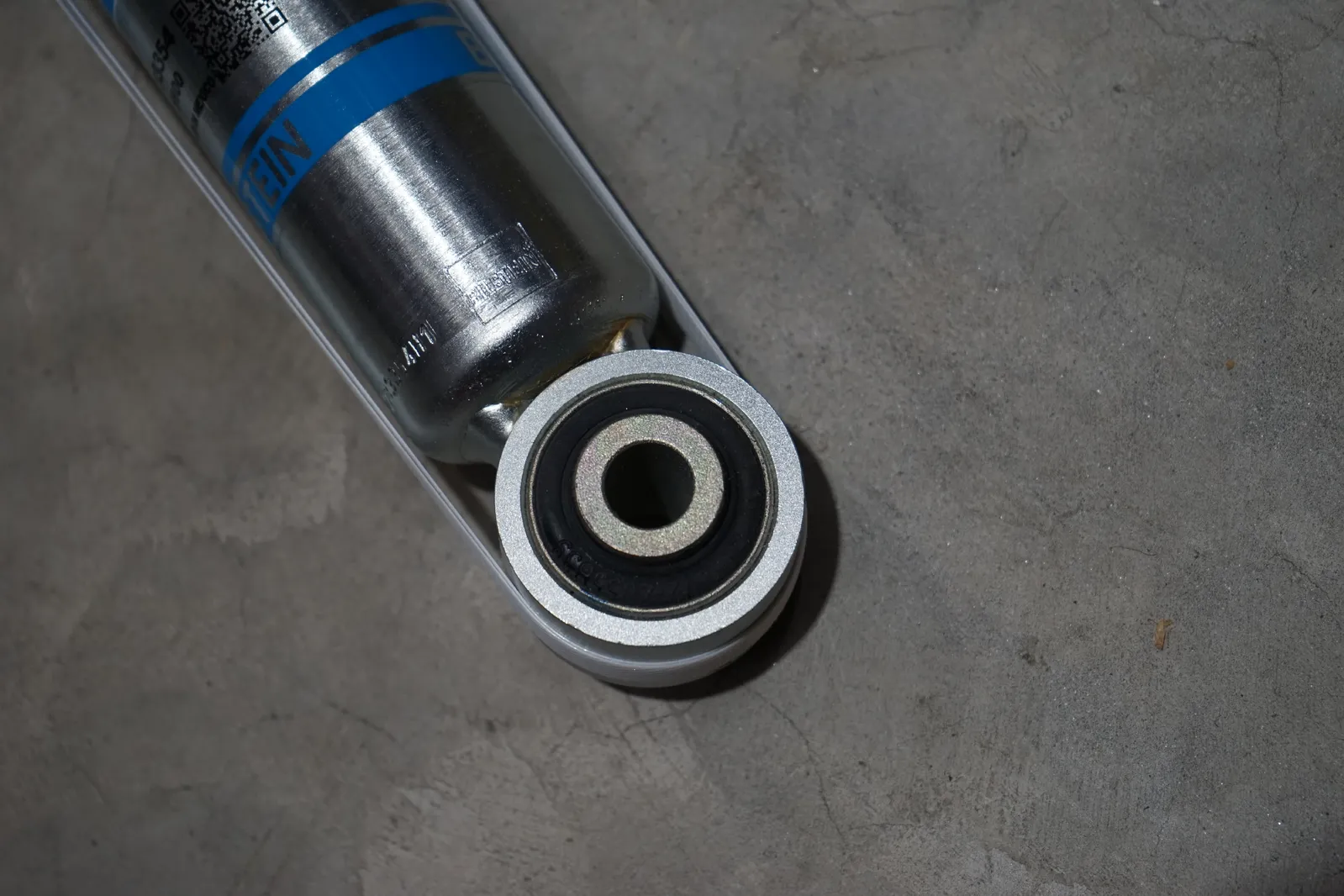

Lower Mount Type: Eye 14.1mm
Collapsed Length (IN): 15.89
Body Diameter (ID): 46mm



Specifications

Compatibility

  • 2020-2023 Ram 1500 Big Horn V6.2987cc
  • 2019-2024 Ram 1500 Big Horn V6.3604cc
  • 2019-2024 Ram 1500 Big Horn V8.-cc
  • 2022-2023 Ram 1500 HFE V6.2987cc
  • 2019-2024 Ram 1500 HFE V6.3604cc
  • 2020-2023 Ram 1500 Laramie V6.2987cc
  • 2019-2024 Ram 1500 Laramie V6.3604cc
  • 2019-2024 Ram 1500 Laramie V8.-cc
  • 2020 Ram 1500 Laramie Longhorn V6.2987cc
  • 2019-2020 Ram 1500 Laramie Longhorn V6.3604cc
  • 2019-2020 Ram 1500 Laramie Longhorn V8.-cc
  • 2021-2023 Ram 1500 Limited Longhorn V6.2987cc
  • 2021-2024 Ram 1500 Limited Longhorn V6.3604cc
  • 2021-2024 Ram 1500 Limited Longhorn V8.-cc
  • 2020-2023 Ram 1500 Lone Star V6.2987cc
  • 2019-2024 Ram 1500 Lone Star V6.3604cc
  • 2019-2024 Ram 1500 Lone Star V8.-cc
  • 2020-2023 Ram 1500 Rebel V6.2987cc
  • 2019-2024 Ram 1500 Rebel V6.3604cc
  • 2019-2024 Ram 1500 Rebel V8.-cc
  • 2020-2023 Ram 1500 Tradesman V6.2987cc
  • 2019-2024 Ram 1500 Tradesman V6.3604cc
  • 2019-2024 Ram 1500 Tradesman V8.-cc

*SCRATCH AND DENT CLEARANCE ITEM* - please choose carefully when selecting any items in scratch and dent clearance as these items are blemished or opened items that are being sold as is where is at a discounted price. Most have minor cosmetic issues or could be missing basic hardware for installation which would need to be sourced. Scratch and dent items are not eligible for return once purchased so choose carefully before purchase.

Box Damaged.

Bilstein - 24-233354

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.



Collapsed Length (MM): 403.5
Spring Seat Included: No
Extended Length (IN): 25.43
Body Design: Smooth Body (Non-coilover)
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Reservoir: No
Upper Mount Type: Stem
Series: B8 5100
Finish: Zinc Plated
Extended Length (MM): 645.9
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
Collapsed Length (IN): 15.89
Body Diameter (ID): 46mm



  • 2020-2023 Ram 1500 Big Horn V6.2987cc
  • 2019-2024 Ram 1500 Big Horn V6.3604cc
  • 2019-2024 Ram 1500 Big Horn V8.-cc
  • 2022-2023 Ram 1500 HFE V6.2987cc
  • 2019-2024 Ram 1500 HFE V6.3604cc
  • 2020-2023 Ram 1500 Laramie V6.2987cc
  • 2019-2024 Ram 1500 Laramie V6.3604cc
  • 2019-2024 Ram 1500 Laramie V8.-cc
  • 2020 Ram 1500 Laramie Longhorn V6.2987cc
  • 2019-2020 Ram 1500 Laramie Longhorn V6.3604cc
  • 2019-2020 Ram 1500 Laramie Longhorn V8.-cc
  • 2021-2023 Ram 1500 Limited Longhorn V6.2987cc
  • 2021-2024 Ram 1500 Limited Longhorn V6.3604cc
  • 2021-2024 Ram 1500 Limited Longhorn V8.-cc
  • 2020-2023 Ram 1500 Lone Star V6.2987cc
  • 2019-2024 Ram 1500 Lone Star V6.3604cc
  • 2019-2024 Ram 1500 Lone Star V8.-cc
  • 2020-2023 Ram 1500 Rebel V6.2987cc
  • 2019-2024 Ram 1500 Rebel V6.3604cc
  • 2019-2024 Ram 1500 Rebel V8.-cc
  • 2020-2023 Ram 1500 Tradesman V6.2987cc
  • 2019-2024 Ram 1500 Tradesman V6.3604cc
  • 2019-2024 Ram 1500 Tradesman V8.-cc
