Description

Features:

  • Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
  • Uses the cars factory sensors
  • Supports Sequential Injection (peak and hold) and Direct fire ignition
  • Windows 2000, XP, Vista, Windows 7 compatible software
  • Real time programming, instant hesitation free adjustment while engine is running
  • Fully user definable 32 x 32 mapping
  • Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
  • Diagnostic trouble code storing & Check engine light control (Access through laptop only )
  • Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
  • Wideband “auto tuning” using user definable target AFR table
  • USB and CAN Communication Port

Factory Outputs:

  • 6 x Fuel Injector outputs
  • 6 x Ignition outputs
  • Tacho, Boost Control, AC Clutch Relay
  • Thermo Fan, Check Engine Light, Fuel Pump (Variable Speed)
  • Variable Cam Timing (VCT)

Factory Inputs:

  • MAF sensors, Throttle Position Sensor, Oxygen sensors,
  • Coolant Temperature sensor, Vehicle Speed Sensor,
  • Knock Detection Sensors
  • A/C Switch

Expansion I/O*:

  • 4 x Analogue Voltage inputs
  • 1 x Digital Input inputs
  • 4 x Digital outputs

*Optional auxiliary harness required to be purchased Haltech Part # HT040003

Functions:
Closed Loop O2 Control
Knock Control
Long Term Fuel Trim
Decel Cut Over Boost Rev Limiter
Closed & Open Loop Boost Control
Gear Setup
Decel Cut
Transient Throttle Enhance

Correction Tables:

  • Fuel Ignition Boost:
  • Cranking
  • Air Temp Target Correction
  • Zero Throttle Gear Correction
  • Cylinder Trim
  • TPS Correction
  • Generic Correction 1
  • Generic Correction 2
  • Gear Correction
  • Post Start
  • Air Temp Duty Correction
  • Post Start

Miscellaneous:

  • Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
  • Max 20 channels logging capability
  • Tune can be password protected in software
  • Rugged anodized aluminum casing

Power Requirements:

  • Source: 8.6 to 16.5 Volts DC
  • Consumption: 530mA @ 12Volts DC



Specifications

Physical Dimensions:

  • ECU Dimensions Length: 160mm (175mm with MAP nipple)
  • Width: 158mm Height: 42mm Weight: 700g (1.54 lb)



What's Included

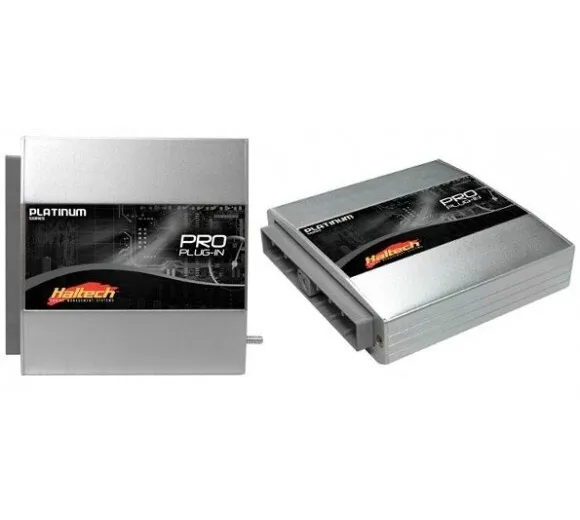

  • Pro Plug-in ECU
  • USB Cable
  • Programming Software CD
  • Quick Start Guide
  • Instruction Manual (on CD)

Compatibility

Applications:

  • Nissan Skyline R34 GT-t
  • WC34 Series Stagea

Engine Codes:

  • RB25DET, RB25DE, RB20DE

Transmission:

  • Manual only (Automatic not supported)

Features:

  • Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
  • Uses the cars factory sensors
  • Supports Sequential Injection (peak and hold) and Direct fire ignition
  • Windows 2000, XP, Vista, Windows 7 compatible software
  • Real time programming, instant hesitation free adjustment while engine is running
  • Fully user definable 32 x 32 mapping
  • Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
  • Diagnostic trouble code storing & Check engine light control (Access through laptop only )
  • Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
  • Wideband “auto tuning” using user definable target AFR table
  • USB and CAN Communication Port

Factory Outputs:

  • 6 x Fuel Injector outputs
  • 6 x Ignition outputs
  • Tacho, Boost Control, AC Clutch Relay
  • Thermo Fan, Check Engine Light, Fuel Pump (Variable Speed)
  • Variable Cam Timing (VCT)

Factory Inputs:

  • MAF sensors, Throttle Position Sensor, Oxygen sensors,
  • Coolant Temperature sensor, Vehicle Speed Sensor,
  • Knock Detection Sensors
  • A/C Switch

Expansion I/O*:

  • 4 x Analogue Voltage inputs
  • 1 x Digital Input inputs
  • 4 x Digital outputs

*Optional auxiliary harness required to be purchased Haltech Part # HT040003

Functions:
Closed Loop O2 Control
Knock Control
Long Term Fuel Trim
Decel Cut Over Boost Rev Limiter
Closed & Open Loop Boost Control
Gear Setup
Decel Cut
Transient Throttle Enhance

Correction Tables:

  • Fuel Ignition Boost:
  • Cranking
  • Air Temp Target Correction
  • Zero Throttle Gear Correction
  • Cylinder Trim
  • TPS Correction
  • Generic Correction 1
  • Generic Correction 2
  • Gear Correction
  • Post Start
  • Air Temp Duty Correction
  • Post Start

Miscellaneous:

  • Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
  • Max 20 channels logging capability
  • Tune can be password protected in software
  • Rugged anodized aluminum casing

Power Requirements:

  • Source: 8.6 to 16.5 Volts DC
  • Consumption: 530mA @ 12Volts DC



Physical Dimensions:

  • ECU Dimensions Length: 160mm (175mm with MAP nipple)
  • Width: 158mm Height: 42mm Weight: 700g (1.54 lb)



  • Pro Plug-in ECU
  • USB Cable
  • Programming Software CD
  • Quick Start Guide
  • Instruction Manual (on CD)

Applications:

  • Nissan Skyline R34 GT-t
  • WC34 Series Stagea

Engine Codes:

  • RB25DET, RB25DE, RB20DE

Transmission:

  • Manual only (Automatic not supported)
