Description

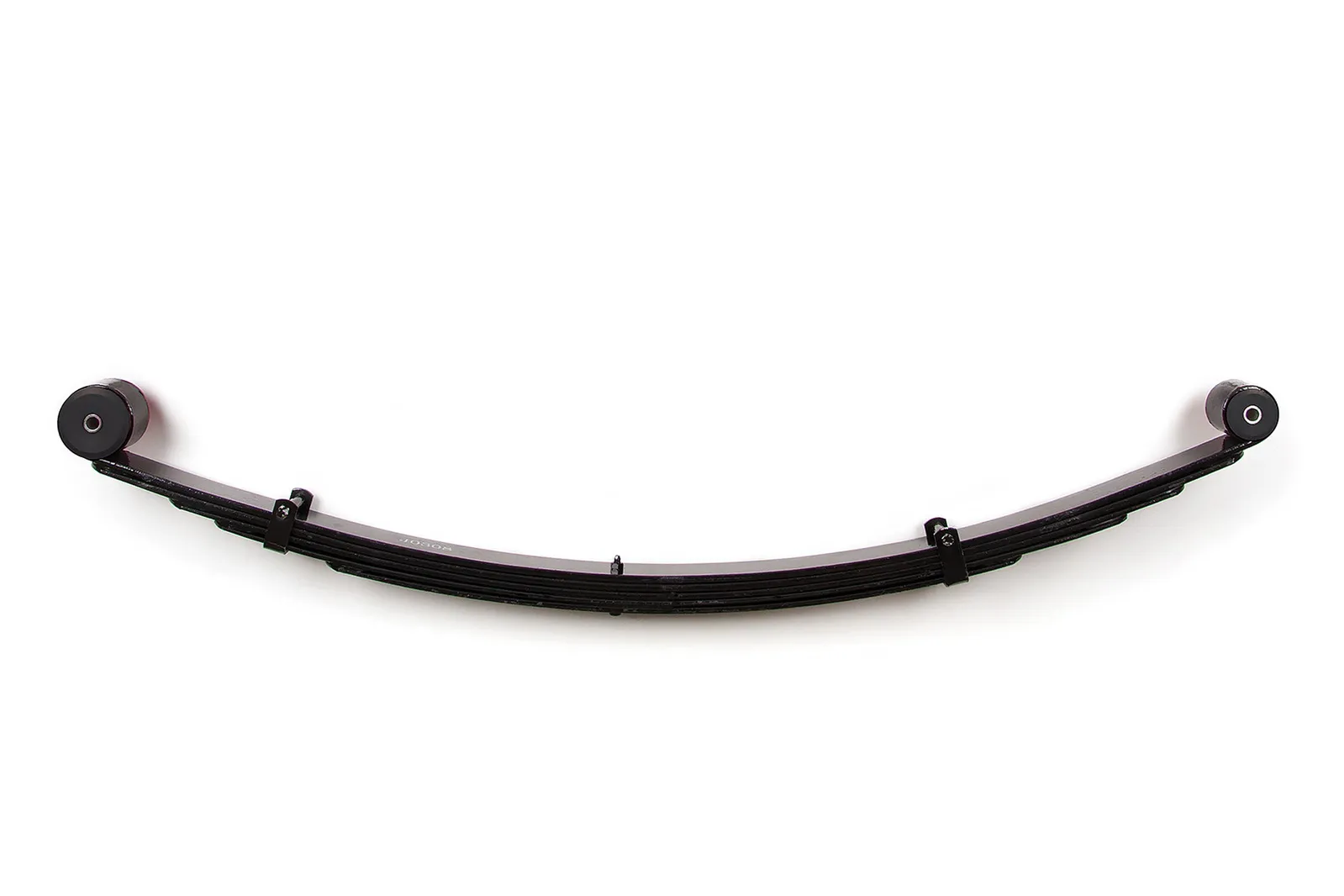

Zone Offroad ZONJ0308 - Offroad Jeep XJ 3in Leaf Spring

Zone 3in Leaf Spring

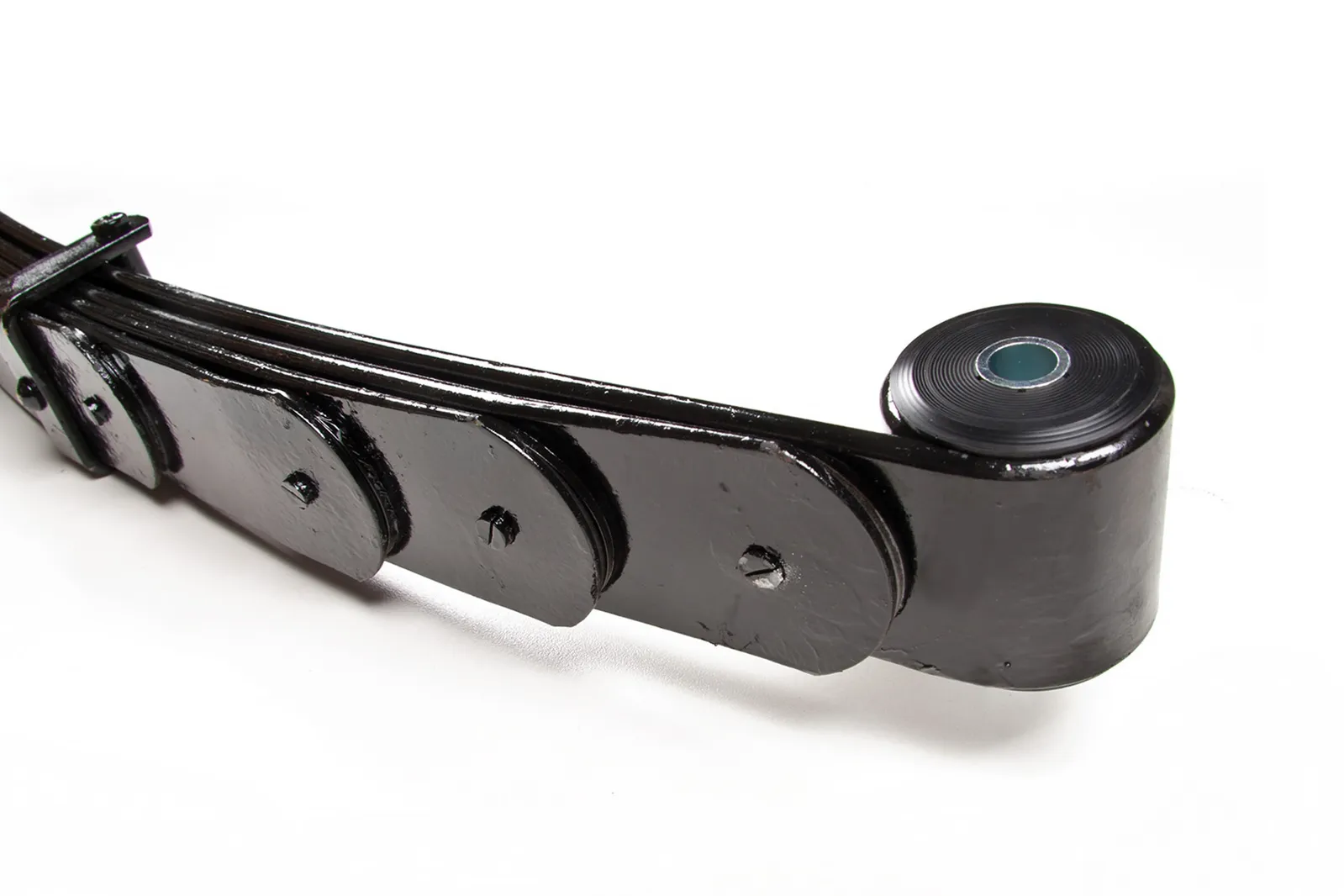

This spring is a 5-leaf pack with anti-friction pads and center leaf spacer plates between each leaf to significantly decrease leaf pack internal friction. This rear XJ leaf spring provides 3" of lift and allows for the max amount of compression travel, which translates to increased wheel travel. Sold Individually, bushings sold separately.

  • Anti-friction pads included. Center leaf spacer plates between each leaf. Improves ride and handling over your old tired factory XJ rear springs. Sold Individually, bushings sold separately.
Center Pin Size: .313
Front Eye Diameter: 2.50
Rear Eye Diameter: 1.75
Eye To Center Front: 21.89"
Eye To Center Rear: 26.74"
Eye To Eye: 48.63
Free Height: 6.50
Overload Spring: No
Length: 48-5/8"
Number Of Leafs: 5
Horizontal Position: Rear
Width: 2-1/2"

Specifications

Compatibility

  • 1984 - 2001 Jeep Cherokee

Zone Offroad ZONJ0308 - Offroad Jeep XJ 3in Leaf Spring

Zone 3in Leaf Spring

This spring is a 5-leaf pack with anti-friction pads and center leaf spacer plates between each leaf to significantly decrease leaf pack internal friction. This rear XJ leaf spring provides 3" of lift and allows for the max amount of compression travel, which translates to increased wheel travel. Sold Individually, bushings sold separately.

  • Anti-friction pads included. Center leaf spacer plates between each leaf. Improves ride and handling over your old tired factory XJ rear springs. Sold Individually, bushings sold separately.
Center Pin Size: .313
Front Eye Diameter: 2.50
Rear Eye Diameter: 1.75
Eye To Center Front: 21.89"
Eye To Center Rear: 26.74"
Eye To Eye: 48.63
Free Height: 6.50
Overload Spring: No
Length: 48-5/8"
Number Of Leafs: 5
Horizontal Position: Rear
Width: 2-1/2"
  • 1984 - 2001 Jeep Cherokee
