Description

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

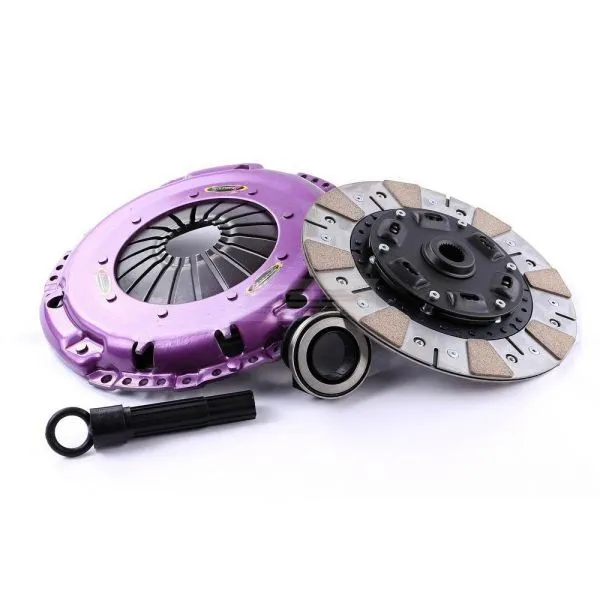

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    28

  • Hub Profile:

    22,1x28T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    12,4

  • Max. transferable engine torque [Nm]:

    720

  • Friction Lining Outer Diameter [mm]:

    228

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1998 - 1998 > SEAT > IBIZA > Petrol Engine 2.0 i 16V 6K1 Hatchback 110KW
    • 1995 - 1997 > SEAT > TOLEDO > Petrol Engine 2.0 i 16V 1L2 Hatchback 110KW
    • 1995 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 Syncro 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 85KW
    • 1997 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 85KW
    • 1995 - 1999 > VW > TRANSPORTER / CARAVELLE > Diesel 2.4 D Syncro 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 57KW
    • 1994 - 1997 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 81KW
    • 1990 - 1998 > VW > TRANSPORTER / CARAVELLE > Diesel 2.4 D 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 57KW
    • 1993 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.0 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 62KW
    • 1991 - 1996 > VW > PASSAT > Petrol Engine 2.8 VR6 3A2,35I Sedan 128KW
    • 1995 - 1997 > VW > GOLF > Diesel 1.9 TDI MKIII,1H1 Hatchback 66KW
    • 1994 - 1997 > VW > GOLF > Petrol Engine 2.8 VR6 MKIII,1H1 Hatchback 128KW
    • 1994 - 1997 > VW > TRANSPORTER > Petrol Engine 2.5 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 81KW
    • 1992 - 2001 > VW > TRANSPORTER > Petrol Engine 2.5 Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 81KW
    • 1993 - 2003 > VW > TRANSPORTER > Petrol Engine 2.0 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 62KW
    • 1997 - 2003 > VW > TRANSPORTER > Petrol Engine 2.5 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 85KW
    • 1995 - 2003 > VW > TRANSPORTER > Petrol Engine 2.5 Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 85KW
    • 1995 - 1999 > VW > TRANSPORTER > Diesel 2.4 D Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 57KW
    • 1994 - 1999 > VW > TRANSPORTER > Diesel 2.4 D 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 57KW
    • 1997 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 70A,70H,7DA,7DH Van 85KW
    • 1995 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 Syncro 70A,70H,7DA,7DH Van 85KW
    • 1993 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.0 70A,70H,7DA,7DH Van 62KW
    • 1994 - 1997 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 70A,70H,7DA,7DH Van 81KW
    • 1994 - 1999 > VW > TRANSPORTER / KOMBI > Diesel 2.4 D 70A,70H,7DA,7DH Van 57KW
    • 1992 - 2001 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 Syncro 70A,70H,7DA,7DH Van 81KW
    • 1995 - 1999 > VW > TRANSPORTER / KOMBI > Diesel 2.4 D Syncro 70A,70H,7DA,7DH Van 57KW

    Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    28

  • Hub Profile:

    22,1x28T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    12,4

  • Max. transferable engine torque [Nm]:

    720

  • Friction Lining Outer Diameter [mm]:

    228

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

    • 1998 - 1998 > SEAT > IBIZA > Petrol Engine 2.0 i 16V 6K1 Hatchback 110KW
    • 1995 - 1997 > SEAT > TOLEDO > Petrol Engine 2.0 i 16V 1L2 Hatchback 110KW
    • 1995 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 Syncro 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 85KW
    • 1997 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 85KW
    • 1995 - 1999 > VW > TRANSPORTER / CARAVELLE > Diesel 2.4 D Syncro 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 57KW
    • 1994 - 1997 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.5 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 81KW
    • 1990 - 1998 > VW > TRANSPORTER / CARAVELLE > Diesel 2.4 D 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 57KW
    • 1993 - 2003 > VW > TRANSPORTER / CARAVELLE > Petrol Engine 2.0 70B,70C,7DB,7DK,70J,70K,7DC,7DJ Bus 62KW
    • 1991 - 1996 > VW > PASSAT > Petrol Engine 2.8 VR6 3A2,35I Sedan 128KW
    • 1995 - 1997 > VW > GOLF > Diesel 1.9 TDI MKIII,1H1 Hatchback 66KW
    • 1994 - 1997 > VW > GOLF > Petrol Engine 2.8 VR6 MKIII,1H1 Hatchback 128KW
    • 1994 - 1997 > VW > TRANSPORTER > Petrol Engine 2.5 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 81KW
    • 1992 - 2001 > VW > TRANSPORTER > Petrol Engine 2.5 Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 81KW
    • 1993 - 2003 > VW > TRANSPORTER > Petrol Engine 2.0 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 62KW
    • 1997 - 2003 > VW > TRANSPORTER > Petrol Engine 2.5 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 85KW
    • 1995 - 2003 > VW > TRANSPORTER > Petrol Engine 2.5 Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 85KW
    • 1995 - 1999 > VW > TRANSPORTER > Diesel 2.4 D Syncro 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 57KW
    • 1994 - 1999 > VW > TRANSPORTER > Diesel 2.4 D 70E,70L,70M,7DE,7DL,7DM Platform/Chassis 57KW
    • 1997 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 70A,70H,7DA,7DH Van 85KW
    • 1995 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 Syncro 70A,70H,7DA,7DH Van 85KW
    • 1993 - 2003 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.0 70A,70H,7DA,7DH Van 62KW
    • 1994 - 1997 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 70A,70H,7DA,7DH Van 81KW
    • 1994 - 1999 > VW > TRANSPORTER / KOMBI > Diesel 2.4 D 70A,70H,7DA,7DH Van 57KW
    • 1992 - 2001 > VW > TRANSPORTER / KOMBI > Petrol Engine 2.5 Syncro 70A,70H,7DA,7DH Van 81KW
    • 1995 - 1999 > VW > TRANSPORTER / KOMBI > Diesel 2.4 D Syncro 70A,70H,7DA,7DH Van 57KW
