Description

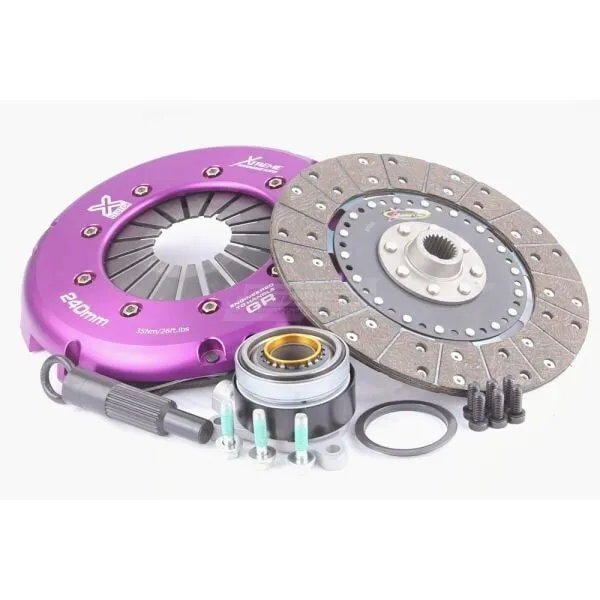

Stage 1 -1G Rigid Solid Organic Clutch Kits are recommended for Street use and light track use in vehicles with minor engine modifications.

A rigid centre version of the sprung organic friction disc, these kits are designed for specific applications and are ideal for street use and light track use.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Engine Features/Arrangement:

    for engines with dual-mass flywheel

  • for flywheel depth [mm]:

    9,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 2020 - 2024 > TOYOTA > YARIS > Petrol Engine 1.6 GR 4WD (GXPA16) _P21_,_PA1_,_PH1_ Hatchback 200KW
    • 2023 - 2025 > TOYOTA > COROLLA > Petrol Engine 1.6 GR 4WD (GZEA14) _E21_,_EA1_,_EH1_ Hatchback 224KW

    Stage 1 -1G Rigid Solid Organic Clutch Kits are recommended for Street use and light track use in vehicles with minor engine modifications.

    A rigid centre version of the sprung organic friction disc, these kits are designed for specific applications and are ideal for street use and light track use.

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Engine Features/Arrangement:

    for engines with dual-mass flywheel

  • for flywheel depth [mm]:

    9,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

    • 2020 - 2024 > TOYOTA > YARIS > Petrol Engine 1.6 GR 4WD (GXPA16) _P21_,_PA1_,_PH1_ Hatchback 200KW
    • 2023 - 2025 > TOYOTA > COROLLA > Petrol Engine 1.6 GR 4WD (GZEA14) _E21_,_EA1_,_EH1_ Hatchback 224KW
