Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

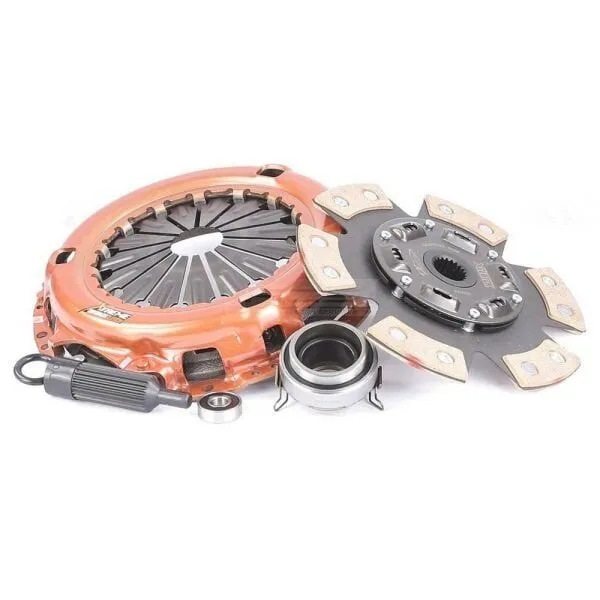

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    235

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1989 - 2003 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH183, RZH113, RZH115) _H1_ Bus 88KW
    • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH125) _H1_ Bus 85KW
    • 2004 - 2019 > TOYOTA > HIACE > Petrol Engine 2.0 (TRH200) TRH2__,KDH2__,LH2__,GDH2__ Van 98KW
    • 2013 - 2025 > TOYOTA > HIACE > Petrol Engine 2.0 (TRH200) TRH2__,KDH2__,LH2__,GDH2__ Van 100KW
    • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH103, RZH113) _H1_ Van 85KW
    • 1989 - 1998 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103, RZH113) _H1_ Van 85KW
    • 1989 - 1996 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103_, RZH103R) _H1_ Van 72KW
    • 1990 - 2000 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 (TCR10R, TCR11R) _R1_,_R2_ MPV 97KW
    • 1990 - 1993 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR21R, TCR20R) _R1_,_R2_ MPV 97KW
    • 1990 - 1996 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 (TCR10, TCR11) _R1_,_R2_ MPV 102KW
    • 1990 - 1996 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR20, TCR21) TCR10,TCR11 MPV 102KW
    • 1992 - 1999 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR21G, TCR20G) _R1_,_R2_ MPV 99KW
    • 1984 - 1987 > TOYOTA > DYNA > Petrol Engine 2.0 (YU60_, YU60R) _U_,_Y_ Platform/Chassis 79KW
    • 1989 - 1990 > TOYOTA > 4 RUNNER > Petrol Engine 2.2 (YN130) _N13_ SUV 74KW
    • 1995 - 2004 > TOYOTA > HIACE SBV > Petrol Engine 2.4 (RZH10) RCH12,RCH22 Van 88KW
    • 1990 - 1999 > TOYOTA > ESTIMA EMINA / LUCIDA > Petrol Engine 2.4 (TCR10G, TCR11G, TCR10W) _R1_,_R2_ MPV 99KW
    • 2004 - 2020 > TOYOTA > REGIUS ACE > Petrol Engine 2.0 (TRH200) TRH2_,KDH2_ Van 98KW
    • 2004 - 2020 > TOYOTA > REGIUS ACE > Petrol Engine 2.0 (TRH200) TRH2_,KDH2_ Bus 98KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    235

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1989 - 2003 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH183, RZH113, RZH115) _H1_ Bus 88KW
    • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH125) _H1_ Bus 85KW
    • 2004 - 2019 > TOYOTA > HIACE > Petrol Engine 2.0 (TRH200) TRH2__,KDH2__,LH2__,GDH2__ Van 98KW
    • 2013 - 2025 > TOYOTA > HIACE > Petrol Engine 2.0 (TRH200) TRH2__,KDH2__,LH2__,GDH2__ Van 100KW
    • 1998 - 2004 > TOYOTA > HIACE > Petrol Engine 2.4 i (RZH103, RZH113) _H1_ Van 85KW
    • 1989 - 1998 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103, RZH113) _H1_ Van 85KW
    • 1989 - 1996 > TOYOTA > HIACE > Petrol Engine 2.4 (RZH103_, RZH103R) _H1_ Van 72KW
    • 1990 - 2000 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 (TCR10R, TCR11R) _R1_,_R2_ MPV 97KW
    • 1990 - 1993 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR21R, TCR20R) _R1_,_R2_ MPV 97KW
    • 1990 - 1996 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 (TCR10, TCR11) _R1_,_R2_ MPV 102KW
    • 1990 - 1996 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR20, TCR21) TCR10,TCR11 MPV 102KW
    • 1992 - 1999 > TOYOTA > TARAGO / ESTIMA > Petrol Engine 2.4 4WD (TCR21G, TCR20G) _R1_,_R2_ MPV 99KW
    • 1984 - 1987 > TOYOTA > DYNA > Petrol Engine 2.0 (YU60_, YU60R) _U_,_Y_ Platform/Chassis 79KW
    • 1989 - 1990 > TOYOTA > 4 RUNNER > Petrol Engine 2.2 (YN130) _N13_ SUV 74KW
    • 1995 - 2004 > TOYOTA > HIACE SBV > Petrol Engine 2.4 (RZH10) RCH12,RCH22 Van 88KW
    • 1990 - 1999 > TOYOTA > ESTIMA EMINA / LUCIDA > Petrol Engine 2.4 (TCR10G, TCR11G, TCR10W) _R1_,_R2_ MPV 99KW
    • 2004 - 2020 > TOYOTA > REGIUS ACE > Petrol Engine 2.0 (TRH200) TRH2_,KDH2_ Van 98KW
    • 2004 - 2020 > TOYOTA > REGIUS ACE > Petrol Engine 2.0 (TRH200) TRH2_,KDH2_ Bus 98KW
