Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

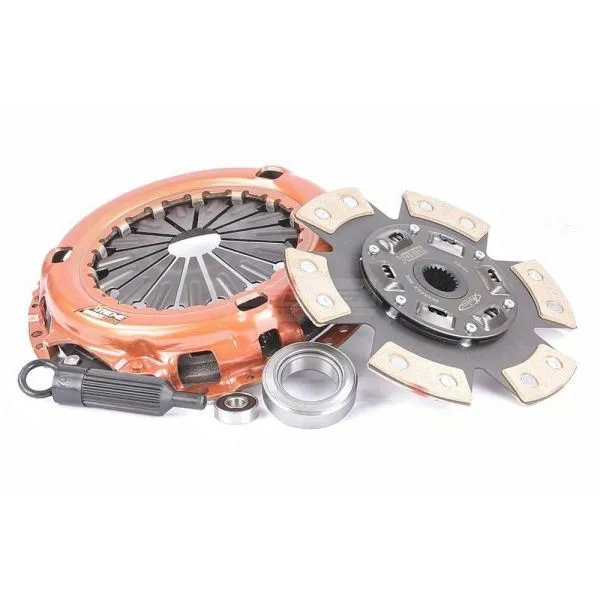

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    235

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1985 - 1986 > DAIHATSU > ROCKY > Petrol Engine 2.0 (F70, F75, F80, F85) F7,F8 Open Off-Road Vehicle 65KW
    • 1984 - 1989 > DAIHATSU > ROCKY > Petrol Engine 2.0 4x4 (F70, F75, F80, F85) F7,F8 Closed Off-Road Vehicle 65KW
    • 1986 - 1988 > DAIHATSU > ROCKY > Petrol Engine 2.0 4x4 F7,F8 Closed Off-Road Vehicle 67KW
    • 1985 - 1999 > DAIHATSU > DELTA WIDE > Petrol Engine 2.0 (YB21, V68) YB_,V5_,V7_,V9_,V11_ Platform/Chassis 65KW
    • 1981 - 1985 > TOYOTA > CELICA > Petrol Engine 2.8 Supra (MA61_, MA61R) _A6_ Coupe 125KW
    • 1981 - 1985 > TOYOTA > CELICA > Petrol Engine 2.8 Supra (MA61) _A6_ Coupe 103KW
    • 1985 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) H5G Bus 65KW
    • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) _H5_,_H6_,_H7_,_H8_,_H9_ Van 65KW
    • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH73) _H5_,_H6_,_H7_,_H8_,_H9_ Bus 69KW
    • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH53, YH63) _H5_,_H6_,_H7_,_H8_,_H9_ Van 69KW
    • 1983 - 1987 > TOYOTA > HILUX > Petrol Engine 2.0 (YN57, YN60) _N5_,_N6_ Ute 65KW
    • 1985 - 1988 > TOYOTA > HILUX > Petrol Engine 2.2 4WD (YN67) _N5_,_N6_ Ute 69KW
    • 1983 - 1989 > TOYOTA > HILUX > Petrol Engine 2.0 4WD (YN65_) _N5_,_N6_ Ute 65KW
    • 1977 - 1984 > TOYOTA > DYNA > Petrol Engine 2.0 (RU20_, RU25_, RU30_, RU20R, RU25R, RU30R) _U_,_Y_ Platform/Chassis 72KW
    • 1984 - 1987 > TOYOTA > DYNA > Petrol Engine 2.0 (YU60_, YU60R) _U_,_Y_ Platform/Chassis 79KW
    • 1982 - 1989 > TOYOTA > COASTER > Petrol Engine 2.4 (RB20) _B2_,_B3_ Bus 72KW
    • 1980 - 1985 > TOYOTA > SOARER > Petrol Engine 2.8 (MZ11) _Z1_ Coupe 125KW
    • 1981 - 1985 > TOYOTA > SOARER > Petrol Engine 2.0 Turbo (MZ10) _Z1_ Coupe 108KW
    • 1984 - 1985 > TOYOTA > 4 RUNNER > Petrol Engine 2.0 (YN60) _N5_,_N6_,_N7_ SUV 65KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    560

  • Friction Lining Outer Diameter [mm]:

    235

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1985 - 1986 > DAIHATSU > ROCKY > Petrol Engine 2.0 (F70, F75, F80, F85) F7,F8 Open Off-Road Vehicle 65KW
    • 1984 - 1989 > DAIHATSU > ROCKY > Petrol Engine 2.0 4x4 (F70, F75, F80, F85) F7,F8 Closed Off-Road Vehicle 65KW
    • 1986 - 1988 > DAIHATSU > ROCKY > Petrol Engine 2.0 4x4 F7,F8 Closed Off-Road Vehicle 67KW
    • 1985 - 1999 > DAIHATSU > DELTA WIDE > Petrol Engine 2.0 (YB21, V68) YB_,V5_,V7_,V9_,V11_ Platform/Chassis 65KW
    • 1981 - 1985 > TOYOTA > CELICA > Petrol Engine 2.8 Supra (MA61_, MA61R) _A6_ Coupe 125KW
    • 1981 - 1985 > TOYOTA > CELICA > Petrol Engine 2.8 Supra (MA61) _A6_ Coupe 103KW
    • 1985 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) H5G Bus 65KW
    • 1982 - 1989 > TOYOTA > HIACE > Petrol Engine 2.0 (YH51, YH61) _H5_,_H6_,_H7_,_H8_,_H9_ Van 65KW
    • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH73) _H5_,_H6_,_H7_,_H8_,_H9_ Bus 69KW
    • 1986 - 1989 > TOYOTA > HIACE > Petrol Engine 2.2 (YH56, YH66, YH53, YH63) _H5_,_H6_,_H7_,_H8_,_H9_ Van 69KW
    • 1983 - 1987 > TOYOTA > HILUX > Petrol Engine 2.0 (YN57, YN60) _N5_,_N6_ Ute 65KW
    • 1985 - 1988 > TOYOTA > HILUX > Petrol Engine 2.2 4WD (YN67) _N5_,_N6_ Ute 69KW
    • 1983 - 1989 > TOYOTA > HILUX > Petrol Engine 2.0 4WD (YN65_) _N5_,_N6_ Ute 65KW
    • 1977 - 1984 > TOYOTA > DYNA > Petrol Engine 2.0 (RU20_, RU25_, RU30_, RU20R, RU25R, RU30R) _U_,_Y_ Platform/Chassis 72KW
    • 1984 - 1987 > TOYOTA > DYNA > Petrol Engine 2.0 (YU60_, YU60R) _U_,_Y_ Platform/Chassis 79KW
    • 1982 - 1989 > TOYOTA > COASTER > Petrol Engine 2.4 (RB20) _B2_,_B3_ Bus 72KW
    • 1980 - 1985 > TOYOTA > SOARER > Petrol Engine 2.8 (MZ11) _Z1_ Coupe 125KW
    • 1981 - 1985 > TOYOTA > SOARER > Petrol Engine 2.0 Turbo (MZ10) _Z1_ Coupe 108KW
    • 1984 - 1985 > TOYOTA > 4 RUNNER > Petrol Engine 2.0 (YN60) _N5_,_N6_,_N7_ SUV 65KW
