Description

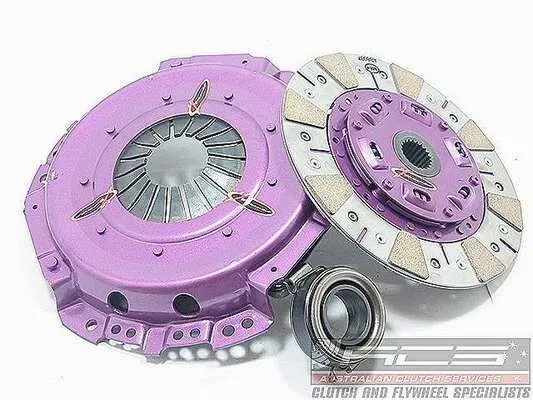

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    26,9x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1993 - 1995 > HOLDEN > APOLLO > Petrol Engine 2.2 i JM Sedan 93KW
  • 1993 - 1995 > HOLDEN > APOLLO > Petrol Engine 2.2 i JM Wagon 93KW
  • 1995 - 1997 > HOLDEN > APOLLO > Petrol Engine 2.2 i JP Sedan 93KW
  • 1995 - 1997 > HOLDEN > APOLLO > Petrol Engine 2.2 i JP Wagon 93KW
  • 1987 - 1993 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV21R) _V2_ Sedan 89KW
  • 1986 - 1993 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV21_, SV21RG) _V2_ Wagon 89KW
  • 1997 - 2002 > TOYOTA > CAMRY > Petrol Engine 2.2 (SXV20) _V2_ Sedan 93KW
  • 1997 - 2002 > TOYOTA > CAMRY > Petrol Engine 2.2 (SXV20_, SXV20W, SXV20R) _V2_ Wagon 93KW
  • 1992 - 1997 > TOYOTA > CAMRY > Petrol Engine 2.2 (SDV10, SXV10) _V1_ Sedan 93KW
  • 1992 - 1997 > TOYOTA > CAMRY > Petrol Engine 2.2 (SDV10, SXV10) _V1_ Wagon 93KW
  • 1990 - 1994 > TOYOTA > CAMRY > Petrol Engine 1.8 (SV30_, SV30) _V3_,_V4_ Sedan 85KW
  • 1990 - 1994 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV32_, SV33_, SV32, SV33) _V3_,_V4_ Sedan 121KW
  • 1989 - 1999 > TOYOTA > MR2 > Petrol Engine 2.0 16V (SW20_, SW20R) SW2_ Coupe 115KW
  • 1989 - 2000 > TOYOTA > MR2 > Petrol Engine 2.0 16V (SW20_, SW20R) SW2_ Coupe 125KW
  • 1993 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 i 16V (ST202) _T20_ Convertible 125KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.2 SX, ZR (ST204) _T20_ Coupe 100KW
  • 1989 - 1994 > TOYOTA > CELICA > Petrol Engine 2.2 (ST184) _T18_ Coupe 100KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 GTi (ST202) _T20_ Convertible 129KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 VVTi (ST202C) _T20_ Convertible 132KW
  • 1989 - 1993 > TOYOTA > CELICA > Petrol Engine 2.2 (ST184) _T18_ Coupe 97KW
  • 1992 - 1997 > TOYOTA > CORONA > Petrol Engine 2.0 (ST191) _T19_ Hatchback 93KW
  • 1992 - 1997 > TOYOTA > CORONA > Petrol Engine 2.0 (ST191_, ST191) _T19_ Sedan 93KW
  • 1989 - 1992 > TOYOTA > CORONA > Petrol Engine 1.8 (ST180_, ST181_, ST180, ST181) _T17_ Sedan 85KW
  • 1991 - 1996 > TOYOTA > CORONA > Petrol Engine 1.8 (ST190_, ST190) _T19_ Sedan 92KW
  • 1989 - 1992 > TOYOTA > CORONA > Petrol Engine 1.8 (ST170) _T17_ Hatchback 85KW

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    26,9x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • 1993 - 1995 > HOLDEN > APOLLO > Petrol Engine 2.2 i JM Sedan 93KW
  • 1993 - 1995 > HOLDEN > APOLLO > Petrol Engine 2.2 i JM Wagon 93KW
  • 1995 - 1997 > HOLDEN > APOLLO > Petrol Engine 2.2 i JP Sedan 93KW
  • 1995 - 1997 > HOLDEN > APOLLO > Petrol Engine 2.2 i JP Wagon 93KW
  • 1987 - 1993 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV21R) _V2_ Sedan 89KW
  • 1986 - 1993 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV21_, SV21RG) _V2_ Wagon 89KW
  • 1997 - 2002 > TOYOTA > CAMRY > Petrol Engine 2.2 (SXV20) _V2_ Sedan 93KW
  • 1997 - 2002 > TOYOTA > CAMRY > Petrol Engine 2.2 (SXV20_, SXV20W, SXV20R) _V2_ Wagon 93KW
  • 1992 - 1997 > TOYOTA > CAMRY > Petrol Engine 2.2 (SDV10, SXV10) _V1_ Sedan 93KW
  • 1992 - 1997 > TOYOTA > CAMRY > Petrol Engine 2.2 (SDV10, SXV10) _V1_ Wagon 93KW
  • 1990 - 1994 > TOYOTA > CAMRY > Petrol Engine 1.8 (SV30_, SV30) _V3_,_V4_ Sedan 85KW
  • 1990 - 1994 > TOYOTA > CAMRY > Petrol Engine 2.0 (SV32_, SV33_, SV32, SV33) _V3_,_V4_ Sedan 121KW
  • 1989 - 1999 > TOYOTA > MR2 > Petrol Engine 2.0 16V (SW20_, SW20R) SW2_ Coupe 115KW
  • 1989 - 2000 > TOYOTA > MR2 > Petrol Engine 2.0 16V (SW20_, SW20R) SW2_ Coupe 125KW
  • 1993 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 i 16V (ST202) _T20_ Convertible 125KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.2 SX, ZR (ST204) _T20_ Coupe 100KW
  • 1989 - 1994 > TOYOTA > CELICA > Petrol Engine 2.2 (ST184) _T18_ Coupe 100KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 GTi (ST202) _T20_ Convertible 129KW
  • 1994 - 1999 > TOYOTA > CELICA > Petrol Engine 2.0 VVTi (ST202C) _T20_ Convertible 132KW
  • 1989 - 1993 > TOYOTA > CELICA > Petrol Engine 2.2 (ST184) _T18_ Coupe 97KW
  • 1992 - 1997 > TOYOTA > CORONA > Petrol Engine 2.0 (ST191) _T19_ Hatchback 93KW
  • 1992 - 1997 > TOYOTA > CORONA > Petrol Engine 2.0 (ST191_, ST191) _T19_ Sedan 93KW
  • 1989 - 1992 > TOYOTA > CORONA > Petrol Engine 1.8 (ST180_, ST181_, ST180, ST181) _T17_ Sedan 85KW
  • 1991 - 1996 > TOYOTA > CORONA > Petrol Engine 1.8 (ST190_, ST190) _T19_ Sedan 92KW
  • 1989 - 1992 > TOYOTA > CORONA > Petrol Engine 1.8 (ST170) _T17_ Hatchback 85KW
