Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

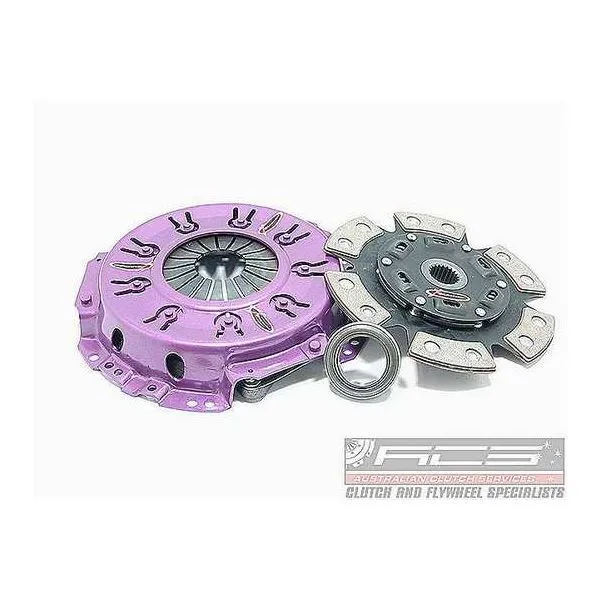

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1975 - 1979 > TOYOTA > CORONA > Petrol Engine 2.0 (RT118) RT118 Wagon 65KW
    • 1976 - 1979 > TOYOTA > CORONA > Petrol Engine 2.0 (RT104) RT1_ Sedan 65KW
    • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 2.0 (RH32) RH25-32 Van 65KW
    • 1975 - 1979 > TOYOTA > CROWN > Petrol Engine 2.6 (MS85) _S8_ Sedan 88KW
    • 1971 - 1972 > TOYOTA > CROWN > Petrol Engine 2.6 (MS65) _S6_ Sedan 88KW
    • 1971 - 1974 > TOYOTA > CROWN > Petrol Engine 2.6 (MS63) _S6_ Wagon 88KW
    • 1979 - 1983 > TOYOTA > HILUX > Petrol Engine 2.0 4WD (RN46, RN36) _N3_,_N4_ Ute 65KW
    • 1979 - 1983 > TOYOTA > HILUX > Petrol Engine 2.0 (RN31, RN41) _N3_,_N4_ Ute 65KW
    • 1979 - 1983 > TOYOTA > HILUX > Diesel 2.2 D (LN40, LN30) _N3_,_N4_ Ute 49KW
    • 1977 - 1981 > TOYOTA > CRESSIDA > Petrol Engine 2.6 (MX36) _X3_ Wagon 112KW
    • 1977 - 1980 > TOYOTA > CRESSIDA > Petrol Engine 2.6 (MX32) _X3_ Sedan 112KW
    • 1973 - 1977 > TOYOTA > CELICA > Petrol Engine 2.0 (RA28, RA23) _A2_ Coupe 72KW
    • 1979 - 1983 > TOYOTA > STOUT > Petrol Engine 2.0 (RK110) _K11_ Ute 70KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1975 - 1979 > TOYOTA > CORONA > Petrol Engine 2.0 (RT118) RT118 Wagon 65KW
    • 1976 - 1979 > TOYOTA > CORONA > Petrol Engine 2.0 (RT104) RT1_ Sedan 65KW
    • 1977 - 1983 > TOYOTA > HIACE > Petrol Engine 2.0 (RH32) RH25-32 Van 65KW
    • 1975 - 1979 > TOYOTA > CROWN > Petrol Engine 2.6 (MS85) _S8_ Sedan 88KW
    • 1971 - 1972 > TOYOTA > CROWN > Petrol Engine 2.6 (MS65) _S6_ Sedan 88KW
    • 1971 - 1974 > TOYOTA > CROWN > Petrol Engine 2.6 (MS63) _S6_ Wagon 88KW
    • 1979 - 1983 > TOYOTA > HILUX > Petrol Engine 2.0 4WD (RN46, RN36) _N3_,_N4_ Ute 65KW
    • 1979 - 1983 > TOYOTA > HILUX > Petrol Engine 2.0 (RN31, RN41) _N3_,_N4_ Ute 65KW
    • 1979 - 1983 > TOYOTA > HILUX > Diesel 2.2 D (LN40, LN30) _N3_,_N4_ Ute 49KW
    • 1977 - 1981 > TOYOTA > CRESSIDA > Petrol Engine 2.6 (MX36) _X3_ Wagon 112KW
    • 1977 - 1980 > TOYOTA > CRESSIDA > Petrol Engine 2.6 (MX32) _X3_ Sedan 112KW
    • 1973 - 1977 > TOYOTA > CELICA > Petrol Engine 2.0 (RA28, RA23) _A2_ Coupe 72KW
    • 1979 - 1983 > TOYOTA > STOUT > Petrol Engine 2.0 (RK110) _K11_ Ute 70KW
