Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

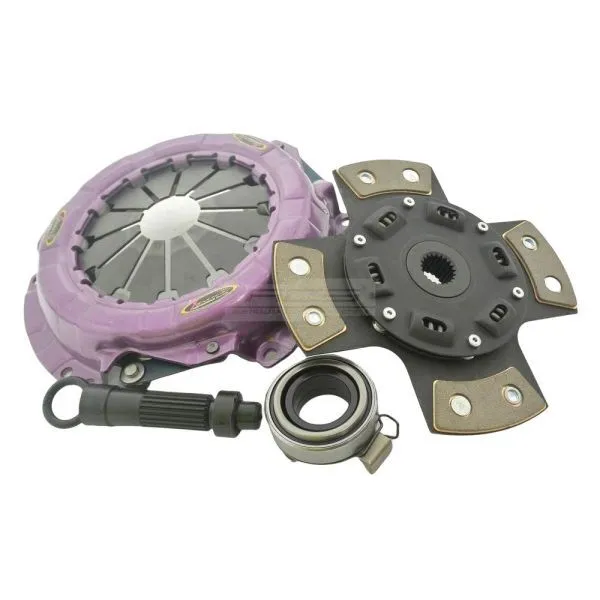

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    23,8x21T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    390

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.8 i LG Hatchback 85KW
    • 1991 - 1994 > HOLDEN > NOVA > Petrol Engine 1.6 i LF Sedan 75KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.6 i LG Sedan 78KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.8 i LG Sedan 85KW
    • 1991 - 1994 > HOLDEN > NOVA > Petrol Engine 1.6 LF Hatchback 75KW
    • 1992 - 1994 > HOLDEN > NOVA > Petrol Engine 1.8 LF Hatchback 85KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.6 LG Hatchback 78KW
    • 2003 - 2010 > LOTUS > ELISE > Petrol Engine 1.8 Convertible 99KW
    • 2006 - 2016 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP93) _P9_ Sedan 80KW
    • 2005 - 2011 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP91R) _P9_ Hatchback 80KW
    • 2010 - 2020 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP131R) _P13_ Hatchback 80KW
    • 1991 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 EFI (AE92, AE93) _E9_ Hatchback 85KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122) _E12_ Sedan 100KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122) _E12_ Wagon 100KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 VVTi (ZZE122R) _E12_ Hatchback 100KW
    • 1987 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE92) _E9_ Hatchback 102KW
    • 1987 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE92) _E9_ Sedan 102KW
    • 1991 - 1998 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE101) _E10_ Sedan 117KW
    • 1998 - 2000 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE111) _E11_ Sedan 115KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.6 i (AE101) _E10_,AE102 Hatchback 78KW
    • 1992 - 1997 > TOYOTA > COROLLA > Petrol Engine 1.6 EFi (AE92, AE93) _E9_ Hatchback 85KW
    • 1992 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.8 i (AE96) _E9_ Hatchback 85KW
    • 1992 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE93) _E9_ Hatchback 100KW
    • 1997 - 2002 > TOYOTA > COROLLA > Petrol Engine 1.8 (AE112) _E11_ Sedan 85KW
    • 1998 - 2001 > TOYOTA > COROLLA > Petrol Engine 1.8 (AE112) _E11_ Hatchback 85KW
    • 1991 - 1995 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE101) _E10_ Sedan 76KW
    • 1992 - 1997 > TOYOTA > COROLLA > Petrol Engine 1.8 i (AE102) _E10_ Sedan 85KW
    • 2012 - 2017 > TOYOTA > COROLLA > Petrol Engine 1.5 (NZE161G) _E16_ Wagon 80KW
    • 2005 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122_, ZZE122R) _E12_ Hatchback 93KW
    • 2005 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122_, ZZE122R) _E12_ Wagon 93KW
    • 1988 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.5 (AE91, EE90) _E9_ Sedan 69KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE102) _E10_,AE102 Hatchback 85KW
    • 1988 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.5 (AE91) _E9_ Hatchback 69KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE102) _E10_ Hatchback 85KW
    • 1995 - 2000 > TOYOTA > COROLLA LEVIN / SPRINTER TRUENO > Petrol Engine 1.6 (AE111) _E11_ Coupe 121KW
    • 1987 - 1992 > TOYOTA > CORONA > Petrol Engine 1.5 (AT170) ASAT170 Sedan 69KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    23,8x21T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    390

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.8 i LG Hatchback 85KW
    • 1991 - 1994 > HOLDEN > NOVA > Petrol Engine 1.6 i LF Sedan 75KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.6 i LG Sedan 78KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.8 i LG Sedan 85KW
    • 1991 - 1994 > HOLDEN > NOVA > Petrol Engine 1.6 LF Hatchback 75KW
    • 1992 - 1994 > HOLDEN > NOVA > Petrol Engine 1.8 LF Hatchback 85KW
    • 1994 - 1997 > HOLDEN > NOVA > Petrol Engine 1.6 LG Hatchback 78KW
    • 2003 - 2010 > LOTUS > ELISE > Petrol Engine 1.8 Convertible 99KW
    • 2006 - 2016 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP93) _P9_ Sedan 80KW
    • 2005 - 2011 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP91R) _P9_ Hatchback 80KW
    • 2010 - 2020 > TOYOTA > YARIS > Petrol Engine 1.5 (NCP131R) _P13_ Hatchback 80KW
    • 1991 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 EFI (AE92, AE93) _E9_ Hatchback 85KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122) _E12_ Sedan 100KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122) _E12_ Wagon 100KW
    • 2001 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 VVTi (ZZE122R) _E12_ Hatchback 100KW
    • 1987 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE92) _E9_ Hatchback 102KW
    • 1987 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE92) _E9_ Sedan 102KW
    • 1991 - 1998 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE101) _E10_ Sedan 117KW
    • 1998 - 2000 > TOYOTA > COROLLA > Petrol Engine 1.6 i 20V (AE111) _E11_ Sedan 115KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.6 i (AE101) _E10_,AE102 Hatchback 78KW
    • 1992 - 1997 > TOYOTA > COROLLA > Petrol Engine 1.6 EFi (AE92, AE93) _E9_ Hatchback 85KW
    • 1992 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.8 i (AE96) _E9_ Hatchback 85KW
    • 1992 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE93) _E9_ Hatchback 100KW
    • 1997 - 2002 > TOYOTA > COROLLA > Petrol Engine 1.8 (AE112) _E11_ Sedan 85KW
    • 1998 - 2001 > TOYOTA > COROLLA > Petrol Engine 1.8 (AE112) _E11_ Hatchback 85KW
    • 1991 - 1995 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE101) _E10_ Sedan 76KW
    • 1992 - 1997 > TOYOTA > COROLLA > Petrol Engine 1.8 i (AE102) _E10_ Sedan 85KW
    • 2012 - 2017 > TOYOTA > COROLLA > Petrol Engine 1.5 (NZE161G) _E16_ Wagon 80KW
    • 2005 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122_, ZZE122R) _E12_ Hatchback 93KW
    • 2005 - 2007 > TOYOTA > COROLLA > Petrol Engine 1.8 (ZZE122_, ZZE122R) _E12_ Wagon 93KW
    • 1988 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.5 (AE91, EE90) _E9_ Sedan 69KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE102) _E10_,AE102 Hatchback 85KW
    • 1988 - 1991 > TOYOTA > COROLLA > Petrol Engine 1.5 (AE91) _E9_ Hatchback 69KW
    • 1994 - 1999 > TOYOTA > COROLLA > Petrol Engine 1.8 EFi (AE102) _E10_ Hatchback 85KW
    • 1995 - 2000 > TOYOTA > COROLLA LEVIN / SPRINTER TRUENO > Petrol Engine 1.6 (AE111) _E11_ Coupe 121KW
    • 1987 - 1992 > TOYOTA > CORONA > Petrol Engine 1.5 (AT170) ASAT170 Sedan 69KW
