Description

Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

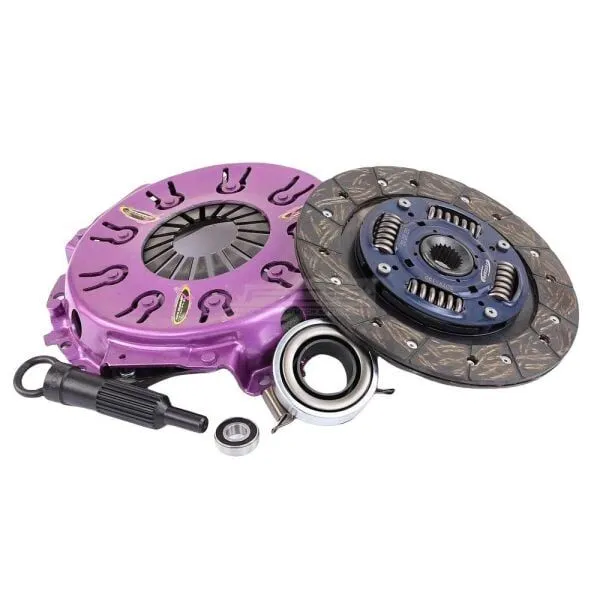

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    23,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    220

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.6 LE Sedan 70KW
    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.6 LE Hatchback 70KW
    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.4 LE Hatchback 60KW
    • 1989 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Sedan 66KW
    • 1989 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Hatchback 66KW
    • 1986 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Hatchback 86KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.3 (AE80) _E8_ Sedan 48KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.3 (AE80) _E8_ Hatchback 48KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Hatchback 58KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Sedan 58KW
    • 1989 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.4 (AE90) _E9_ Hatchback 60KW
    • 1989 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.4 (AE90) _E9_ Sedan 60KW
    • 1987 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Hatchback 76KW
    • 1996 - 1999 > TOYOTA > STARLET > Petrol Engine 1.3 (EP91_, EP91R) _P9_ Hatchback 55KW
    • 1989 - 1996 > TOYOTA > STARLET > Petrol Engine 1.3 (EP82) _P8_ Hatchback 74KW
    • 1996 - 1999 > TOYOTA > STARLET > Petrol Engine 1.3 (EP90) _P9_ Hatchback 53KW
    • 1990 - 1995 > TOYOTA > SERA > Petrol Engine 1.5 (EXY10_, EXY10) EXY1_ Coupe 81KW
    • 1990 - 1995 > TOYOTA > PASEO > Petrol Engine 1.5 (EL44) EL44_ Coupe 74KW
    • 1995 - 1999 > TOYOTA > PASEO > Petrol Engine 1.5 (EL54_, EL54R) _L5_ Coupe 69KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Hatchback 75KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43) _L4_ Hatchback 85KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 75KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 85KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Hatchback 78KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 78KW
    • 1994 - 1999 > TOYOTA > TERCEL > Petrol Engine 1.3 (EL51_, EL51) EL5_ Hatchback 63KW

    Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

    Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    23,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,5

  • Max. transferable engine torque [Nm]:

    220

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.6 LE Sedan 70KW
    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.6 LE Hatchback 70KW
    • 1989 - 1991 > HOLDEN > NOVA > Petrol Engine 1.4 LE Hatchback 60KW
    • 1989 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Sedan 66KW
    • 1989 - 1994 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Hatchback 66KW
    • 1986 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Hatchback 86KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.3 (AE80) _E8_ Sedan 48KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.3 (AE80) _E8_ Hatchback 48KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Hatchback 58KW
    • 1985 - 1989 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE82) _E8_ Sedan 58KW
    • 1989 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.4 (AE90) _E9_ Hatchback 60KW
    • 1989 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.4 (AE90) _E9_ Sedan 60KW
    • 1987 - 1992 > TOYOTA > COROLLA > Petrol Engine 1.6 (AE92) _E9_ Hatchback 76KW
    • 1996 - 1999 > TOYOTA > STARLET > Petrol Engine 1.3 (EP91_, EP91R) _P9_ Hatchback 55KW
    • 1989 - 1996 > TOYOTA > STARLET > Petrol Engine 1.3 (EP82) _P8_ Hatchback 74KW
    • 1996 - 1999 > TOYOTA > STARLET > Petrol Engine 1.3 (EP90) _P9_ Hatchback 53KW
    • 1990 - 1995 > TOYOTA > SERA > Petrol Engine 1.5 (EXY10_, EXY10) EXY1_ Coupe 81KW
    • 1990 - 1995 > TOYOTA > PASEO > Petrol Engine 1.5 (EL44) EL44_ Coupe 74KW
    • 1995 - 1999 > TOYOTA > PASEO > Petrol Engine 1.5 (EL54_, EL54R) _L5_ Coupe 69KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Hatchback 75KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43) _L4_ Hatchback 85KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 75KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 85KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Hatchback 78KW
    • 1990 - 1994 > TOYOTA > CORSA > Petrol Engine 1.5 (EL43_, EL43) _L4_ Sedan 78KW
    • 1994 - 1999 > TOYOTA > TERCEL > Petrol Engine 1.3 (EL51_, EL51) EL5_ Hatchback 63KW
