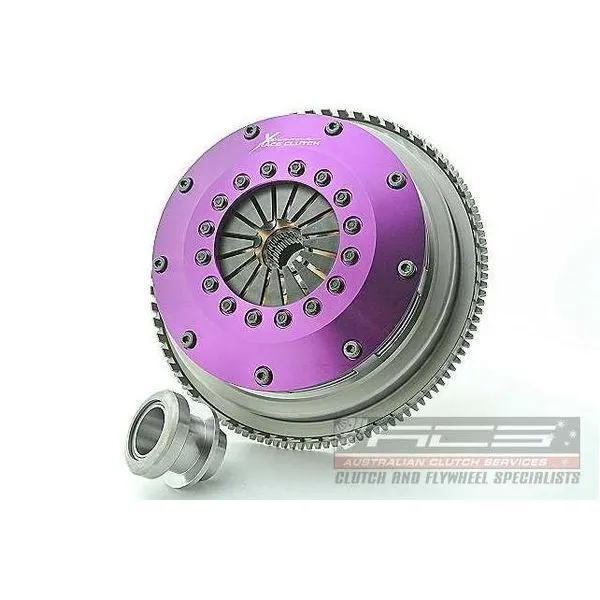

Description

Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,5

  • Max. transferable engine torque [Nm]:

    1220

  • Friction Lining Outer Diameter [mm]:

    184

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1990 - 1992 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 150KW
  • 1989 - 1994 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 153KW
  • 1994 - 1995 > TOYOTA > CELICA > Petrol Engine 2.0 i Turbo 4WD (ST205) _T20_ Coupe 178KW
  • 1989 - 1993 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 165KW
  • 1997 - 2001 > TOYOTA > CALDINA > Petrol Engine 2.0 4WD (ST215W_, ST215W) _T21_ Wagon 140KW
  • 2000 - 2001 > TOYOTA > CALDINA > Petrol Engine 2.0 4WD (ST215W_, ST215W) _T21_ Wagon 192KW
  • 1989 - 1999 > TOYOTA > MR2 > Petrol Engine 2.0 Turbo (SW20_, SW20R) SW2_ Coupe 167KW

Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,5

  • Max. transferable engine torque [Nm]:

    1220

  • Friction Lining Outer Diameter [mm]:

    184

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • 1990 - 1992 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 150KW
  • 1989 - 1994 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 153KW
  • 1994 - 1995 > TOYOTA > CELICA > Petrol Engine 2.0 i Turbo 4WD (ST205) _T20_ Coupe 178KW
  • 1989 - 1993 > TOYOTA > CELICA > Petrol Engine 2.0 4WD (ST185) _T18_ Coupe 165KW
  • 1997 - 2001 > TOYOTA > CALDINA > Petrol Engine 2.0 4WD (ST215W_, ST215W) _T21_ Wagon 140KW
  • 2000 - 2001 > TOYOTA > CALDINA > Petrol Engine 2.0 4WD (ST215W_, ST215W) _T21_ Wagon 192KW
  • 1989 - 1999 > TOYOTA > MR2 > Petrol Engine 2.0 Turbo (SW20_, SW20R) SW2_ Coupe 167KW
