Description

Stage 1AX Sprung Organic Extra Heavy Duty Clutch Kits are recommended for Street use and light track use in vehicles with minor engine modifications.

An increased clamp load over stage 1 kits, recommended for street and light track use in higher powered vehicles.

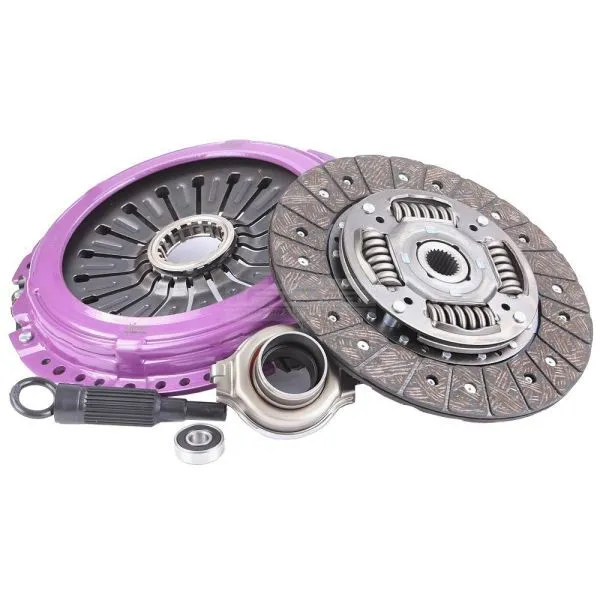

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    15,0

  • Max. transferable engine torque [Nm]:

    690

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1999 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GC Sedan 206KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GFC Coupe 206KW
    • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 AWD (GDB) GD Sedan 206KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GC8) GC Sedan 160KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GF8) GF Wagon 160KW
    • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
    • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
    • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GDB) GD Sedan 195KW
    • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
    • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
    • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
    • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
    • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW

    Stage 1AX Sprung Organic Extra Heavy Duty Clutch Kits are recommended for Street use and light track use in vehicles with minor engine modifications.

    An increased clamp load over stage 1 kits, recommended for street and light track use in higher powered vehicles.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    15,0

  • Max. transferable engine torque [Nm]:

    690

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

    • 1999 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GC Sedan 206KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GFC Coupe 206KW
    • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 AWD (GDB) GD Sedan 206KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GC8) GC Sedan 160KW
    • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GF8) GF Wagon 160KW
    • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
    • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
    • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GDB) GD Sedan 195KW
    • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
    • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
    • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
    • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
    • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
