Description

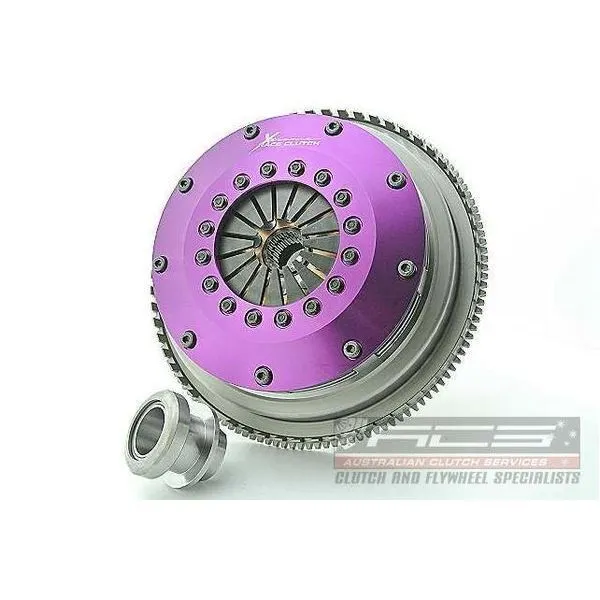

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    19,5

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GDF) GD Sedan 206KW
  • 1999 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GC Sedan 206KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GFC Coupe 206KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 AWD (GDB) GD Sedan 206KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GC8) GC Sedan 160KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GF8) GF Wagon 160KW
  • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
  • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
  • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GDB) GD Sedan 195KW
  • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
  • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 AWD (GDF) GD Sedan 221KW
  • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
  • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2008 - 2013 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GRF) GE,GH,GR,GRF Hatchback 221KW
  • 2011 - 2013 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GVF) GR,GVF Sedan 221KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD GD Sedan 195KW
  • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    19,5

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GDF) GD Sedan 206KW
  • 1999 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GC Sedan 206KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GC8, GM8) GFC Coupe 206KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 AWD (GDB) GD Sedan 206KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GC8) GC Sedan 160KW
  • 1998 - 2000 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GF8) GF Wagon 160KW
  • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
  • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
  • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX STi AWD (GDB) GD Sedan 195KW
  • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
  • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 AWD (GDF) GD Sedan 221KW
  • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
  • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2008 - 2013 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GRF) GE,GH,GR,GRF Hatchback 221KW
  • 2011 - 2013 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD (GVF) GR,GVF Sedan 221KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX STi AWD GD Sedan 195KW
  • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
