Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

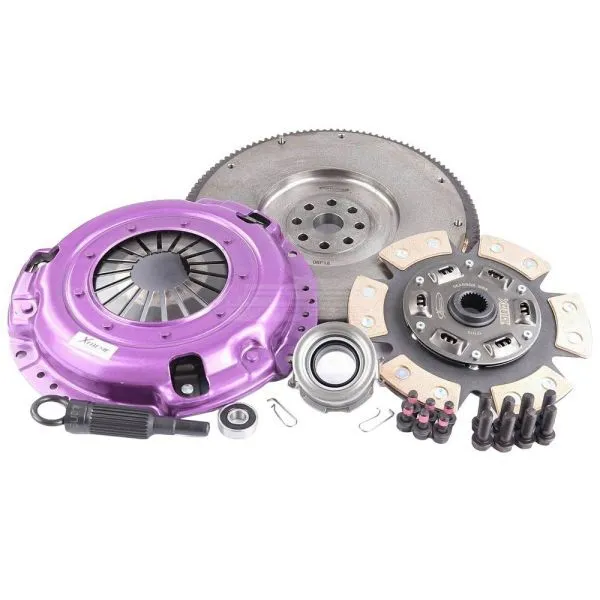

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 i GX AWD (BH5) BH Wagon 92KW
    • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BE5) BE Sedan 92KW
    • 2003 - 2005 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BL5) BL Sedan 101KW
    • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BP5) B13,BP,BP5 Wagon 101KW
    • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.5 AWD (BP9) B13,BP,BP9 Wagon 121KW
    • 2003 - 2007 > SUBARU > LIBERTY > Petrol Engine 2.5 AWD (BL9) BL Sedan 121KW
    • 1996 - 1998 > SUBARU > LIBERTY > Petrol Engine 2.5 i RX Heritage 4WD (BD9) BD Sedan 115KW
    • 1996 - 1998 > SUBARU > LIBERTY > Petrol Engine 2.5 i 4WD (BG9) BG Wagon 115KW
    • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BH9) BE,BH Wagon 115KW
    • 2003 - 2007 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BP9) BL,BP Wagon 121KW
    • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.5 i AWD (GDE) GD Sedan 112KW
    • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.5 i AWD (GGE) GDA,GGA Wagon 112KW
    • 2002 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 112KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,2x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • Max. transferable engine torque [Nm]:

    430

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 i GX AWD (BH5) BH Wagon 92KW
    • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BE5) BE Sedan 92KW
    • 2003 - 2005 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BL5) BL Sedan 101KW
    • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BP5) B13,BP,BP5 Wagon 101KW
    • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.5 AWD (BP9) B13,BP,BP9 Wagon 121KW
    • 2003 - 2007 > SUBARU > LIBERTY > Petrol Engine 2.5 AWD (BL9) BL Sedan 121KW
    • 1996 - 1998 > SUBARU > LIBERTY > Petrol Engine 2.5 i RX Heritage 4WD (BD9) BD Sedan 115KW
    • 1996 - 1998 > SUBARU > LIBERTY > Petrol Engine 2.5 i 4WD (BG9) BG Wagon 115KW
    • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BH9) BE,BH Wagon 115KW
    • 2003 - 2007 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BP9) BL,BP Wagon 121KW
    • 2001 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.5 i AWD (GDE) GD Sedan 112KW
    • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.5 i AWD (GGE) GDA,GGA Wagon 112KW
    • 2002 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 112KW
