Description

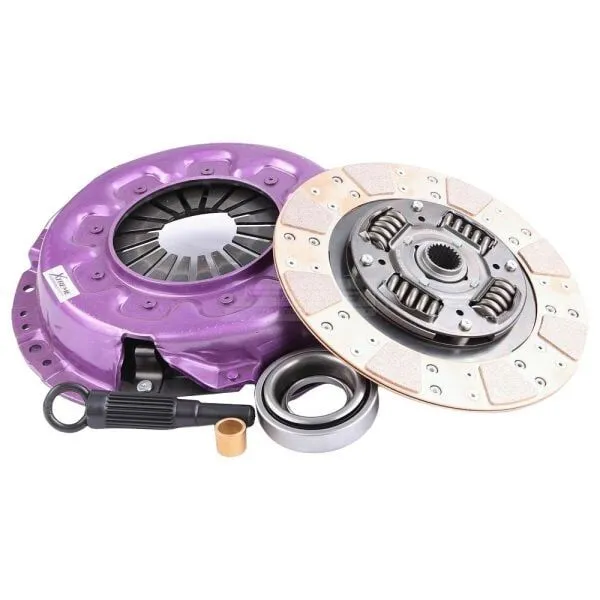

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    750

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Sedan 114KW
    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1988 - 1988 > HOLDEN > CALAIS > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER32) R32 Sedan 132KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Sedan 158KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Sedan 158KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Coupe 147KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Sedan 147KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (SCRR31) R31 Sedan 117KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (WCRR31) R31 Wagon 117KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 153KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 160KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 AWD (HNR32) R32 Coupe 160KW
    • 1991 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ECR32) R32 Coupe 132KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 R32 Sedan 160KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Sedan 105KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Wagon 105KW

    Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    750

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Sedan 114KW
    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1988 - 1988 > HOLDEN > CALAIS > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER32) R32 Sedan 132KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Sedan 158KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Sedan 158KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Coupe 147KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Sedan 147KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (SCRR31) R31 Sedan 117KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (WCRR31) R31 Wagon 117KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 153KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 160KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 AWD (HNR32) R32 Coupe 160KW
    • 1991 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ECR32) R32 Coupe 132KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 R32 Sedan 160KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Sedan 105KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Wagon 105KW
