Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

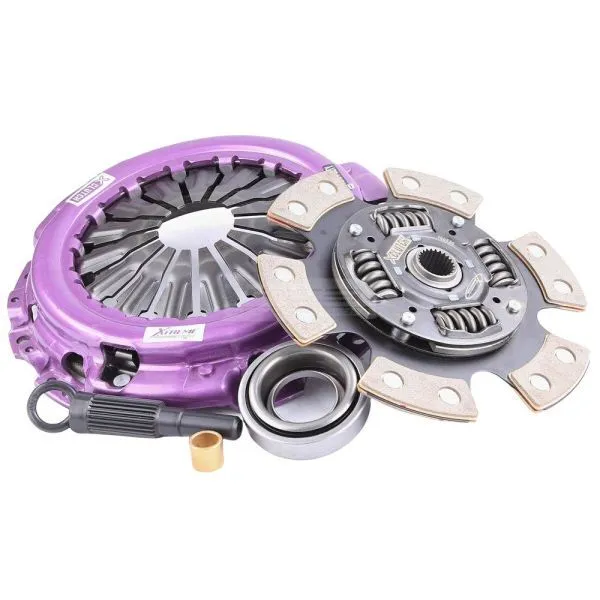

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    750

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Sedan 114KW
    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1988 - 1988 > HOLDEN > CALAIS > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER32) R32 Sedan 132KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Sedan 158KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Sedan 158KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Coupe 147KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Sedan 147KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (SCRR31) R31 Sedan 117KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (WCRR31) R31 Wagon 117KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 153KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 160KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 AWD (HNR32) R32 Coupe 160KW
    • 1991 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ECR32) R32 Coupe 132KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 R32 Sedan 160KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Sedan 105KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Wagon 105KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    750

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Sedan 114KW
    • 1986 - 1988 > HOLDEN > COMMODORE > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1988 - 1988 > HOLDEN > CALAIS > Petrol Engine 3.0 EFi VL Wagon 114KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER32) R32 Sedan 132KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 (ER33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo (HCR32) R32 Sedan 158KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Coupe 140KW
    • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR33) R33 Sedan 140KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Coupe 158KW
    • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo 4x4 (HNR32) R32 Sedan 158KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Coupe 147KW
    • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.5 4x4 (ENR34) R34 Sedan 147KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (SCRR31) R31 Sedan 117KW
    • 1986 - 1990 > NISSAN > SKYLINE > Petrol Engine 3.0 (WCRR31) R31 Wagon 117KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 153KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 160KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 AWD (HNR32) R32 Coupe 160KW
    • 1991 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.5 (ECR32) R32 Coupe 132KW
    • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 R32 Sedan 160KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Sedan 105KW
    • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 3.0 R31 Wagon 105KW
