Description

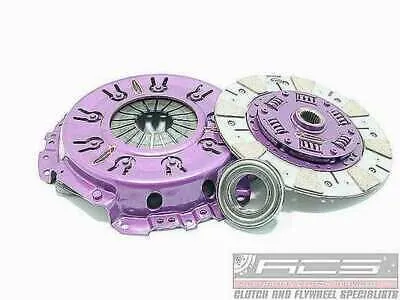

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    530

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1982 - 1983 > NISSAN > URVAN > Petrol Engine 2.0 E23 Van 55KW
  • 1982 - 1986 > NISSAN > URVAN > Petrol Engine 2.0 (E23B) E23 Bus 64KW
  • 1982 - 1998 > NISSAN > URVAN > Petrol Engine 2.0 E23 Van 64KW
  • 1982 - 1984 > NISSAN > UTE > Diesel 2.2 D 4WD 720 Ute 47KW
  • 1980 - 1986 > NISSAN > UTE > Petrol Engine 1.8 720 Ute 59KW
  • 1983 - 1986 > NISSAN > UTE > Petrol Engine 2.2 4WD 720 Ute 71KW
  • 1982 - 1984 > NISSAN > UTE > Diesel 2.2 D 720 Ute 47KW
  • 1980 - 1986 > NISSAN > UTE > Petrol Engine 1.8 4WD 720 Ute 59KW
  • 1983 - 1986 > NISSAN > UTE > Petrol Engine 2.2 720 Ute 71KW
  • 1978 - 1984 > NISSAN > 280ZX > Petrol Engine 2.8 HGS130 Coupe 103KW
  • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR33) R33 Coupe 96KW
  • 1993 - 1998 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR33) R33 Sedan 96KW
  • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 114KW
  • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR32) R32 Sedan 114KW
  • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR32) R32 Sedan 92KW
  • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR34) R34 Coupe 114KW
  • 1998 - 2000 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR34) R34 Sedan 114KW
  • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 4x4 R32 Coupe 114KW
  • 1989 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 4x4 R32 Sedan 114KW
  • 1981 - 1986 > NISSAN > SKYLINE > Petrol Engine 2.4 R30 Sedan 103KW
  • 1981 - 1986 > NISSAN > SKYLINE > Petrol Engine 2.4 R30 Wagon 103KW
  • 1985 - 1990 > NISSAN > SKYLINE > Petrol Engine 2.0 R31 Coupe 116KW
  • 1985 - 1990 > NISSAN > SKYLINE > Petrol Engine 2.0 Turbo R31 Coupe 160KW
  • 1990 - 1993 > NISSAN > SKYLINE > Petrol Engine 2.0 (HCR32) R32 Coupe 116KW
  • 1982 - 1983 > NISSAN > SKYLINE > Petrol Engine 2.4 R30 Hatchback 94KW
  • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 2.0 R31 Sedan 96KW
  • 1985 - 1989 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR31) R31 Sedan 116KW
  • 1987 - 1990 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR31) R31 Sedan 140KW
  • 1986 - 1989 > NISSAN > SKYLINE > Petrol Engine 2.0 (HR31) R31 Coupe 96KW
  • 1977 - 1979 > NISSAN > DATSUN 280C > Petrol Engine 2.8 (P330) 330 Sedan 108KW
  • 1977 - 1979 > NISSAN > DATSUN 280C > Petrol Engine 2.8 280C (WP330) 330 Wagon 99KW
  • 1977 - 1979 > NISSAN > DATSUN 280C > Petrol Engine 2.8 (P330) 330 Sedan 99KW
  • 1980 - 1983 > NISSAN > DATSUN 280C > Petrol Engine 2.8 (P430) 430 Sedan 108KW
  • 1977 - 1979 > NISSAN > DATSUN 280C > Petrol Engine 2.8 280C (WP330) 330 Wagon 108KW
  • 1983 - 1984 > NISSAN > DATSUN 280C > Petrol Engine 2.8 (P430) 430 Sedan 103KW
  • 1974 - 1979 > NISSAN > DATSUN 260Z > Petrol Engine 2.6 2+2 S30 Coupe 119KW
  • 1984 - 1987 > NISSAN > CABSTAR > Petrol Engine 2.2 (F22) F22,H40 Platform/Chassis 71KW
  • 1988 - 1994 > NISSAN > CEFIRO > Petrol Engine 2.0 (LA31, LCA31) A31 Sedan 151KW
  • 1988 - 1994 > NISSAN > CEFIRO > Petrol Engine 2.0 (A31) A31 Sedan 114KW
  • 1976 - 1981 > NISSAN > CABALL > Petrol Engine 2.0 C340 Platform/Chassis 74KW
