Description

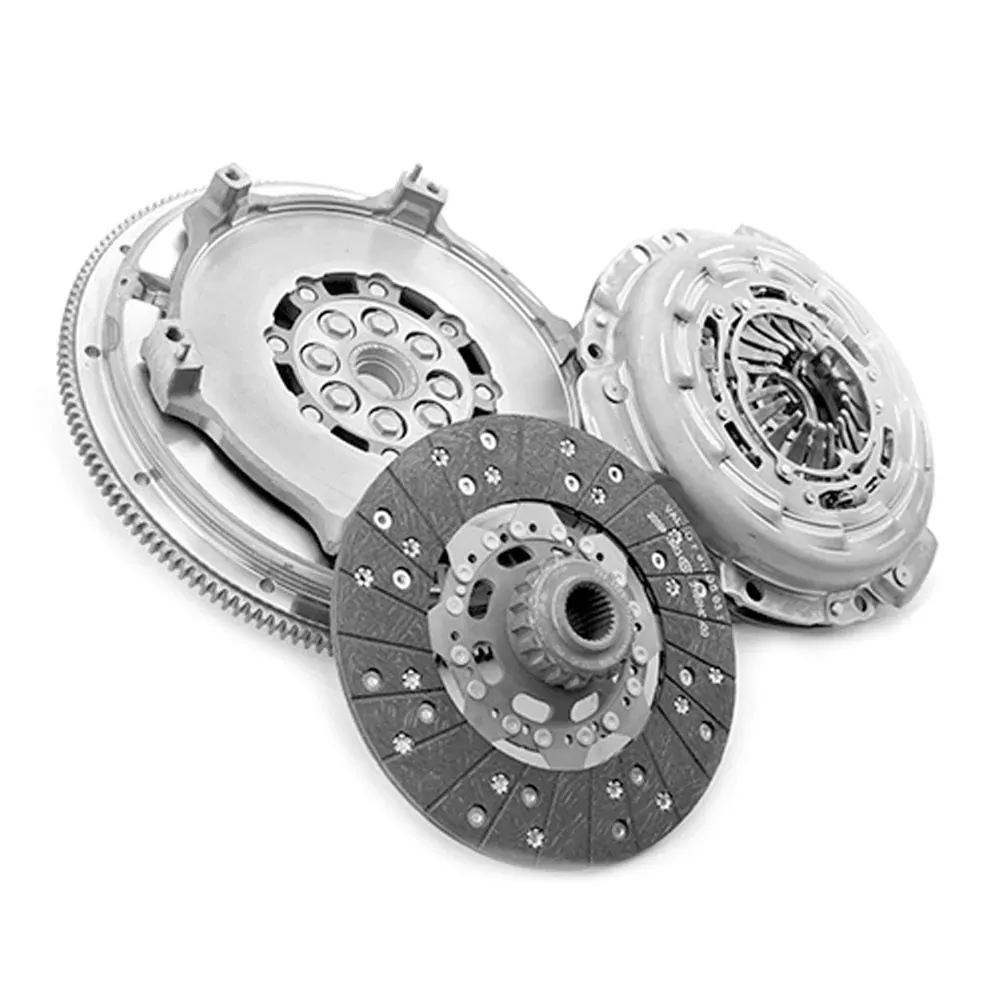

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    22

  • Hub Profile:

    24,5 x 22T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    with release fork

  • Supplementary Article/Info 2:

    with ball stud

  • for flywheel depth [mm]:

    8,0

  • Max. transferable engine torque [Nm]:

    510

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 2005 - 2010 > MAZDA > 5 > Petrol Engine 2.0 (CREW, CR19) CR MPV 107KW
  • 2003 - 2009 > MAZDA > 3 > Petrol Engine 2.3 SP23 (BK3P) BK Hatchback 115KW
  • 2006 - 2009 > MAZDA > 3 > Petrol Engine 2.0 (BKEP) BK Hatchback 110KW
  • 2006 - 2009 > MAZDA > 3 > Petrol Engine 2.0 (BKEP) BK Sedan 110KW
  • 2003 - 2006 > MAZDA > 3 > Petrol Engine 2.0 (BK10F, BKEP) BK Hatchback 104KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BL10) BL Hatchback 122KW
  • 2003 - 2006 > MAZDA > 3 > Petrol Engine 2.0 (BK10F, BKEP) BK Sedan 104KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BL10) BL Sedan 122KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.0 MZR (BLEFW, BL10F) BL Hatchback 108KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.0 MZR (BLEFP, BL10F) BL Sedan 108KW
  • 2011 - 2013 > MAZDA > 3 > Petrol Engine 2.0 SP20 (BLFFW, BL107, BLFFP) BL Hatchback 113KW
  • 2011 - 2013 > MAZDA > 3 > Petrol Engine 2.0 SP20 (BLFFP) BL Sedan 113KW
  • 2003 - 2009 > MAZDA > 3 > Petrol Engine 2.3 SP23 (BK3P) BK Sedan 115KW

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    22

  • Hub Profile:

    24,5 x 22T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    with release fork

  • Supplementary Article/Info 2:

    with ball stud

  • for flywheel depth [mm]:

    8,0

  • Max. transferable engine torque [Nm]:

    510

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • 2005 - 2010 > MAZDA > 5 > Petrol Engine 2.0 (CREW, CR19) CR MPV 107KW
  • 2003 - 2009 > MAZDA > 3 > Petrol Engine 2.3 SP23 (BK3P) BK Hatchback 115KW
  • 2006 - 2009 > MAZDA > 3 > Petrol Engine 2.0 (BKEP) BK Hatchback 110KW
  • 2006 - 2009 > MAZDA > 3 > Petrol Engine 2.0 (BKEP) BK Sedan 110KW
  • 2003 - 2006 > MAZDA > 3 > Petrol Engine 2.0 (BK10F, BKEP) BK Hatchback 104KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BL10) BL Hatchback 122KW
  • 2003 - 2006 > MAZDA > 3 > Petrol Engine 2.0 (BK10F, BKEP) BK Sedan 104KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.5 SP25 (BL10) BL Sedan 122KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.0 MZR (BLEFW, BL10F) BL Hatchback 108KW
  • 2009 - 2013 > MAZDA > 3 > Petrol Engine 2.0 MZR (BLEFP, BL10F) BL Sedan 108KW
  • 2011 - 2013 > MAZDA > 3 > Petrol Engine 2.0 SP20 (BLFFW, BL107, BLFFP) BL Hatchback 113KW
  • 2011 - 2013 > MAZDA > 3 > Petrol Engine 2.0 SP20 (BLFFP) BL Sedan 113KW
  • 2003 - 2009 > MAZDA > 3 > Petrol Engine 2.3 SP23 (BK3P) BK Sedan 115KW
