Description

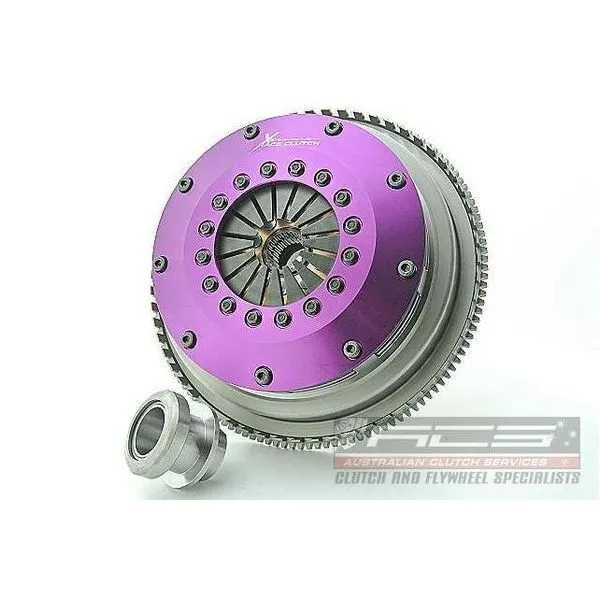

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plates
  • Pressure Plate
  • Concentric Slave Cylinder
  • Flywheel

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1992 - 2002 > MAZDA > RX-7 > Wankel 1.3 Twin Turbo (FD3S, FD1031) FD Coupe 176KW

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plates
  • Pressure Plate
  • Concentric Slave Cylinder
  • Flywheel
  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • 1992 - 2002 > MAZDA > RX-7 > Wankel 1.3 Twin Turbo (FD3S, FD1031) FD Coupe 176KW
