Description

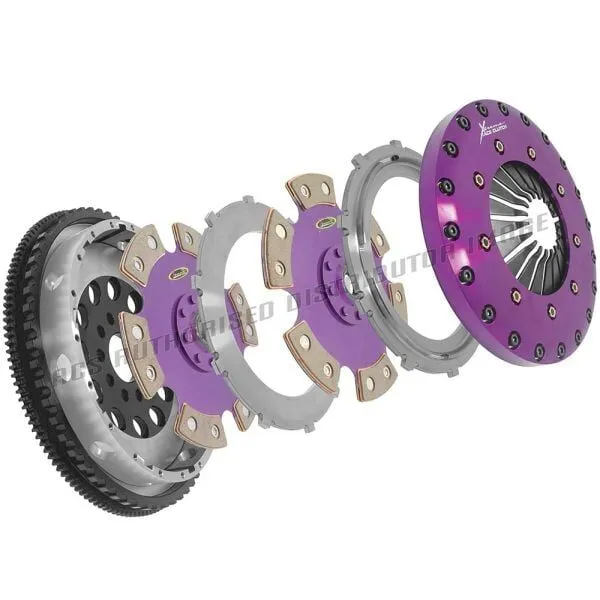

Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    22

  • Hub Profile:

    24,5x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1992 - 1997 > MAZDA > 626 > Petrol Engine 2.0 i (GE10S1) GE Sedan 85KW
    • 1992 - 1997 > MAZDA > 626 > Petrol Engine 2.0 i (GE10S1) GE Hatchback 85KW
    • 1998 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GWEW, GW10S) GW Wagon 93KW
    • 1998 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GFEP, GF10S) GF Hatchback 93KW
    • 1997 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GFEP, GF10S) GF Sedan 93KW
    • 2001 - 2004 > MAZDA > 323 PROTEGÉ > Petrol Engine 2.0 SP20 (BJ10S) BJ Sedan 98KW
    • 2000 - 2004 > MAZDA > 323 ASTINA > Petrol Engine 2.0 SP20 (BJ10S, BJFW) BJ Hatchback 98KW

    Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Discs
    • Intermediate Plate
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    22

  • Hub Profile:

    24,5x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1992 - 1997 > MAZDA > 626 > Petrol Engine 2.0 i (GE10S1) GE Sedan 85KW
    • 1992 - 1997 > MAZDA > 626 > Petrol Engine 2.0 i (GE10S1) GE Hatchback 85KW
    • 1998 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GWEW, GW10S) GW Wagon 93KW
    • 1998 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GFEP, GF10S) GF Hatchback 93KW
    • 1997 - 2002 > MAZDA > 626 > Petrol Engine 2.0 (GFEP, GF10S) GF Sedan 93KW
    • 2001 - 2004 > MAZDA > 323 PROTEGÉ > Petrol Engine 2.0 SP20 (BJ10S) BJ Sedan 98KW
    • 2000 - 2004 > MAZDA > 323 ASTINA > Petrol Engine 2.0 SP20 (BJ10S, BJFW) BJ Hatchback 98KW
