Description

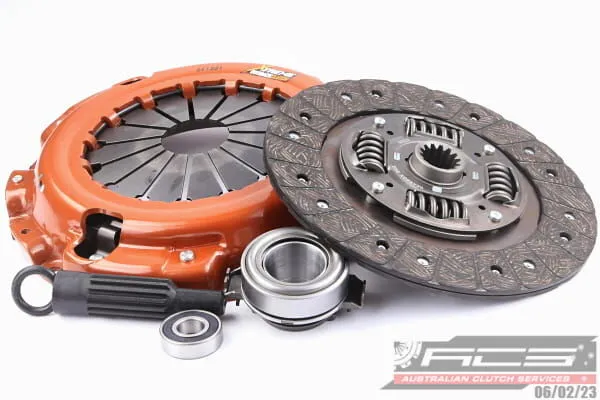

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    14

  • Hub Profile:

    29,0 x 14T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    490

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1991 - 1997 > MITSUBISHI > PAJERO > Petrol Engine 3.0 V6 4WD (V23W, V43W) V3_W,V2_W,V4_W,V5_W,NH,NJ,NK,NL Closed Off-Road Vehicle 110KW
  • 1990 - 1995 > MITSUBISHI > PAJERO > Petrol Engine 3.0 V6 (V23C) V2_C,V4_C Open Off-Road Vehicle 110KW
  • 1988 - 1991 > MITSUBISHI > PAJERO > Petrol Engine 3.0 i 4WD L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 105KW
  • 1990 - 1996 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 109KW
  • 1996 - 2006 > MITSUBISHI > TRITON > Petrol Engine 3.0 4WD (K76T) K6_T,K7_T,MK Platform/Chassis 133KW
  • 1990 - 1996 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD K3_T,K0_T,K1_T,K2_T,MJ,MH,MG,MF,ME Platform/Chassis 109KW
  • 1996 - 2006 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD (K76T) K7_T,K6_T,K5_T,MK,K34T Ute 133KW

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    14

  • Hub Profile:

    29,0 x 14T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    490

  • Friction Lining Outer Diameter [mm]:

    240

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • 1991 - 1997 > MITSUBISHI > PAJERO > Petrol Engine 3.0 V6 4WD (V23W, V43W) V3_W,V2_W,V4_W,V5_W,NH,NJ,NK,NL Closed Off-Road Vehicle 110KW
  • 1990 - 1995 > MITSUBISHI > PAJERO > Petrol Engine 3.0 V6 (V23C) V2_C,V4_C Open Off-Road Vehicle 110KW
  • 1988 - 1991 > MITSUBISHI > PAJERO > Petrol Engine 3.0 i 4WD L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 105KW
  • 1990 - 1996 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 109KW
  • 1996 - 2006 > MITSUBISHI > TRITON > Petrol Engine 3.0 4WD (K76T) K6_T,K7_T,MK Platform/Chassis 133KW
  • 1990 - 1996 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD K3_T,K0_T,K1_T,K2_T,MJ,MH,MG,MF,ME Platform/Chassis 109KW
  • 1996 - 2006 > MITSUBISHI > TRITON > Petrol Engine 3.0 i 4WD (K76T) K7_T,K6_T,K5_T,MK,K34T Ute 133KW
