Description

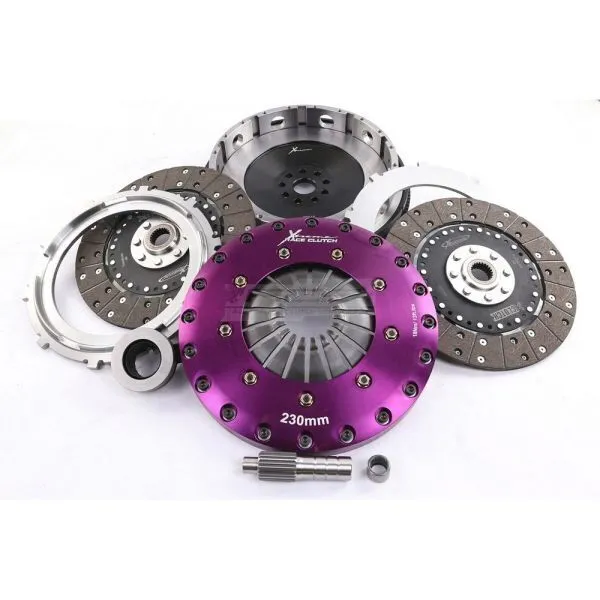

Stage 2A Twin Plate Sprung Organic Clutch Kits are designed for high horsepower street and track
vehicles, offering improved driveability on the street in comparison to the ceramic equivalents.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    19,5

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

Compatibility

  • 2003 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO VIII (CT9A) CZ Sedan 195KW
  • 2005 - 2006 > MITSUBISHI > LANCER > Petrol Engine EVO IX (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 213KW
  • 1998 - 1998 > MITSUBISHI > LANCER > Petrol Engine EVO V (CP9A) CE Sedan 206KW
  • 1999 - 2001 > MITSUBISHI > LANCER > Petrol Engine EVO VI (CP9A) CJ_,CP_,CK_ Sedan 206KW
  • 1996 - 1997 > MITSUBISHI > LANCER > Petrol Engine EVO IV (CN9A) C6_A,C7_A,CA,CB Sedan 206KW
  • 2001 - 2003 > MITSUBISHI > LANCER > Petrol Engine EVO VII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 206KW
  • 2003 - 2005 > MITSUBISHI > LANCER > Petrol Engine EVO VIII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 206KW
  • 1998 - 1998 > MITSUBISHI > LANCER > Petrol Engine EVO V - RS450 Ralliart (CP9A) CE Sedan 336KW
  • 2005 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO (CT9W) CS_W,CT_W,CH Wagon 206KW
  • 2001 - 2003 > MITSUBISHI > LANCER > Petrol Engine EVO VII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 200KW
  • 2005 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO (CT9W) CS_W,CT_W,CH Wagon 200KW

Stage 2A Twin Plate Sprung Organic Clutch Kits are designed for high horsepower street and track
vehicles, offering improved driveability on the street in comparison to the ceramic equivalents.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    19,5

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Organic

  • 2003 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO VIII (CT9A) CZ Sedan 195KW
  • 2005 - 2006 > MITSUBISHI > LANCER > Petrol Engine EVO IX (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 213KW
  • 1998 - 1998 > MITSUBISHI > LANCER > Petrol Engine EVO V (CP9A) CE Sedan 206KW
  • 1999 - 2001 > MITSUBISHI > LANCER > Petrol Engine EVO VI (CP9A) CJ_,CP_,CK_ Sedan 206KW
  • 1996 - 1997 > MITSUBISHI > LANCER > Petrol Engine EVO IV (CN9A) C6_A,C7_A,CA,CB Sedan 206KW
  • 2001 - 2003 > MITSUBISHI > LANCER > Petrol Engine EVO VII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 206KW
  • 2003 - 2005 > MITSUBISHI > LANCER > Petrol Engine EVO VIII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 206KW
  • 1998 - 1998 > MITSUBISHI > LANCER > Petrol Engine EVO V - RS450 Ralliart (CP9A) CE Sedan 336KW
  • 2005 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO (CT9W) CS_W,CT_W,CH Wagon 206KW
  • 2001 - 2003 > MITSUBISHI > LANCER > Petrol Engine EVO VII (CT9A) CS_A,CG,CT_A,CH,CJ Sedan 200KW
  • 2005 - 2007 > MITSUBISHI > LANCER > Petrol Engine EVO (CT9W) CS_W,CT_W,CH Wagon 200KW
