Description

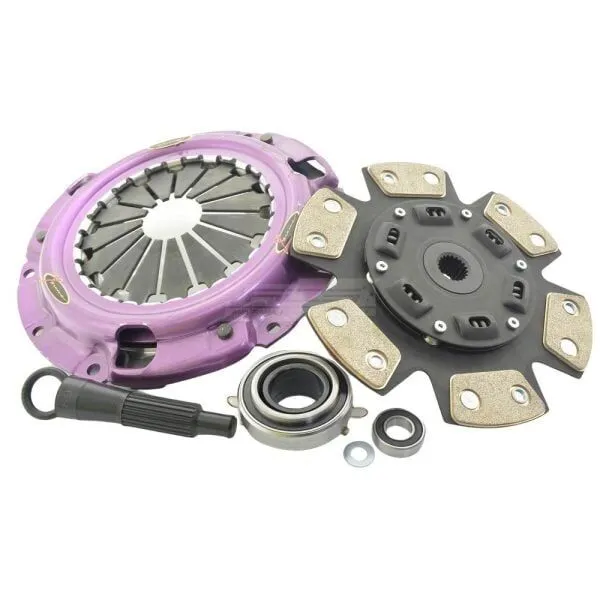

Stage 2R Racing Sprung Ceramic Motorsport upgrades are designed specifically for motorsport applications that require a higher torque capacity than the stage 2 equivalents. Each Stage 2R kit includes an Extra Heavy Duty pressure plate with even higher clamping force and a sprung ceramic friction disc.

These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    15,8

  • Max. transferable engine torque [Nm]:

    820

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

    • Compatibility

    • 1996 - 2000 > MITSUBISHI > GTO > Petrol Engine 3.0 AWD (Z15A) Z1_A Coupe 163KW
    • 1989 - 1996 > MITSUBISHI > GTO > Petrol Engine 3.0 AWD (Z15A) Z1_A Coupe 165KW
    • 1992 - 1993 > MITSUBISHI > LANCER > Petrol Engine EVO I All-wheel Drive (CD9A) CC Sedan 184KW
    • 1995 - 1996 > MITSUBISHI > LANCER > Petrol Engine EVO III All-wheel Drive (CE9A) CC Sedan 198KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i Turbo AWD (CD5A) CC Sedan 141KW
    • 1994 - 1995 > MITSUBISHI > LANCER > Petrol Engine EVO II All-wheel Drive (CE9A) CC Sedan 192KW
    • 1992 - 1994 > MITSUBISHI > LANCER > Petrol Engine 1.8 EVO I AWD (CD5A) CB_A,CD_A,CE_A Sedan 189KW
    • 1990 - 1993 > MITSUBISHI > GALANT > Petrol Engine 2.0 I VR4 Turbo 4WD (E39A, E38A, E33A) E3_A,HG,HH Sedan 148KW

    Stage 2R Racing Sprung Ceramic Motorsport upgrades are designed specifically for motorsport applications that require a higher torque capacity than the stage 2 equivalents. Each Stage 2R kit includes an Extra Heavy Duty pressure plate with even higher clamping force and a sprung ceramic friction disc.

    These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    15,8

  • Max. transferable engine torque [Nm]:

    820

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

    • 1996 - 2000 > MITSUBISHI > GTO > Petrol Engine 3.0 AWD (Z15A) Z1_A Coupe 163KW
    • 1989 - 1996 > MITSUBISHI > GTO > Petrol Engine 3.0 AWD (Z15A) Z1_A Coupe 165KW
    • 1992 - 1993 > MITSUBISHI > LANCER > Petrol Engine EVO I All-wheel Drive (CD9A) CC Sedan 184KW
    • 1995 - 1996 > MITSUBISHI > LANCER > Petrol Engine EVO III All-wheel Drive (CE9A) CC Sedan 198KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i Turbo AWD (CD5A) CC Sedan 141KW
    • 1994 - 1995 > MITSUBISHI > LANCER > Petrol Engine EVO II All-wheel Drive (CE9A) CC Sedan 192KW
    • 1992 - 1994 > MITSUBISHI > LANCER > Petrol Engine 1.8 EVO I AWD (CD5A) CB_A,CD_A,CE_A Sedan 189KW
    • 1990 - 1993 > MITSUBISHI > GALANT > Petrol Engine 2.0 I VR4 Turbo 4WD (E39A, E38A, E33A) E3_A,HG,HH Sedan 148KW
