Description

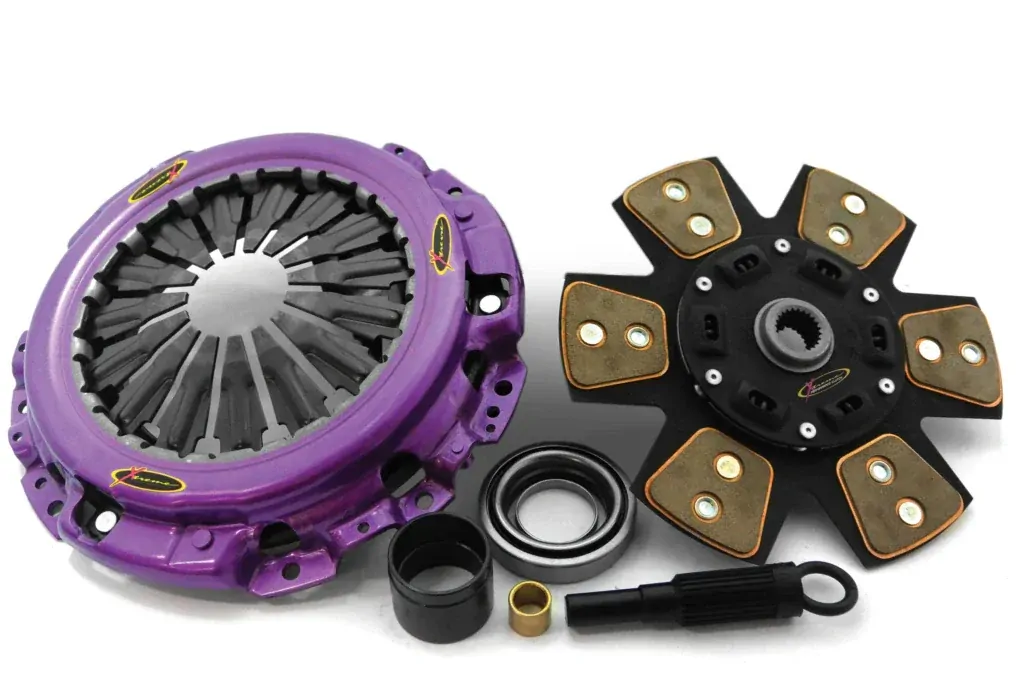

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    15,8

  • Max. transferable engine torque [Nm]:

    630

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
  • 1992 - 1992 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 (N34W) N3_W,N4_W,UF MPV 88KW
  • 1992 - 1998 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 i (N34W) N3_W,N4_W,UF MPV 102KW
  • 1998 - 2004 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 (N84W) N9_W,N8_W,UG MPV 96KW
  • 1991 - 1994 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TR Wagon 120KW
  • 1994 - 1996 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TS Wagon 120KW
  • 1991 - 1994 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TR Sedan 120KW
  • 1994 - 1996 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TS Sedan 120KW

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    15,8

  • Max. transferable engine torque [Nm]:

    630

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
  • 1992 - 1992 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 (N34W) N3_W,N4_W,UF MPV 88KW
  • 1992 - 1998 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 i (N34W) N3_W,N4_W,UF MPV 102KW
  • 1998 - 2004 > MITSUBISHI > NIMBUS > Petrol Engine 2.4 (N84W) N9_W,N8_W,UG MPV 96KW
  • 1991 - 1994 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TR Wagon 120KW
  • 1994 - 1996 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TS Wagon 120KW
  • 1991 - 1994 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TR Sedan 120KW
  • 1994 - 1996 > MITSUBISHI > MAGNA > Petrol Engine 3.0 i TS Sedan 120KW
