Description

Stage 2R Racing Sprung Ceramic Motorsport upgrades are designed specifically for motorsport applications that require a higher torque capacity than the stage 2 equivalents. Each Stage 2R kit includes an Extra Heavy Duty pressure plate with even higher clamping force and a sprung ceramic friction disc.

These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

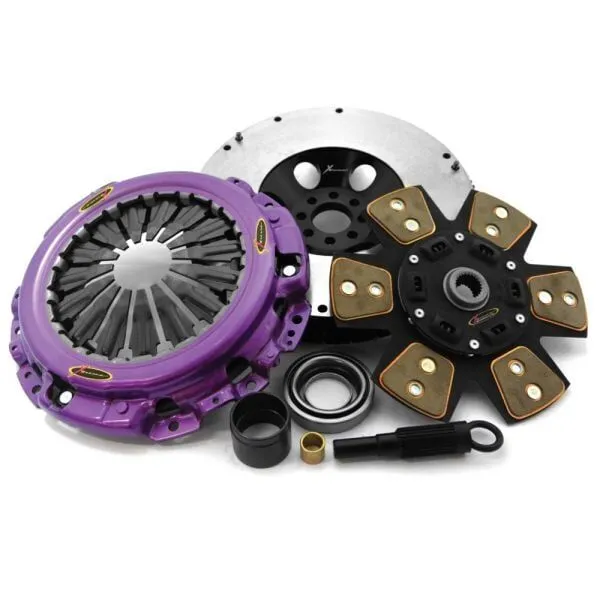

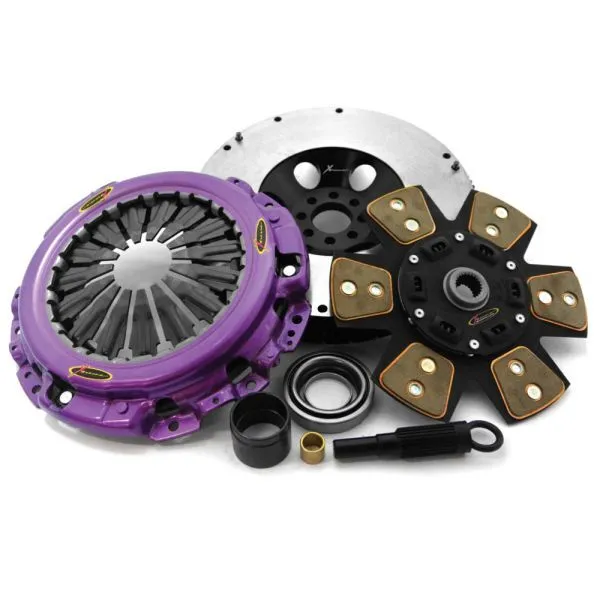

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    510

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1990 - 1993 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-2 Sedan 107KW
    • 1993 - 1998 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-3 Sedan 107KW
    • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
    • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Sedan 77KW
    • 1993 - 1995 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E55A) E5_A,E7_A,E8_A,HJ Hatchback 90KW
    • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Hatchback 77KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 114KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 93KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Sedan 83KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Sedan 93KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Wagon 83KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 90KW
    • 1983 - 1984 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 110KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CB5A) CB_A,CD_A,CE_A Sedan 86KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CC5A) CC Coupe 86KW
    • 1995 - 2000 > PROTON > M21 > Petrol Engine 1.8 EXi (C99D) Coupe 103KW

    Stage 2R Racing Sprung Ceramic Motorsport upgrades are designed specifically for motorsport applications that require a higher torque capacity than the stage 2 equivalents. Each Stage 2R kit includes an Extra Heavy Duty pressure plate with even higher clamping force and a sprung ceramic friction disc.

    These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    510

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1990 - 1993 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-2 Sedan 107KW
    • 1993 - 1998 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-3 Sedan 107KW
    • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
    • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Sedan 77KW
    • 1993 - 1995 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E55A) E5_A,E7_A,E8_A,HJ Hatchback 90KW
    • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Hatchback 77KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 114KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 93KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Sedan 83KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Sedan 93KW
    • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Wagon 83KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 90KW
    • 1983 - 1984 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 110KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CB5A) CB_A,CD_A,CE_A Sedan 86KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CC5A) CC Coupe 86KW
    • 1995 - 2000 > PROTON > M21 > Petrol Engine 1.8 EXi (C99D) Coupe 103KW
