Description

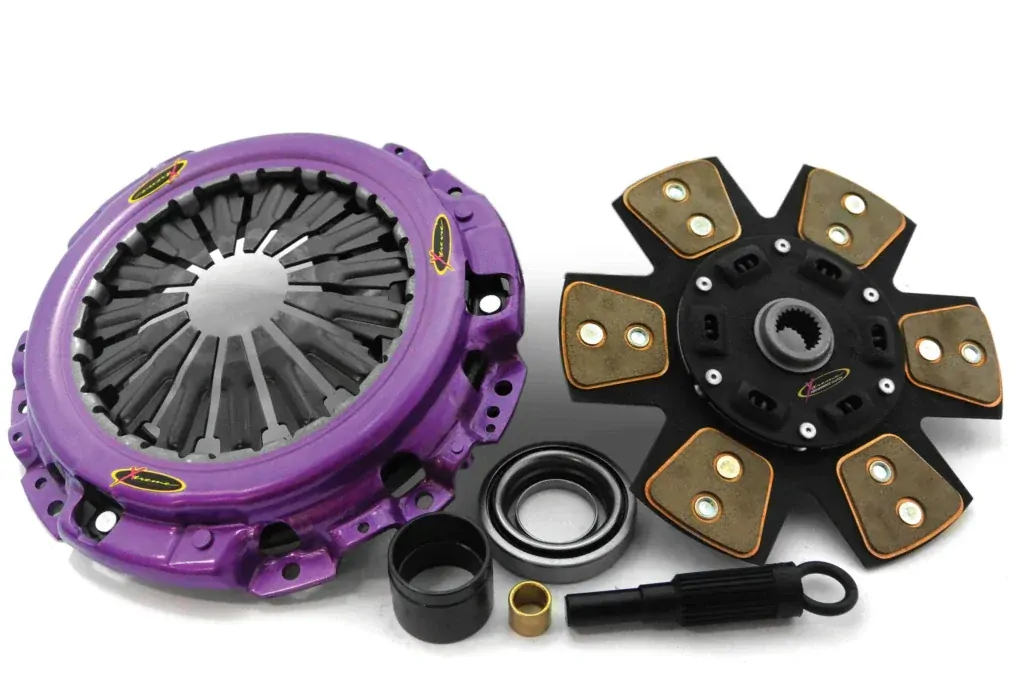

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    370

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1990 - 1993 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-2 Sedan 107KW
  • 1993 - 1998 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-3 Sedan 107KW
  • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
  • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Sedan 77KW
  • 1993 - 1995 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E55A) E5_A,E7_A,E8_A,HJ Hatchback 90KW
  • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Hatchback 77KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 114KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 93KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Sedan 83KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Sedan 93KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Wagon 83KW
  • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 90KW
  • 1983 - 1984 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 110KW
  • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CB5A) CB_A,CD_A,CE_A Sedan 86KW
  • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CC5A) CC Coupe 86KW
  • 1995 - 2000 > PROTON > M21 > Petrol Engine 1.8 EXi (C99D) Coupe 103KW

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,4x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    370

  • Friction Lining Outer Diameter [mm]:

    215

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • 1990 - 1993 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-2 Sedan 107KW
  • 1993 - 1998 > HYUNDAI > SONATA > Petrol Engine 3.0 i V6 Y-3 Sedan 107KW
  • 1988 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 GTI 16V (E39A, E38A, E33A) E3_A,HG,HH Hatchback 107KW
  • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Sedan 77KW
  • 1993 - 1995 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E55A) E5_A,E7_A,E8_A,HJ Hatchback 90KW
  • 1989 - 1992 > MITSUBISHI > GALANT > Petrol Engine 2.0 (E39A, E38A, E33A) E3_A,HG,HH Hatchback 77KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 114KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Wagon 93KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Sedan 83KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 i TN Sedan 93KW
  • 1987 - 1989 > MITSUBISHI > MAGNA > Petrol Engine 2.6 TN Wagon 83KW
  • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 90KW
  • 1983 - 1984 > MITSUBISHI > CORDIA > Petrol Engine 1.8 Turbo ECi (A213A) A21_A,AA,AB,AC Coupe 110KW
  • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CB5A) CB_A,CD_A,CE_A Sedan 86KW
  • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.8 i (CC5A) CC Coupe 86KW
  • 1995 - 2000 > PROTON > M21 > Petrol Engine 1.8 EXi (C99D) Coupe 103KW
