Description

Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

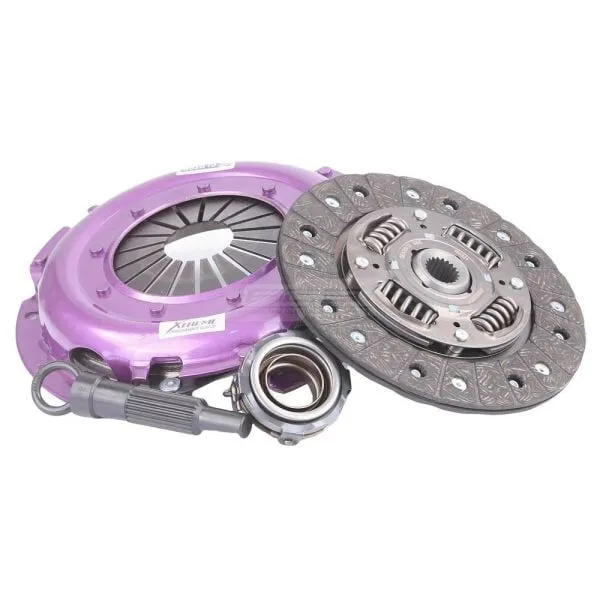

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,8x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    190

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1991 - 1994 > HYUNDAI > EXCEL > Petrol Engine i X-2 Hatchback Van 62KW
    • 1990 - 1994 > HYUNDAI > EXCEL > Petrol Engine 1.5 i X-2 Hatchback 62KW
    • 1990 - 1995 > HYUNDAI > EXCEL > Petrol Engine 1.5 i X-2 Sedan 62KW
    • 1991 - 1995 > HYUNDAI > LANTRA > Petrol Engine 1.6 i.e. 16V J-1 Sedan 84KW
    • 1990 - 1991 > HYUNDAI > S COUPE > Petrol Engine 1.5 i SLC Coupe 62KW
    • 1991 - 1996 > HYUNDAI > S COUPE > Petrol Engine 1.5 i SLC Coupe 65KW
    • 1983 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 GSL (A215A) AA,AB Coupe 66KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 (A215A) A21_A,AA,AB,AC Coupe 70KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 (A215A) A21_A,AA,AB,AC Coupe 62KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 62KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CC Coupe 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CA_A,CC_A Hatchback 65KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 i (C63A) C6_A,C7_A,CA,CB Hatchback 71KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.6 i (CA4A) CA_A,CC_A Hatchback 71KW
    • 1988 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 56KW
    • 1988 - 1989 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 61KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 61KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.6 i (C63A) C6_A,C7_A,CA,CB Hatchback 90KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 i (C62A) C6_A,C7_A,CA,CB Sedan 71KW
    • 1985 - 1987 > MITSUBISHI > NIMBUS > Petrol Engine 1.8 GLX (D05W) D0_V/W,UA,UB,UC MPV 62KW
    • 1984 - 1985 > MITSUBISHI > NIMBUS > Petrol Engine 1.8 (D05W, D05V) D0_V/W,UA,UB,UC MPV 70KW
    • 1987 - 1992 > MITSUBISHI > NIMBUS > Petrol Engine 2.0 (D04W) D0_V/W,UA,UB,UC MPV 70KW
    • 1983 - 1988 > MITSUBISHI > MIRAGE > Petrol Engine 1.5 (C12A) A17_,C10,RC Sedan 64KW
    • 1996 - 2000 > PROTON > WIRA > Petrol Engine 416 GLXi C9_C,C9_S Hatchback 83KW
    • 1995 - 2000 > PROTON > WIRA > Petrol Engine 416 i C9_C,C9_S Hatchback 70KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 316 GLXi C9_M Hatchback 83KW
    • 1996 - 2004 > PROTON > PERSONA > Petrol Engine 316 C9_M Hatchback 70KW
    • 2008 - 2016 > PROTON > PERSONA > Petrol Engine 1.6 (CM6S) Sedan 82KW
    • 2001 - 2005 > PROTON > IMPIAN - WAJA > Petrol Engine 1.6 (CF1S) Sedan 76KW
    • 2000 - 2006 > PROTON > SATRIA > Petrol Engine 1.5 (C97M) C9_M Hatchback 64KW
    • 1997 - 2006 > PROTON > SATRIA > Petrol Engine 1.5 C9_M Hatchback 66KW
    • 1997 - 2000 > PROTON > SATRIA > Petrol Engine 1.6 C9_M Hatchback 70KW
    • 2000 - 2000 > PROTON > SATRIA > Petrol Engine 1.6 C9_M Hatchback 83KW
    • 2004 - 2012 > PROTON > GEN 2 > Petrol Engine 1.6 (CM6L) CM_ Hatchback 82KW
    • 2002 - 2008 > PROTON > JUMBUCK > Petrol Engine 1.5 (C97PN) Ute 64KW
    • 2009 - 2011 > PROTON > SATRIA NEO > Petrol Engine 1.6 Hatchback 81KW
    • 2008 - 2013 > PROTON > S16 > Petrol Engine 1.6 (BT6S) Sedan 82KW

    Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

    Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,8x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    190

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Organic

    • 1991 - 1994 > HYUNDAI > EXCEL > Petrol Engine i X-2 Hatchback Van 62KW
    • 1990 - 1994 > HYUNDAI > EXCEL > Petrol Engine 1.5 i X-2 Hatchback 62KW
    • 1990 - 1995 > HYUNDAI > EXCEL > Petrol Engine 1.5 i X-2 Sedan 62KW
    • 1991 - 1995 > HYUNDAI > LANTRA > Petrol Engine 1.6 i.e. 16V J-1 Sedan 84KW
    • 1990 - 1991 > HYUNDAI > S COUPE > Petrol Engine 1.5 i SLC Coupe 62KW
    • 1991 - 1996 > HYUNDAI > S COUPE > Petrol Engine 1.5 i SLC Coupe 65KW
    • 1983 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 GSL (A215A) AA,AB Coupe 66KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 (A215A) A21_A,AA,AB,AC Coupe 70KW
    • 1984 - 1989 > MITSUBISHI > CORDIA > Petrol Engine 1.8 (A215A) A21_A,AA,AB,AC Coupe 62KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 62KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CC Coupe 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CA_A,CC_A Hatchback 65KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 i (C63A) C6_A,C7_A,CA,CB Hatchback 71KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.6 i (CA4A) CA_A,CC_A Hatchback 71KW
    • 1988 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 56KW
    • 1988 - 1989 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 61KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 61KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.6 i (C63A) C6_A,C7_A,CA,CB Hatchback 90KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 i (C62A) C6_A,C7_A,CA,CB Sedan 71KW
    • 1985 - 1987 > MITSUBISHI > NIMBUS > Petrol Engine 1.8 GLX (D05W) D0_V/W,UA,UB,UC MPV 62KW
    • 1984 - 1985 > MITSUBISHI > NIMBUS > Petrol Engine 1.8 (D05W, D05V) D0_V/W,UA,UB,UC MPV 70KW
    • 1987 - 1992 > MITSUBISHI > NIMBUS > Petrol Engine 2.0 (D04W) D0_V/W,UA,UB,UC MPV 70KW
    • 1983 - 1988 > MITSUBISHI > MIRAGE > Petrol Engine 1.5 (C12A) A17_,C10,RC Sedan 64KW
    • 1996 - 2000 > PROTON > WIRA > Petrol Engine 416 GLXi C9_C,C9_S Hatchback 83KW
    • 1995 - 2000 > PROTON > WIRA > Petrol Engine 416 i C9_C,C9_S Hatchback 70KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 316 GLXi C9_M Hatchback 83KW
    • 1996 - 2004 > PROTON > PERSONA > Petrol Engine 316 C9_M Hatchback 70KW
    • 2008 - 2016 > PROTON > PERSONA > Petrol Engine 1.6 (CM6S) Sedan 82KW
    • 2001 - 2005 > PROTON > IMPIAN - WAJA > Petrol Engine 1.6 (CF1S) Sedan 76KW
    • 2000 - 2006 > PROTON > SATRIA > Petrol Engine 1.5 (C97M) C9_M Hatchback 64KW
    • 1997 - 2006 > PROTON > SATRIA > Petrol Engine 1.5 C9_M Hatchback 66KW
    • 1997 - 2000 > PROTON > SATRIA > Petrol Engine 1.6 C9_M Hatchback 70KW
    • 2000 - 2000 > PROTON > SATRIA > Petrol Engine 1.6 C9_M Hatchback 83KW
    • 2004 - 2012 > PROTON > GEN 2 > Petrol Engine 1.6 (CM6L) CM_ Hatchback 82KW
    • 2002 - 2008 > PROTON > JUMBUCK > Petrol Engine 1.5 (C97PN) Ute 64KW
    • 2009 - 2011 > PROTON > SATRIA NEO > Petrol Engine 1.6 Hatchback 81KW
    • 2008 - 2013 > PROTON > S16 > Petrol Engine 1.6 (BT6S) Sedan 82KW
