Description

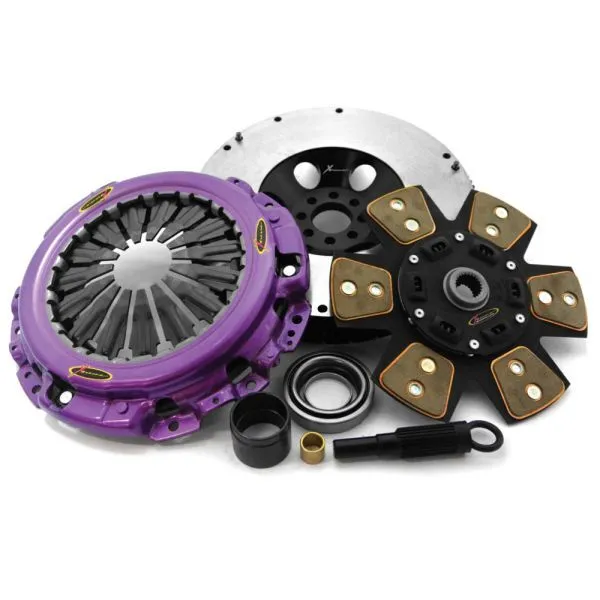

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    20

  • Hub Profile:

    22,8x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    290

  • Friction Lining Outer Diameter [mm]:

    185

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1986 - 1989 > HYUNDAI > EXCEL > Petrol Engine 1.5 (X-1) X-1 Hatchback 53KW
    • 1985 - 1989 > HYUNDAI > EXCEL > Petrol Engine 1.5 X-1 Sedan 53KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CB2A) CB_A,CD_A,CE_A Sedan 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CC Coupe 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CA_A,CC_A Hatchback 65KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 65KW
    • 1988 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 56KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 56KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 61KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 65KW
    • 1984 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.4 (A156) A15_,RC Sedan 54KW
    • 1984 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.6 (A157) A15_,RC Sedan 59KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.4 C1_A,C6_A,RD,RE Sedan 56KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.6 C1_A,C6_A,RD,RE Sedan 59KW
    • 1981 - 1982 > MITSUBISHI > COLT > Petrol Engine 1.4 GLX,GT (A152, A156) A15_A,RA Hatchback 51KW
    • 1982 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.4 (C12A) C1_A,RB,RC Hatchback 54KW
    • 1982 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.6 (C13A) C1_A,RB,RC Hatchback 59KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.4 C5_A,RD,RE Hatchback 56KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.6 C5_A,RD,RE Hatchback 59KW
    • 1995 - 1996 > PROTON > WIRA > Petrol Engine 415 GLi/GLSi C9_C,C9_S Hatchback 66KW
    • 1995 - 1996 > PROTON > WIRA > Petrol Engine 1.5 (C97) Sedan 67KW
    • 1995 - 1996 > PROTON > PERSONA > Petrol Engine 415 GLi/GLSi C9_S Sedan 66KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 313i C9_M Hatchback 55KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 315 GLi/GLSi C9_M Hatchback 66KW
    • 2000 - 2006 > PROTON > SATRIA > Petrol Engine 1.3 C9_M Hatchback 55KW
    • 1999 - 2002 > PROTON > SATRIA > Petrol Engine 1.3 C9_M Hatchback 55KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    20

  • Hub Profile:

    22,8x20T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    290

  • Friction Lining Outer Diameter [mm]:

    185

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1986 - 1989 > HYUNDAI > EXCEL > Petrol Engine 1.5 (X-1) X-1 Hatchback 53KW
    • 1985 - 1989 > HYUNDAI > EXCEL > Petrol Engine 1.5 X-1 Sedan 53KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CB2A) CB_A,CD_A,CE_A Sedan 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CC Coupe 65KW
    • 1992 - 1996 > MITSUBISHI > LANCER > Petrol Engine 1.5 (CC2A) CA_A,CC_A Hatchback 65KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 65KW
    • 1988 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Sedan 56KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 56KW
    • 1989 - 1990 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 61KW
    • 1990 - 1992 > MITSUBISHI > LANCER > Petrol Engine 1.5 (C62A) C6_A,C7_A,CA,CB Hatchback 65KW
    • 1984 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.4 (A156) A15_,RC Sedan 54KW
    • 1984 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.6 (A157) A15_,RC Sedan 59KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.4 C1_A,C6_A,RD,RE Sedan 56KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.6 C1_A,C6_A,RD,RE Sedan 59KW
    • 1981 - 1982 > MITSUBISHI > COLT > Petrol Engine 1.4 GLX,GT (A152, A156) A15_A,RA Hatchback 51KW
    • 1982 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.4 (C12A) C1_A,RB,RC Hatchback 54KW
    • 1982 - 1986 > MITSUBISHI > COLT > Petrol Engine 1.6 (C13A) C1_A,RB,RC Hatchback 59KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.4 C5_A,RD,RE Hatchback 56KW
    • 1986 - 1990 > MITSUBISHI > COLT > Petrol Engine 1.6 C5_A,RD,RE Hatchback 59KW
    • 1995 - 1996 > PROTON > WIRA > Petrol Engine 415 GLi/GLSi C9_C,C9_S Hatchback 66KW
    • 1995 - 1996 > PROTON > WIRA > Petrol Engine 1.5 (C97) Sedan 67KW
    • 1995 - 1996 > PROTON > PERSONA > Petrol Engine 415 GLi/GLSi C9_S Sedan 66KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 313i C9_M Hatchback 55KW
    • 1996 - 2000 > PROTON > PERSONA > Petrol Engine 315 GLi/GLSi C9_M Hatchback 66KW
    • 2000 - 2006 > PROTON > SATRIA > Petrol Engine 1.3 C9_M Hatchback 55KW
    • 1999 - 2002 > PROTON > SATRIA > Petrol Engine 1.3 C9_M Hatchback 55KW
