Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

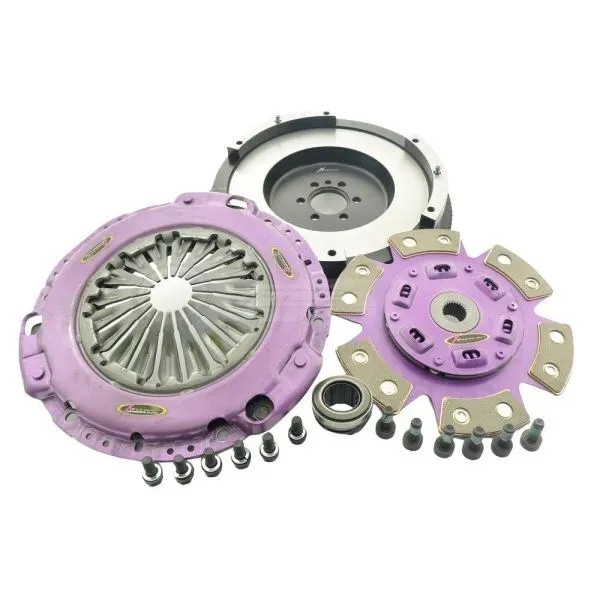

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    22

  • Hub Profile:

    28,0x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    17,0

  • Max. transferable engine torque [Nm]:

    570

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 2006 - 2010 > MINI > MINI > Petrol Engine Cooper S R56 Hatchback 128KW
    • 2010 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R58 Coupe 155KW
    • 2008 - 2010 > MINI > MINI > Petrol Engine Cooper S R57 Convertible 128KW
    • 2007 - 2013 > MINI > MINI > Petrol Engine John Cooper Works R56 Hatchback 155KW
    • 2008 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R57 Convertible 155KW
    • 2010 - 2015 > MINI > MINI > Petrol Engine Cooper S R57 Convertible 135KW
    • 2011 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R59 Convertible 155KW
    • 2012 - 2013 > MINI > MINI > Petrol Engine John Cooper Works GP R56 Hatchback 160KW
    • 2007 - 2010 > MINI > MINI CLUBMAN > Petrol Engine Cooper S R55 Wagon 128KW
    • 2007 - 2014 > MINI > MINI CLUBMAN > Petrol Engine John Cooper Works R55 Wagon 155KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    22

  • Hub Profile:

    28,0x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch:

    Conversion from dual-mass flywheel to single-mass flywheel

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    17,0

  • Max. transferable engine torque [Nm]:

    570

  • Friction Lining Outer Diameter [mm]:

    225

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

    • 2006 - 2010 > MINI > MINI > Petrol Engine Cooper S R56 Hatchback 128KW
    • 2010 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R58 Coupe 155KW
    • 2008 - 2010 > MINI > MINI > Petrol Engine Cooper S R57 Convertible 128KW
    • 2007 - 2013 > MINI > MINI > Petrol Engine John Cooper Works R56 Hatchback 155KW
    • 2008 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R57 Convertible 155KW
    • 2010 - 2015 > MINI > MINI > Petrol Engine Cooper S R57 Convertible 135KW
    • 2011 - 2015 > MINI > MINI > Petrol Engine John Cooper Works R59 Convertible 155KW
    • 2012 - 2013 > MINI > MINI > Petrol Engine John Cooper Works GP R56 Hatchback 160KW
    • 2007 - 2010 > MINI > MINI CLUBMAN > Petrol Engine Cooper S R55 Wagon 128KW
    • 2007 - 2014 > MINI > MINI CLUBMAN > Petrol Engine John Cooper Works R55 Wagon 155KW
