Description

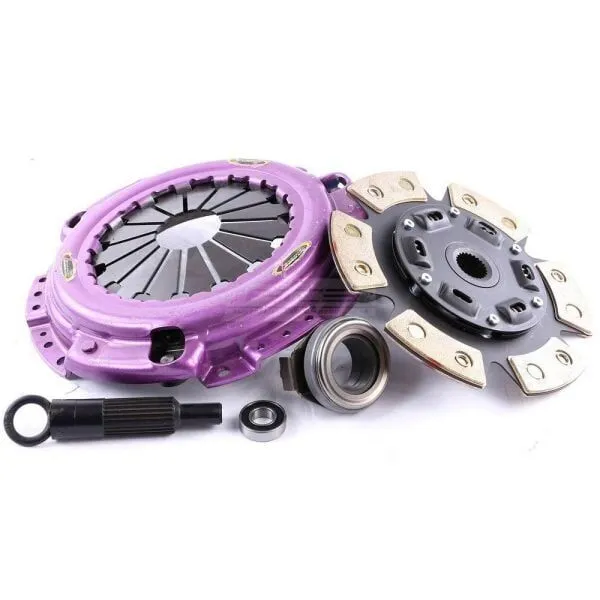

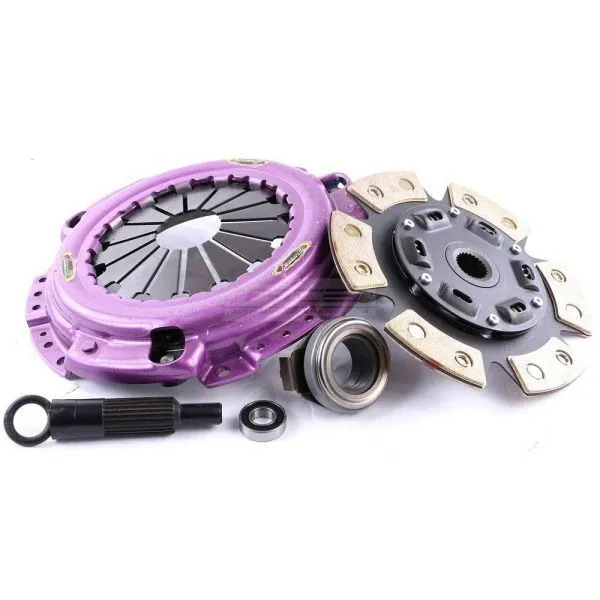

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    26,0x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    1,7

  • Max. transferable engine torque [Nm]:

    450

  • Friction Lining Outer Diameter [mm]:

    220

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1991 - 1996 > HONDA > PRELUDE > Petrol Engine 2.3 i 16V (BB2) BB_ Coupe 118KW
    • 1996 - 2001 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB6, BB8) BB_ Coupe 147KW
    • 1991 - 1996 > HONDA > PRELUDE > Petrol Engine 2.2 S (BA8) BB_ Coupe 96KW
    • 1994 - 1997 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB1, BB4) BB_ Coupe 142KW
    • 1997 - 2001 > HONDA > PRELUDE > Petrol Engine 2.2 Si (BB5) BB_ Coupe 118KW
    • 1997 - 1998 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB6) BB_ Coupe 142KW
    • 2000 - 2003 > HONDA > ACCORD > Petrol Engine 2.3 (CL3, S86) CK,CG,CH,CF,CL Sedan 113KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 EXi (CD5) CC,CD Sedan 103KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 Vti (CD5) CC,CD Sedan 107KW
    • 1997 - 1999 > HONDA > ACCORD > Petrol Engine 2.3 (CG5, CF9, CF0, CF1, CF2) CK,CG,CH,CF,CL Sedan 110KW
    • 1989 - 1990 > HONDA > ACCORD > Petrol Engine 2.2 (CB3, CB7) CB Sedan 103KW
    • 1995 - 1996 > HONDA > ACCORD > Petrol Engine 2.2 (CE1) CE,CF_,CD Sedan 107KW
    • 1992 - 1993 > HONDA > ACCORD > Petrol Engine 2.2 (CB8, CB9) CB,CC Wagon 103KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 (CE1) CE Wagon 107KW
    • 1999 - 2002 > HONDA > TORNEO > Petrol Engine 1.8 (CF3) CF Sedan 103KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    26,0x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    1,7

  • Max. transferable engine torque [Nm]:

    450

  • Friction Lining Outer Diameter [mm]:

    220

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

    • 1991 - 1996 > HONDA > PRELUDE > Petrol Engine 2.3 i 16V (BB2) BB_ Coupe 118KW
    • 1996 - 2001 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB6, BB8) BB_ Coupe 147KW
    • 1991 - 1996 > HONDA > PRELUDE > Petrol Engine 2.2 S (BA8) BB_ Coupe 96KW
    • 1994 - 1997 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB1, BB4) BB_ Coupe 142KW
    • 1997 - 2001 > HONDA > PRELUDE > Petrol Engine 2.2 Si (BB5) BB_ Coupe 118KW
    • 1997 - 1998 > HONDA > PRELUDE > Petrol Engine 2.2 VTi-R (BB6) BB_ Coupe 142KW
    • 2000 - 2003 > HONDA > ACCORD > Petrol Engine 2.3 (CL3, S86) CK,CG,CH,CF,CL Sedan 113KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 EXi (CD5) CC,CD Sedan 103KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 Vti (CD5) CC,CD Sedan 107KW
    • 1997 - 1999 > HONDA > ACCORD > Petrol Engine 2.3 (CG5, CF9, CF0, CF1, CF2) CK,CG,CH,CF,CL Sedan 110KW
    • 1989 - 1990 > HONDA > ACCORD > Petrol Engine 2.2 (CB3, CB7) CB Sedan 103KW
    • 1995 - 1996 > HONDA > ACCORD > Petrol Engine 2.2 (CE1) CE,CF_,CD Sedan 107KW
    • 1992 - 1993 > HONDA > ACCORD > Petrol Engine 2.2 (CB8, CB9) CB,CC Wagon 103KW
    • 1993 - 1997 > HONDA > ACCORD > Petrol Engine 2.2 (CE1) CE Wagon 107KW
    • 1999 - 2002 > HONDA > TORNEO > Petrol Engine 1.8 (CF3) CF Sedan 103KW
