Description

Xtreme Clutch stage 1 T performance upgrades are designed and engineered to provide significant increases in torque capacity whilst retaining excellent driveability for street use. These kits offer a steel backed organic friction disc for improved strength in street applications. The 100 series kit includes a performance pressure plate with increased clamping force and a sprung or rigid organic friction disc (depending on the vehicle application). The 100 series kit also includes an alignment tool, spigot bearing/bush and release bearing where applicable. Offering a wide range of upgrades for specific vehicle uses and performance goals, the Xtreme Clutch range of upgrade clutch kits are engineered to provide significant increases in torque holding capability and are available in a range of sizes and friction material types to provide the ideal balance between torque capacity, heat capacity and driveability. As a division of Australian Clutch Services, Xtreme Clutch takes over 30 years of experience in the Australian clutch market as well as highly qualified technicians and a comprehensive research and development facility to ensure their products provide the highest performance and reliability. The range incorporates an extensive variety of kits to suit thousands of applications as well as a comprehensive range of performance accessories and hydraulics.

Features

  • Performance clutch upgrade for increased torque capacity

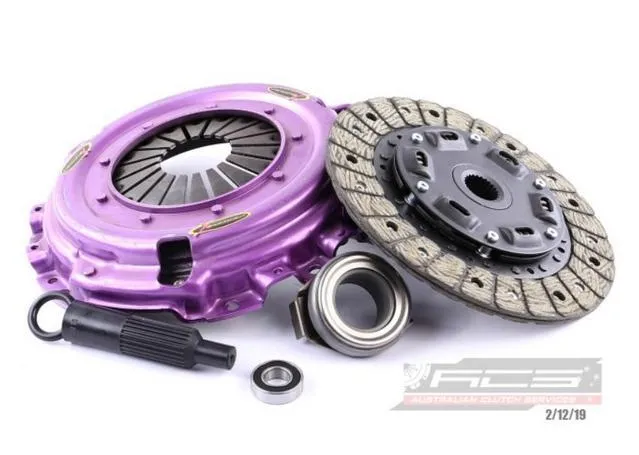

  • Kit includes heavy duty pressure plate and friction disc
  • Steel backed organic friction disc for street driveability and strength

Tech Specs

Flywheel Step (mm) +2.75
Clutch Disc Diameter (mm) 220
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Disc Type Sprung
Friction Material Organic-Steel Backed Facing
Stage 1
Recommended Use Street
Clamping Force % Increase 45%
Torque (Nm) Inc FOS 270
Torque (ftlbs) Inc FOS 200
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Weight (kg) 6.3

Specifications

Brand Xtreme Clutch
Part Number KHN22005-1T
Warranty Manufacturers warranty

Compatibility

  • 1995 - 1998 > HONDA > CIVIC > Petrol Engine 1.6 VTi (EK4) EJ,EK Hatchback 118KW
  • 1999 - 2000 > HONDA > CIVIC > Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 118KW
  • 1997 - 2000 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 94KW
  • 1999 - 2002 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 108KW
  • 1999 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 Type-R (DC2) DC Coupe 140KW
  • 1993 - 1999 > HONDA > INTEGRA > Petrol Engine 1.8 VTiR (DC2) DC Coupe 125KW
  • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 101KW
  • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 107KW

Xtreme Clutch stage 1 T performance upgrades are designed and engineered to provide significant increases in torque capacity whilst retaining excellent driveability for street use. These kits offer a steel backed organic friction disc for improved strength in street applications. The 100 series kit includes a performance pressure plate with increased clamping force and a sprung or rigid organic friction disc (depending on the vehicle application). The 100 series kit also includes an alignment tool, spigot bearing/bush and release bearing where applicable. Offering a wide range of upgrades for specific vehicle uses and performance goals, the Xtreme Clutch range of upgrade clutch kits are engineered to provide significant increases in torque holding capability and are available in a range of sizes and friction material types to provide the ideal balance between torque capacity, heat capacity and driveability. As a division of Australian Clutch Services, Xtreme Clutch takes over 30 years of experience in the Australian clutch market as well as highly qualified technicians and a comprehensive research and development facility to ensure their products provide the highest performance and reliability. The range incorporates an extensive variety of kits to suit thousands of applications as well as a comprehensive range of performance accessories and hydraulics.

Features

  • Performance clutch upgrade for increased torque capacity
  • Kit includes heavy duty pressure plate and friction disc
  • Steel backed organic friction disc for street driveability and strength

Tech Specs

Flywheel Step (mm) +2.75
Clutch Disc Diameter (mm) 220
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Disc Type Sprung
Friction Material Organic-Steel Backed Facing
Stage 1
Recommended Use Street
Clamping Force % Increase 45%
Torque (Nm) Inc FOS 270
Torque (ftlbs) Inc FOS 200
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Weight (kg) 6.3



Brand Xtreme Clutch
Part Number KHN22005-1T
Warranty Manufacturers warranty
  • 1995 - 1998 > HONDA > CIVIC > Petrol Engine 1.6 VTi (EK4) EJ,EK Hatchback 118KW
  • 1999 - 2000 > HONDA > CIVIC > Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 118KW
  • 1997 - 2000 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 94KW
  • 1999 - 2002 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 108KW
  • 1999 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 Type-R (DC2) DC Coupe 140KW
  • 1993 - 1999 > HONDA > INTEGRA > Petrol Engine 1.8 VTiR (DC2) DC Coupe 125KW
  • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 101KW
  • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 107KW
