Description

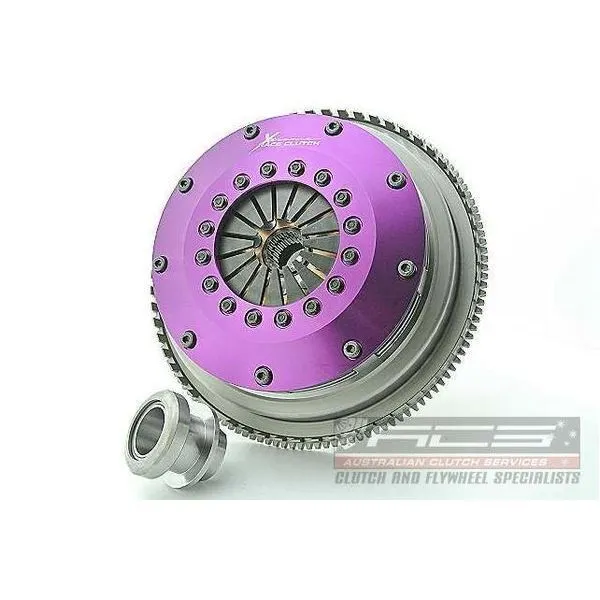

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plates
  • Pressure Plate
  • Concentric Slave Cylinder
  • Flywheel

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,5

  • Max. transferable engine torque [Nm]:

    1220

  • Friction Lining Outer Diameter [mm]:

    184

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 2017 - 2020 > HYUNDAI > i30 > Petrol Engine 2.0 N PDE,PD,PDEN Hatchback 202KW
  • 2017 - 2020 > HYUNDAI > i30 > Petrol Engine 2.0 N PD,PDE,PDEN Hatchback 202KW
  • 2021 - 2025 > HYUNDAI > i30 > Petrol Engine 2.0 N PDE,PD,PDEN Hatchback 206KW

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plates
  • Pressure Plate
  • Concentric Slave Cylinder
  • Flywheel
  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,5

  • Max. transferable engine torque [Nm]:

    1220

  • Friction Lining Outer Diameter [mm]:

    184

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • 2017 - 2020 > HYUNDAI > i30 > Petrol Engine 2.0 N PDE,PD,PDEN Hatchback 202KW
  • 2017 - 2020 > HYUNDAI > i30 > Petrol Engine 2.0 N PD,PDE,PDEN Hatchback 202KW
  • 2021 - 2025 > HYUNDAI > i30 > Petrol Engine 2.0 N PDE,PD,PDEN Hatchback 206KW
