Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

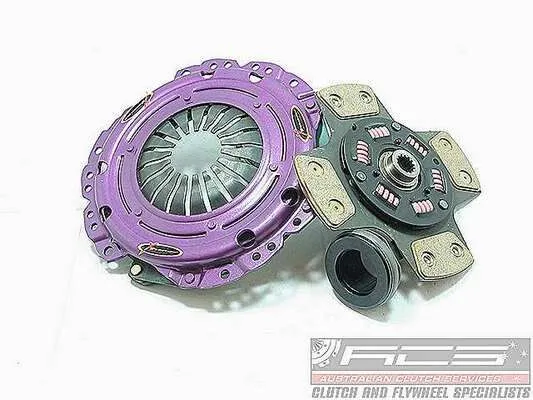

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    14

  • Hub Profile:

    18,8x14T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    19,0

  • Max. transferable engine torque [Nm]:

    340

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 1995 - 1998 > HOLDEN > ASTRA > Petrol Engine 1.6 CD TR Hatchback 74KW
  • 1995 - 1998 > HOLDEN > ASTRA > Petrol Engine 1.6 CD TR Sedan 74KW
  • 1994 - 1998 > HOLDEN > BARINA > Petrol Engine 1.6 i SB Hatchback 78KW

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    14

  • Hub Profile:

    18,8x14T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    19,0

  • Max. transferable engine torque [Nm]:

    340

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    recessed flywheel

  • Friction lining material:

    Ceramic

  • 1995 - 1998 > HOLDEN > ASTRA > Petrol Engine 1.6 CD TR Hatchback 74KW
  • 1995 - 1998 > HOLDEN > ASTRA > Petrol Engine 1.6 CD TR Sedan 74KW
  • 1994 - 1998 > HOLDEN > BARINA > Petrol Engine 1.6 i SB Hatchback 78KW
