Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

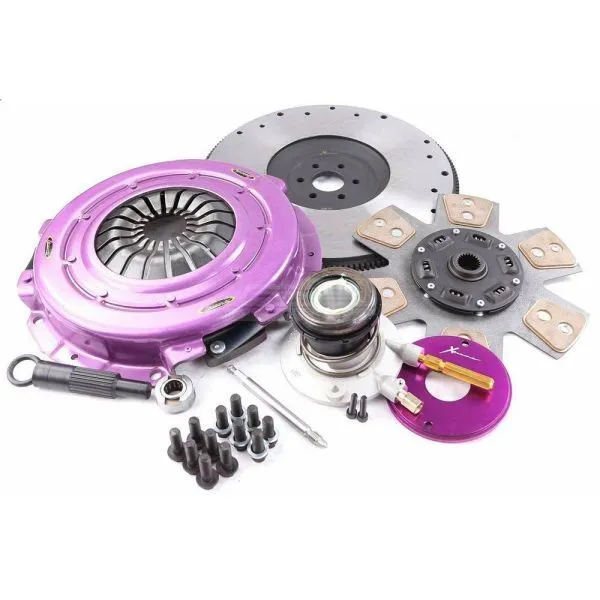

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Concentric Slave Cylinder
  • Flywheel

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • Max. transferable engine torque [Nm]:

    1060

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo XR6 FG Platform/Chassis 270KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo G6/G6E/XR6 FG Sedan 270KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo XR6 FG Ute 270KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 XR6 Turbo FG X Ute 270KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo FG X Sedan 270KW
    • 2008 - 2014 > FPV > FALCON > Petrol Engine 4.0 F6/F6-E FG Sedan 310KW
    • 2008 - 2014 > FPV > FALCON > Petrol Engine 4.0 F6 FG Ute 310KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Concentric Slave Cylinder
    • Flywheel
  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with central slave cylinder

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • Max. transferable engine torque [Nm]:

    1060

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo XR6 FG Platform/Chassis 270KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo G6/G6E/XR6 FG Sedan 270KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i Turbo XR6 FG Ute 270KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 XR6 Turbo FG X Ute 270KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo FG X Sedan 270KW
    • 2008 - 2014 > FPV > FALCON > Petrol Engine 4.0 F6/F6-E FG Sedan 310KW
    • 2008 - 2014 > FPV > FALCON > Petrol Engine 4.0 F6 FG Ute 310KW
