Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

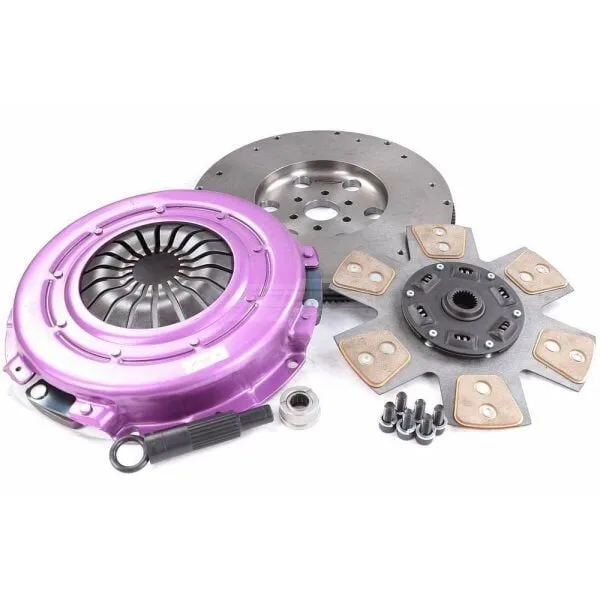

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    1020

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 2010 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 EcoLPi G6/G6E/XR6 FG Sedan 198KW
    • 2002 - 2005 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BA Sedan 240KW
    • 2002 - 2005 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BA Ute 240KW
    • 2005 - 2008 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BF Sedan 245KW
    • 2005 - 2008 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BF Ute 245KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XT/G6/G6E/XR6 FG Sedan 195KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i FG Ute 195KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i FG Platform/Chassis 195KW
    • 2011 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 LPi FG Platform/Chassis 198KW
    • 2011 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 LPi FG Ute 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6, G6E FG X Ute 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Ute 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 FG X Platform/Chassis 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Platform/Chassis 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6, G6E FG X Sedan 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Sedan 198KW
    • 2005 - 2008 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.0 i Turbo BF Sedan 245KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    23

  • Hub Profile:

    26,0x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    1020

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 2010 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 EcoLPi G6/G6E/XR6 FG Sedan 198KW
    • 2002 - 2005 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BA Sedan 240KW
    • 2002 - 2005 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BA Ute 240KW
    • 2005 - 2008 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BF Sedan 245KW
    • 2005 - 2008 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 Turbo BF Ute 245KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XT/G6/G6E/XR6 FG Sedan 195KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i FG Ute 195KW
    • 2008 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i FG Platform/Chassis 195KW
    • 2011 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 LPi FG Platform/Chassis 198KW
    • 2011 - 2014 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 LPi FG Ute 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6, G6E FG X Ute 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Ute 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6 FG X Platform/Chassis 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Platform/Chassis 198KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i XR6, G6E FG X Sedan 195KW
    • 2014 - 2016 > FORD AUSTRALIA > FALCON > Petrol Engine 4.0 i EcoLPI XR6/G6E FG X Sedan 198KW
    • 2005 - 2008 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.0 i Turbo BF Sedan 245KW
