Description

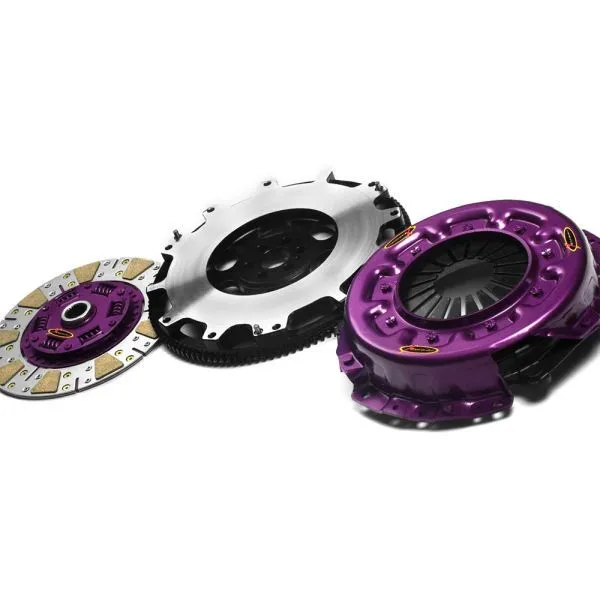

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    10

  • Hub Profile:

    27,0x10T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    840

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1968 - 1969 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZB Sedan 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZC Sedan 157KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZD Sedan 164KW
    • 1972 - 1973 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZF Sedan 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZG Sedan 179KW
    • 1979 - 1982 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XD Sedan 140KW
    • 1979 - 1982 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XD Wagon 140KW
    • 1982 - 1983 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XE Wagon 140KW
    • 1982 - 1983 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XE Sedan 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XT Wagon 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XW Wagon 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XY Wagon 165KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XY Sedan 165KW
    • 1979 - 1982 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XD Ute 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XT Sedan 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XW Sedan 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Sedan 164KW
    • 1969 - 1970 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XW Ute 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Ute 164KW
    • 1979 - 1982 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XD Wagon Van 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 GT (XT) XT Sedan 171KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XT Ute 157KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Wagon 164KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Coupe 151KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Coupe 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Coupe 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Wagon Van 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Ute 179KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Wagon Van 164KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Ute 179KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Ute 151KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Wagon Van 179KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Wagon Van 151KW
    • 1968 - 1973 > FORD USA > MUSTANG > Petrol Engine 4.1 Convertible 116KW
    • 1968 - 1973 > FORD USA > MUSTANG > Petrol Engine 4.1 Coupe 116KW
    • 1971 - 1971 > FORD USA > MUSTANG > Petrol Engine 4.1 Convertible 106KW
    • 1971 - 1971 > FORD USA > MUSTANG > Petrol Engine 4.1 Coupe 106KW

    Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    10

  • Hub Profile:

    27,0x10T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    840

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1968 - 1969 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZB Sedan 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZC Sedan 157KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZD Sedan 164KW
    • 1972 - 1973 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZF Sedan 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FAIRLANE > Petrol Engine 4.9 V8 302ci ZG Sedan 179KW
    • 1979 - 1982 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XD Sedan 140KW
    • 1979 - 1982 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XD Wagon 140KW
    • 1982 - 1983 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XE Wagon 140KW
    • 1982 - 1983 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XE Sedan 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XT Wagon 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XW Wagon 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XY Wagon 165KW
    • 1970 - 1972 > FORD AUSTRALIA > FAIRMONT > Petrol Engine 4.9 V8 302ci XY Sedan 165KW
    • 1979 - 1982 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XD Ute 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XT Sedan 157KW
    • 1969 - 1970 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XW Sedan 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Sedan 164KW
    • 1969 - 1970 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XW Ute 164KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Ute 164KW
    • 1979 - 1982 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XD Wagon Van 140KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 GT (XT) XT Sedan 171KW
    • 1968 - 1969 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XT Ute 157KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Wagon 164KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Coupe 151KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Coupe 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Coupe 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Wagon Van 179KW
    • 1973 - 1976 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XB Ute 179KW
    • 1970 - 1972 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XY Wagon Van 164KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Ute 179KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Ute 151KW
    • 1972 - 1973 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XA Wagon Van 179KW
    • 1976 - 1979 > FORD AUSTRALIA > FALCON > Petrol Engine 4.9 V8 302ci XC Wagon Van 151KW
    • 1968 - 1973 > FORD USA > MUSTANG > Petrol Engine 4.1 Convertible 116KW
    • 1968 - 1973 > FORD USA > MUSTANG > Petrol Engine 4.1 Coupe 116KW
    • 1971 - 1971 > FORD USA > MUSTANG > Petrol Engine 4.1 Convertible 106KW
    • 1971 - 1971 > FORD USA > MUSTANG > Petrol Engine 4.1 Coupe 106KW
