Description

Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

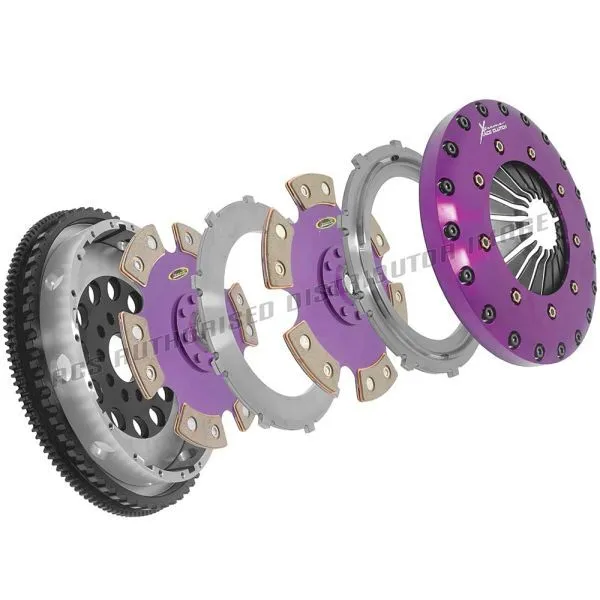

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    22

  • Hub Profile:

    24,5x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KF Hatchback 117KW
    • 1991 - 1993 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KH Hatchback 117KW
    • 1990 - 1992 > MAZDA > FAMILIA > Petrol Engine 1.8 16V Turbo 4WD (BG8S) BG Hatchback 120KW
    • 1993 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 16V Turbo 4WD (BG8S) BG Hatchback 136KW
    • 1992 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 GT-R 4WD (BG8S, BG8Z) BG Hatchback 154KW
    • 1989 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 16V 4WD (BG8S, BG8R, BG8Z) BG Hatchback 132KW

    Xtreme Twin Plate Rigid Solid Ceramic is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Discs
    • Intermediate Plate
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    22

  • Hub Profile:

    24,5x22T

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KF Hatchback 117KW
    • 1991 - 1993 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KH Hatchback 117KW
    • 1990 - 1992 > MAZDA > FAMILIA > Petrol Engine 1.8 16V Turbo 4WD (BG8S) BG Hatchback 120KW
    • 1993 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 16V Turbo 4WD (BG8S) BG Hatchback 136KW
    • 1992 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 GT-R 4WD (BG8S, BG8Z) BG Hatchback 154KW
    • 1989 - 1994 > MAZDA > FAMILIA > Petrol Engine 1.8 16V 4WD (BG8S, BG8R, BG8Z) BG Hatchback 132KW
