Description

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

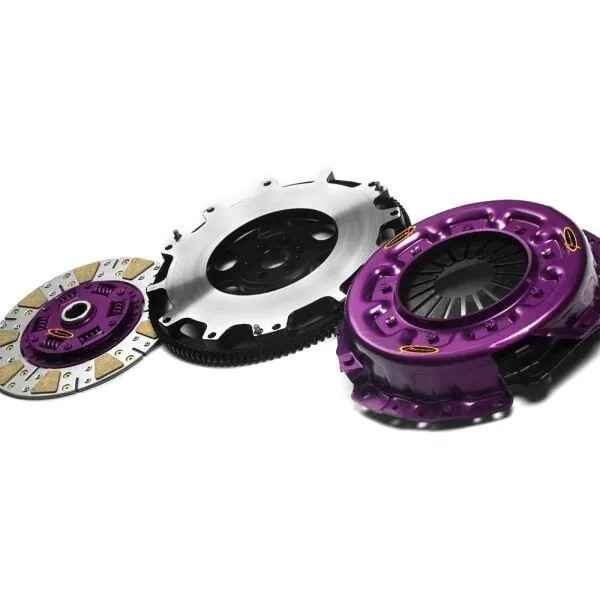

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    25,4x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    790

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VK Coupe 123KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 3.5 VJ Coupe 105KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VJ Coupe 123KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 (E48) VJ Coupe 185KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 770 CL Coupe 123KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 770 CL Coupe 120KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VH Coupe 123KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T VH Coupe 163KW
    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 VK Coupe 151KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 VJ Coupe 151KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 770 CL Coupe 151KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T (E37) VH Coupe 185KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 (E38) VH Coupe 209KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T (E49) VH Coupe 225KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 4.0 Pacer (E31) VG Sedan 138KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 4.0 Pacer (E31) VG Coupe 138KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 4.3 VH Coupe 151KW

    Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    23

  • Hub Profile:

    25,4x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    790

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VK Coupe 123KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 3.5 VJ Coupe 105KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VJ Coupe 123KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 (E48) VJ Coupe 185KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 770 CL Coupe 123KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 770 CL Coupe 120KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.0 VH Coupe 123KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T VH Coupe 163KW
    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 VK Coupe 151KW
    • 1973 - 1975 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 VJ Coupe 151KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 770 CL Coupe 151KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T (E37) VH Coupe 185KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 (E38) VH Coupe 209KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 4.3 R/T (E49) VH Coupe 225KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 4.0 Pacer (E31) VG Sedan 138KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 4.0 Pacer (E31) VG Coupe 138KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 4.3 VH Coupe 151KW
