Description

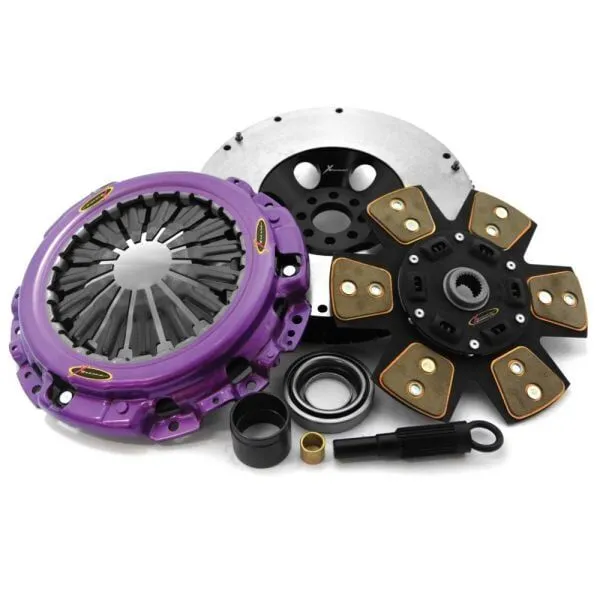

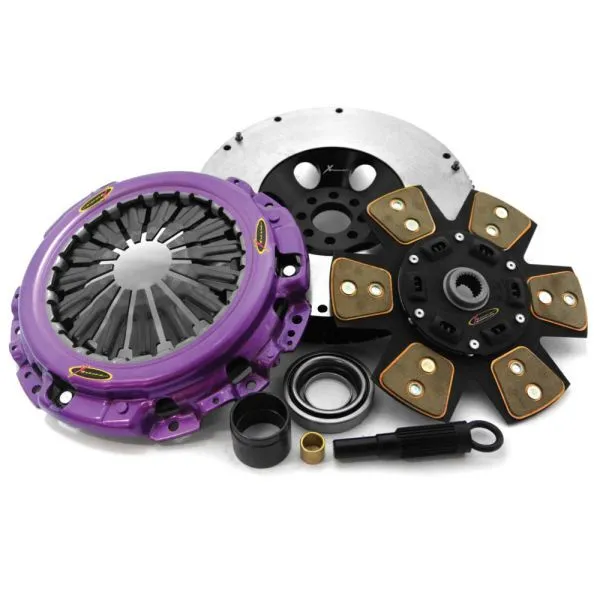

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    23

  • Hub Profile:

    25,4x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    790

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 5.2 VG Sedan 172KW
    • 1976 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Sedan 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Sedan 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Sedan 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Sedan 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT > Petrol Engine 5.2 VK Sedan 172KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 5.2 VG Wagon 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT > Petrol Engine 5.2 VK Wagon 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Wagon 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Wagon 157KW
    • 1976 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Wagon 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Wagon 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Coupe 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Coupe 172KW
    • 1977 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Wagon Van 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 VK Coupe 172KW
    • 1973 - 1974 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.6 770 (E55) VJ Coupe 205KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 CL Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 VH Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.6 770 SE (E55) VH Coupe 205KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    23

  • Hub Profile:

    25,4x23T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Max. transferable engine torque [Nm]:

    790

  • Friction Lining Outer Diameter [mm]:

    255

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Ceramic

    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 5.2 VG Sedan 172KW
    • 1976 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Sedan 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Sedan 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Sedan 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Sedan 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT > Petrol Engine 5.2 VK Sedan 172KW
    • 1970 - 1971 > CHRYSLER > VALIANT > Petrol Engine 5.2 VG Wagon 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT > Petrol Engine 5.2 VK Wagon 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Wagon 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Wagon 157KW
    • 1976 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Wagon 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Wagon 172KW
    • 1973 - 1975 > CHRYSLER > VALIANT > Petrol Engine 5.2 VJ Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT > Petrol Engine 5.2 VH Coupe 172KW
    • 1969 - 1970 > CHRYSLER > VALIANT > Petrol Engine 5.2 VF Coupe 172KW
    • 1977 - 1978 > CHRYSLER > VALIANT > Petrol Engine 5.2 CL Wagon Van 172KW
    • 1975 - 1976 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 VK Coupe 172KW
    • 1973 - 1974 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.6 770 (E55) VJ Coupe 205KW
    • 1976 - 1978 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 CL Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.2 770 VH Coupe 172KW
    • 1971 - 1973 > CHRYSLER > VALIANT CHARGER > Petrol Engine 5.6 770 SE (E55) VH Coupe 205KW
