Description

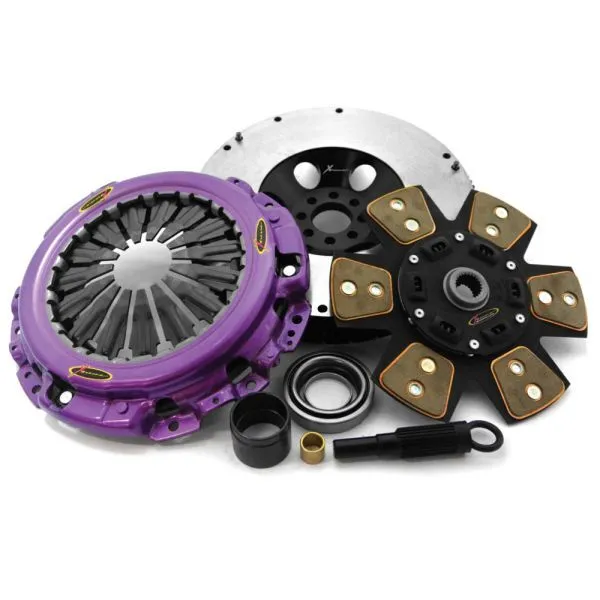

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    18

  • Hub Profile:

    20,8x18T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 2001 - 2005 > CITROËN > XSARA > Petrol Engine 1.6 16V N1,N7 Hatchback 80KW
    • 2001 - 2005 > CITROËN > XSARA > Petrol Engine 1.6 16V N0,N7 Coupe 80KW
    • 2003 - 2005 > CITROËN > BERLINGO > Petrol Engine 1.4 i bivalent (MBKFW) M_ Box Body/MPV 55KW
    • 2003 - 2008 > CITROËN > BERLINGO > Petrol Engine 1.4 i bivalent (MFKFW) MF_,GJK_,GFK_ MPV 55KW
    • 1999 - 2003 > CITROËN > BERLINGO > Petrol Engine 1.4 i (MBKFX, MBKFW) M_ Box Body/MPV 55KW
    • 1999 - 2003 > CITROËN > BERLINGO > Petrol Engine 1.4 i (MFKFX, MFKFW, GJKFWB, GJKFWC, GFKFWC) MF_,GJK_,GFK_ MPV 55KW
    • 1996 - 2002 > CITROËN > BERLINGO > Petrol Engine 1.4 BiFuel (MBKFXB, MCKFXB) M_ Box Body/MPV 55KW
    • 1999 - 2008 > CITROËN > BERLINGO > Petrol Engine 1.4 i M_ Box Body/MPV 57KW
    • 1998 - 2007 > PEUGEOT > 206 > Petrol Engine 1.4 i 2A/C Hatchback 55KW
    • 2003 - 2007 > PEUGEOT > 206 > Petrol Engine 1.4 16V 2A/C Hatchback 65KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    18

  • Hub Profile:

    20,8x18T

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    0,5

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 2001 - 2005 > CITROËN > XSARA > Petrol Engine 1.6 16V N1,N7 Hatchback 80KW
    • 2001 - 2005 > CITROËN > XSARA > Petrol Engine 1.6 16V N0,N7 Coupe 80KW
    • 2003 - 2005 > CITROËN > BERLINGO > Petrol Engine 1.4 i bivalent (MBKFW) M_ Box Body/MPV 55KW
    • 2003 - 2008 > CITROËN > BERLINGO > Petrol Engine 1.4 i bivalent (MFKFW) MF_,GJK_,GFK_ MPV 55KW
    • 1999 - 2003 > CITROËN > BERLINGO > Petrol Engine 1.4 i (MBKFX, MBKFW) M_ Box Body/MPV 55KW
    • 1999 - 2003 > CITROËN > BERLINGO > Petrol Engine 1.4 i (MFKFX, MFKFW, GJKFWB, GJKFWC, GFKFWC) MF_,GJK_,GFK_ MPV 55KW
    • 1996 - 2002 > CITROËN > BERLINGO > Petrol Engine 1.4 BiFuel (MBKFXB, MCKFXB) M_ Box Body/MPV 55KW
    • 1999 - 2008 > CITROËN > BERLINGO > Petrol Engine 1.4 i M_ Box Body/MPV 57KW
    • 1998 - 2007 > PEUGEOT > 206 > Petrol Engine 1.4 i 2A/C Hatchback 55KW
    • 2003 - 2007 > PEUGEOT > 206 > Petrol Engine 1.4 16V 2A/C Hatchback 65KW
